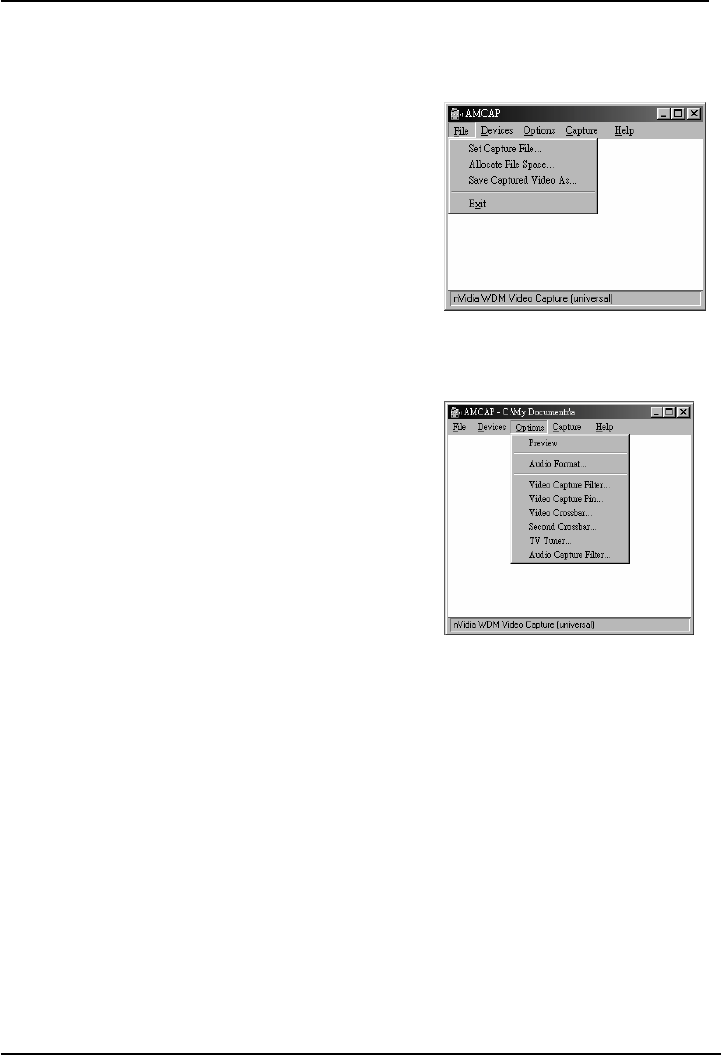

4.4.1 Capture Setting
1. File
A. Set Capture File
Click–on to set the filename of the
captured video file.
B. Allocate File Space
Click–on to set the capture file size, in
MB.
C. Save Captured Video As
Click–on to save a .AVI file using a
different filename.
2. Options
A. Preview
Click –on preview to start.
B. Audio Format
Click –on to select the .AVI
audio-sampling format that is installed
in your system.
C. Video Capture Filter
Video decode to set the optional
‘Video Proc Amp’ you can change the
Brightness, Contrast, Saturation or
Hue by using the various scroll bars
and viewing the effect on your video
monitor.
D. Video Capture Pin
This function is to change the video image size.
E. Video Crossbar
This function is to select the ‘Video Input Source’: ‘Video S-Video In’,
‘Video TV Tuner (Optional)’ or ‘Video Composite In’.
F. TV Tuner (This function is only for product with Tuner)
This function is to select the channel what you want to watch.
