User Manual

Green On Solid Normal
Green Slowly Flashing In charging
Green OFF No charge
Green On Solid Normal
Green Slowly Flashing Full
Green Fast Flashing Over voltage
Orange On Solid Under voltage
Red On Solid Over discharged
Red Flashing
Battery over
temperature
Red On Solid Normal
Red Slowly Flashing Overload
Red Fast Flashing Short circuit

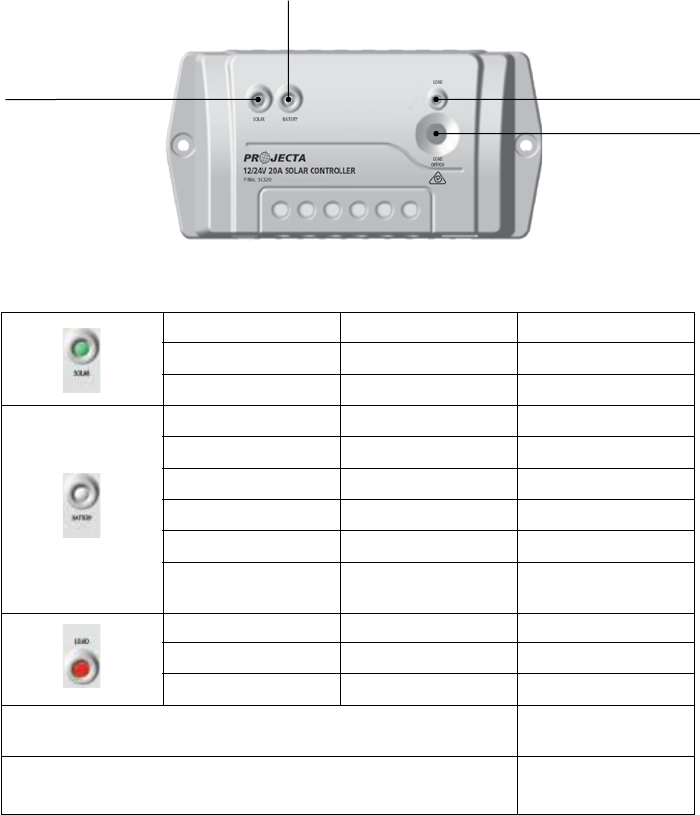

Charging, load and battery indicator System voltage
(red) flashing simultaneously error
Charging, load and battery indicator Controller
(orange) flashing simultaneously overheating
5
Charging status
L.E.D indicator
Load status
L.E.D indicator
Switch button
Battery status
L.E.D indicator
Indicator Status Description
Switch Button Function
1. Manual Control ON/OFF of the load.
2. Resume to normal work after the fault is cleared up.
OPERATION
LED Indicators
