Installation Sheet

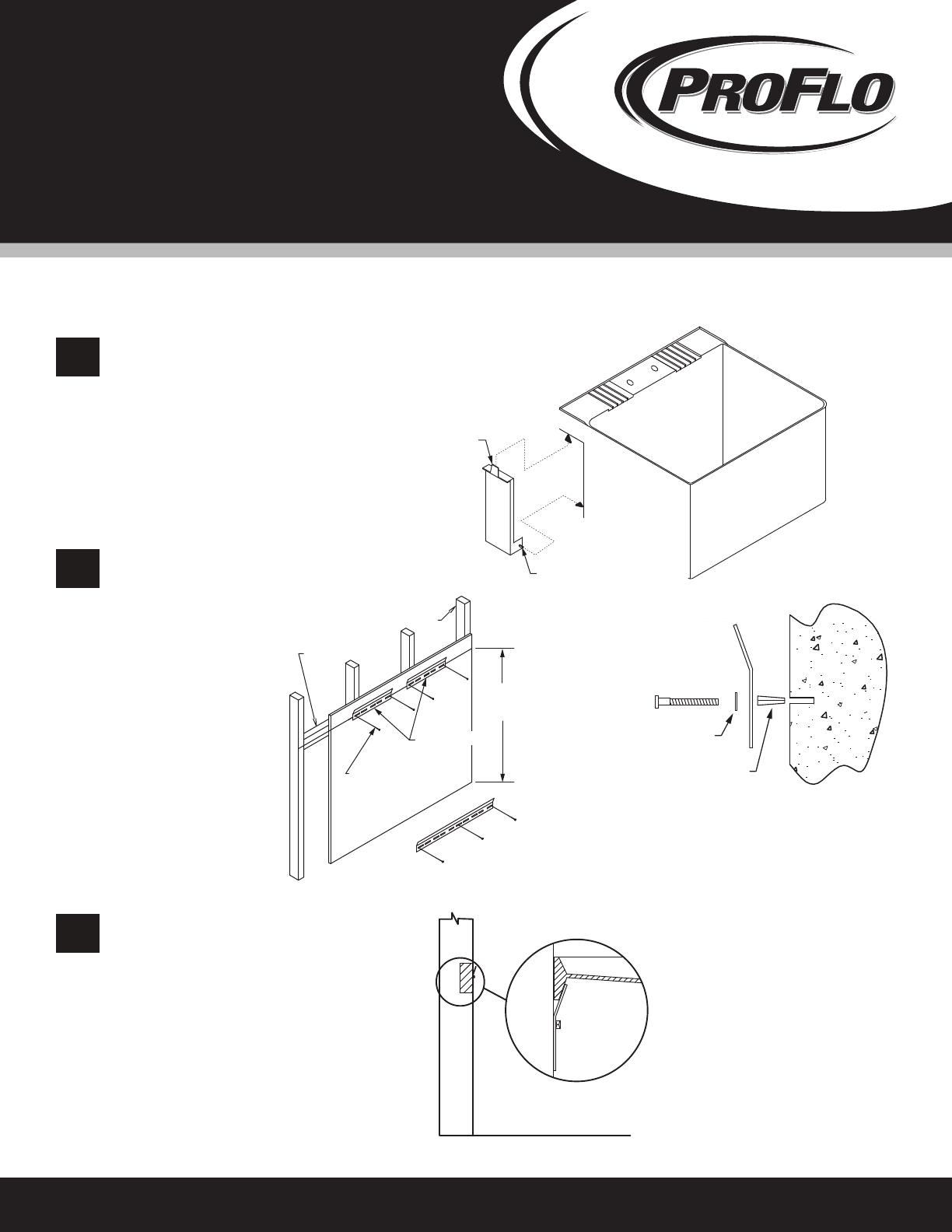

When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
®
INSTRUCCIONES DE INSTALACIÓN
TINAS DE LAVANDERÍA
MODELOS PFLT2123W y PFLT4024W
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 02/12
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
Al montar la tina a la pared con
largueros, instale bloques de
madera para saltar los largueros.
Las unidades de tina sencilla
usan una ménsula colgadora
sencilla y las unidades de tina
doble requieren de dos ménsulas
colgadoras. Sujete la(s) ménsula(s)
de montaje a la pared a 33-1/8””
del piso usando tornillos tirafondo
de 1/4””. Use dos tornillos por
ménsula localizados en los orificios
más exteriores. Asegure que los
tornillos aprieten en los largueros o
los bloques.
Instale la tarja sobre la(s) ménsula(s) de montaje en
pared. Cerciórese de que la tina asiente seguramente
sobre el labio de la(s) ménsula(s) de montaje.
Al sujetar la ménsula de montaje de pared
a una construcción de pared de concreto o
bloques de cemento, barreno orificios con
una broca para concreto y use taquetes
de plomo con tornillos tirafondo de 1/4” y
arandelas planas.
Para garantizar que este producto se instale apropiadamente, lea por favor estas instrucciones cuidadosamente antes de iniciar. (Algunas
instalaciones pueden requerir asistencia profesional.) Cerciórese también que su instalación esté de acuerdo a los códigos locales.
Barrene un orificio en el panel de relleno de plástico en
la parte posterior de revestimiento de la tina e inserte la
lengüeta (A) en la ranura bajo el borde. Oprima el gancho
de anclaje (B) en el orificio en el revestimiento de la tina.
Repita para el panel opuesto.
NOTA: Cada panel de relleno está marcado L o R (izq. o der.)
y debe instalarse de acuerdo a las marcas.
BLOQUES
LARGUEROS
TORNILLO
TIRAFONDO
MÉNSULA
ARANDELA PLANA
TORNILLO DE ANCLAJE
MÉNSULA DE
MONTAJE DE TINA
SENCILLA
PARA PARED DE CONCRETO
O BLOQUES DE
CEMENTO
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
