Installation Sheet

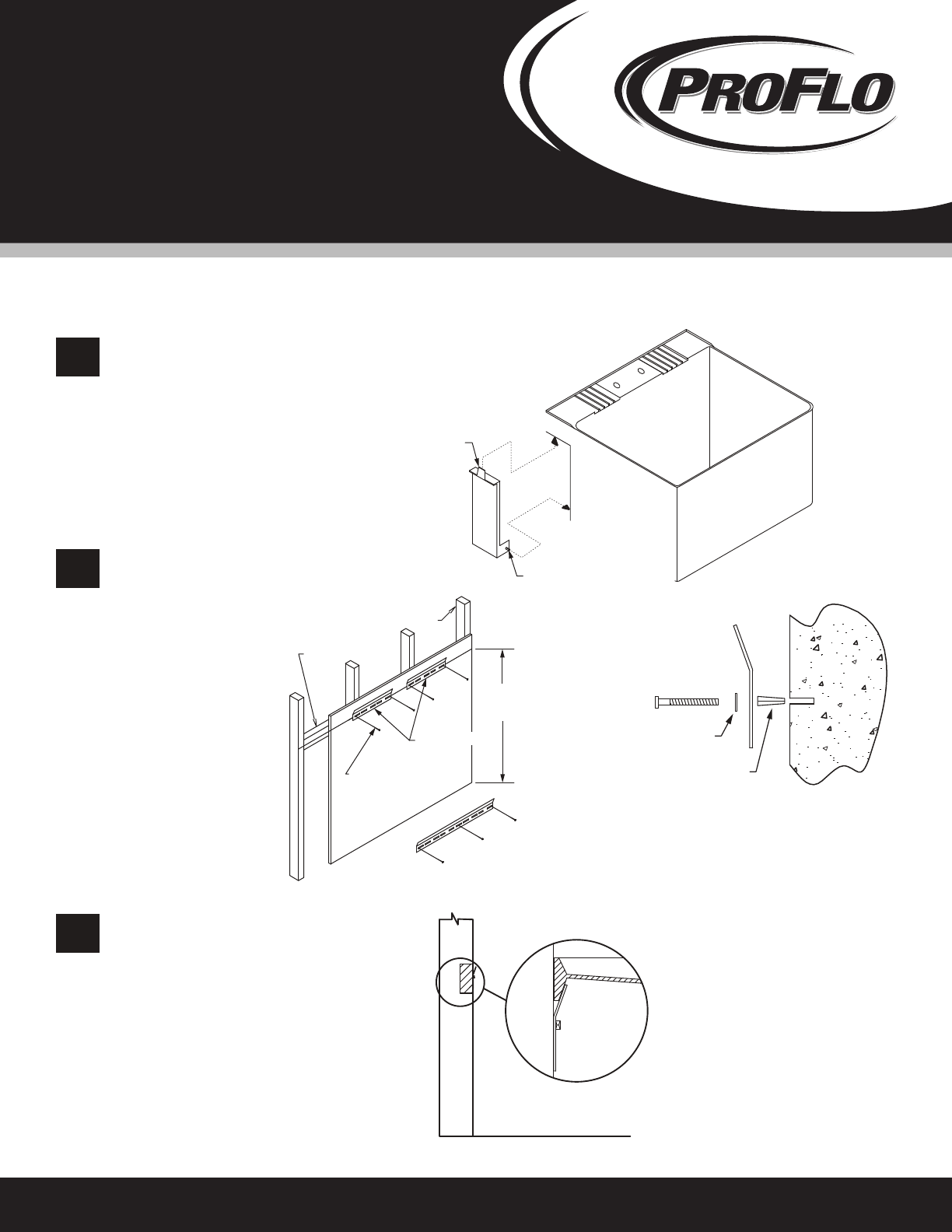

When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
®
INSTRUCTIONS D’INSTALLATION
CUVES À LESSIVE
MODÈLES PFLT2123W et PFLT4024W
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 02/12
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE:
Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
Lorsque la cuve est montée au
poteau de cloison d’un mur, installez
des blocs de bois pour combler
les poteaux de cloison. Les unités
à cuve simple nécessitent un seul
crochet de support et les unités
à cuve double nécessitent deux
crochets de support. Fixez le(s)
support(s) de montage au mur, à
33-1/8 po du plancher à l’aide de
vis à bois à tête carrée de 1/4 po.
Utilisez deux vis par support placées
dans les trous les plus à l’extérieur.
Assurez-vous que les vis pénètrent
les poteaux de cloison ou les blocs.
Installez le lavabo sur le(s) support(s) de montage mural
/ muraux. Assurez-vous que la cuve repose bien en place
sur le rebord du / des support(s) de montage.
Lorsque le support de montage mural est
fixé à une construction murale en béton ou
en blocs de béton, percez des trous avec un
foret de maçonnerie et utilisez des ancrages
alliés au plomb avec des vis à bois à tête
carrée de 1/4 po et des rondelles plates.
Afin de s’assurer que ce produit est correctement installé, veuillez attentivement ces instructions avant de commencer. (Certaines installations
peuvent exiger de l’aide professionnelle.) Assurez-vous également que votre installation st conforme aux codes locaux.
Percez un trou dans le panneau de remplissage en plastique
à l’arrière de la jupe de la cuve et insérez la patte (a) dans la
fente sous le rebord. Poussez la barbe d’ancrage (B) dans le
trou dans la jupe de la cuve. Répétez pour le panneau opposé.
REMARQUE : Chaque panneau de remplissage est marqué L
(gauche) ou R (droit) et devrait être installé en conséquence.
BLOC
CHEVRON
VIS À BOIS À
TÊTE CARRÉE
SUPPORT
RONDELLE PLATE
PIÈCE D’ANCRAGE À VIS
SUPPORT DE
MONTAGE POUR
CUVE SIMPLE
POUR MUR EN BÉTON OU EN
BLOCS DE BÉTON
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
