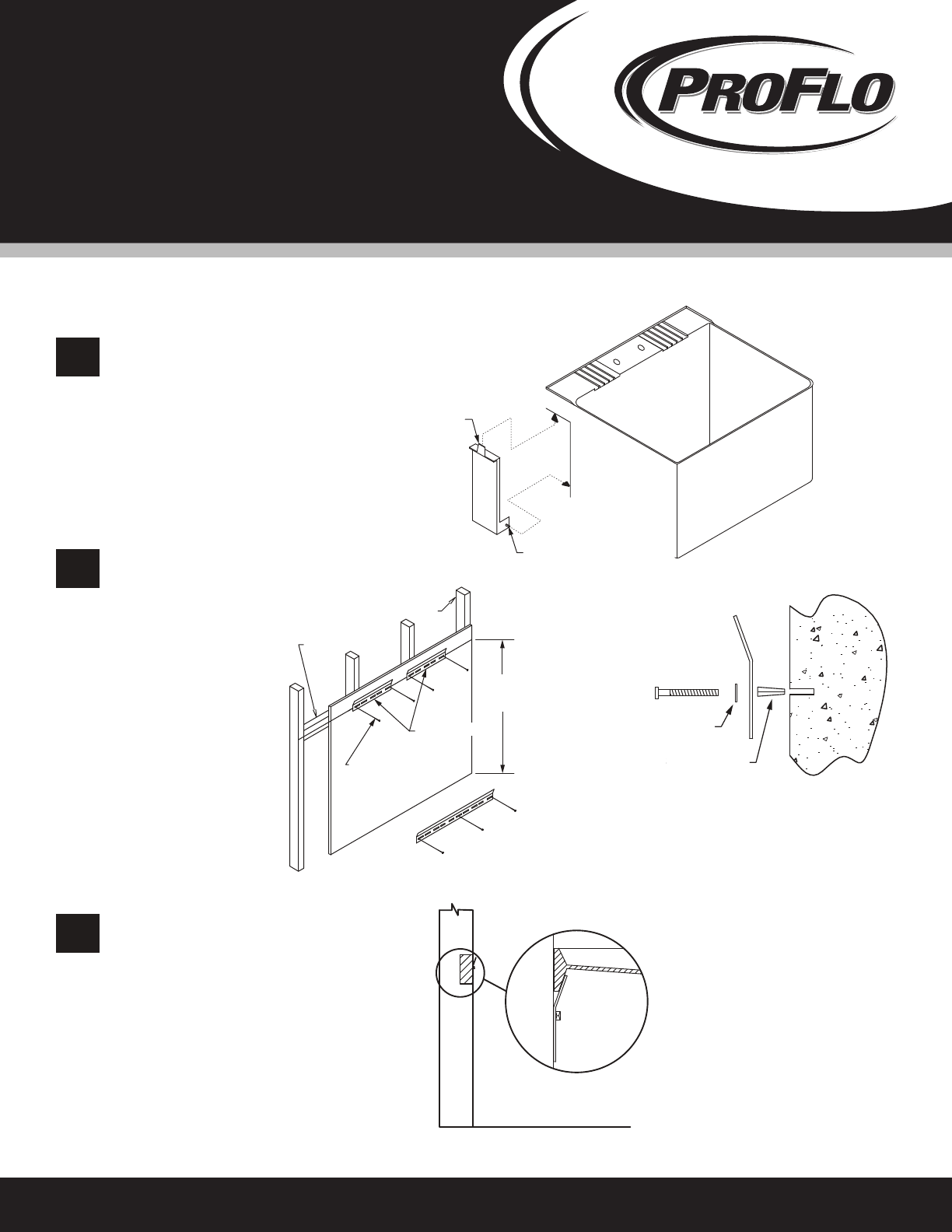

Installation Sheet

When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be su
re your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
®
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 02/12
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE:
Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
When mounting tub to stud wall,
install wood blocking to bridge
the studs.
Single tub units use a single
hanger bracket and double tub
units require two hanger
brackets. Fasten mounting
bracket(s) to wall 33-1/8" from
floor using 1/4" lag screws. Use
two screws per bracket located
in the outermost holes.
Ensure screws drive into studs
or blocking.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
B
A
1
3
2
BLOCKING
STUDDING
LAG
SCREW
SINGLE TUB
MOUNT BRACKET
33-1/8"
(841mm)
BRACKET
When fastening wall mounting bracket to concrete
or cement block wall construction, drill holes with a
masonry bit and use lead alloy screw anchors with
1/4" lag screws and flat washers.
FLAT WASHER
SCREW ANCHOR
FOR CONCRETE OR CEMENT
BLOCK WALL:
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Distributed Exclusively by Ferguson and Wolseley Canada
© 2012 Ferguson Enterprises, Inc. All Rights Reserved 10643 01/12
Installation Instructions
Laundry Tubs
Models PFLT2123W & PFLT4024W
®
When mounting tub to stud
wall, install wood blocking
to bridge the studs.
Single tub units use a single
hanger bracket and
double tub units require two
hanger brackets. Fasten
mounting bracket(s) to wall
33-1/8” from floor using
1/4” lag screws. Use
two screws per bracket
located in the outermost
holes. Ensure screws drive
into studs or blocking.
Install sink over wall mounting bracket(s). Make sure tub
is seated securely on the lip of the mounting bracket(s).
When fastening wall mounting bracket to
concrete or cement block wall construction,
drill holes with a masonry bit and use lead
alloy screw anchors with 1/4” lag screws and
flat washers.
To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
Drill out plastic filler panel hole on the back of the
tub skirt and insert tab (A) into slot under rim. Push
anchoring barb (B) into hole in tub skirt. Repeat for
opposite panel.
NOTE: Each filler panel is marked L or R and
should be installed accordingly.
BLOCKING
STUDDING
LAG SCREW
BRACKET
FLAT WASHER
SCREW ANCHOR
SINGLE TUB
MOUNT BRACKET
FOR CONCRETE OR CEMENT
BLOCK WALL
