6.2. AP Client Mode
Wireless LANAP
Host
Host
Host
Host
Host
Ethernet A
Adaptor
Adaptor
AP Client
Ethernet B
Host
Host
Host
Host
Host
Wireless LANAP
Host
Host
Host
Host
Host
Ethernet A
Adaptor
Adaptor
AP Client
Ethernet B
Host
Host
Host
Host
Host

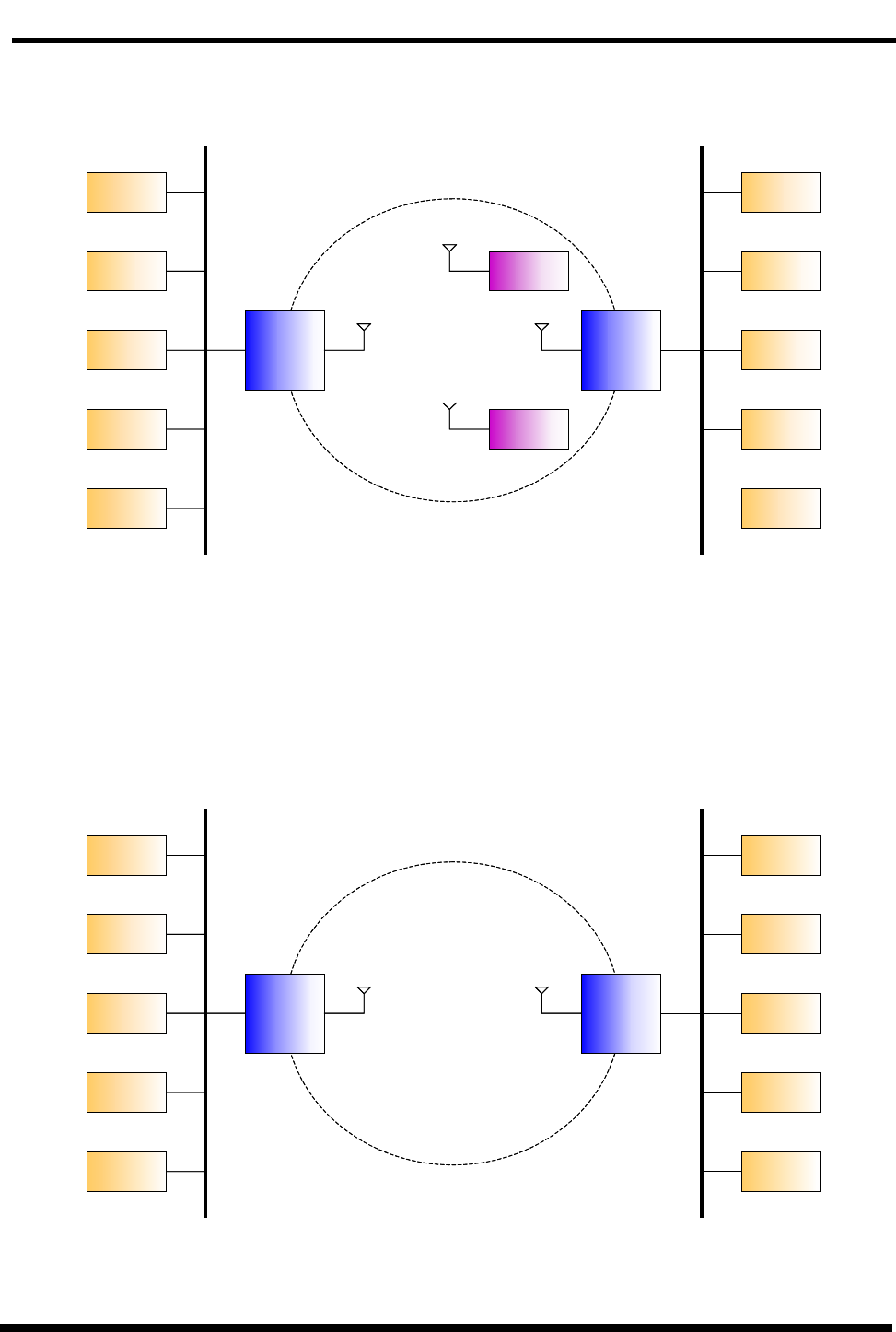

AP Client can connect to the AP like an adaptor. The figure shows that Ethernet B is
connected to Ethernet A. Adaptors still could connect to the AP that the AP Client has
connected to.
6.3. AP Bridge Mode
Wireless BridgeBridge A
Host
Host
Host
Host
Host
Ethernet A
Bridge B
Ethernet B
Host
Host
Host
Host
Host
Wireless BridgeBridge A
Host
Host
Host
Host
Host
Ethernet A
Bridge B
Ethernet B
Host
Host
Host
Host
Host
Different from the AP Client mode to bridge mode, no adapters could connect to any bridge
