ASSEMBLY INSTRUCTIONS

Strut Tubes

1. Loosen tube clamps. Insert lower strut tubes up through the

bottom of the tube clamps. Leave tube clamps whilst you

prepare the other parts.

2. Attach lower strut tubes to the safety-lock bracket with the

attached 1/4 x 1 1/2" cap screw & nylon lock nut. Tighten when

assembly is complete.

3. Slide the upper strut tubes down over the lower strut tubes and

through the tube clamps. Position so the leg bands are just

above the large portion of the leg calves.

Note: Do not bend the leg bands.

4. Evenly tighten the tube clamps to prevent the upper strut tube

from rotating when used. Over tightening the tubes could

permanently deform them and require their replacement.

5. Position the tube clamps in the clamp bracket slots, according

to your calf size, so the stilts will stand straight when mounted,

and tighten well.

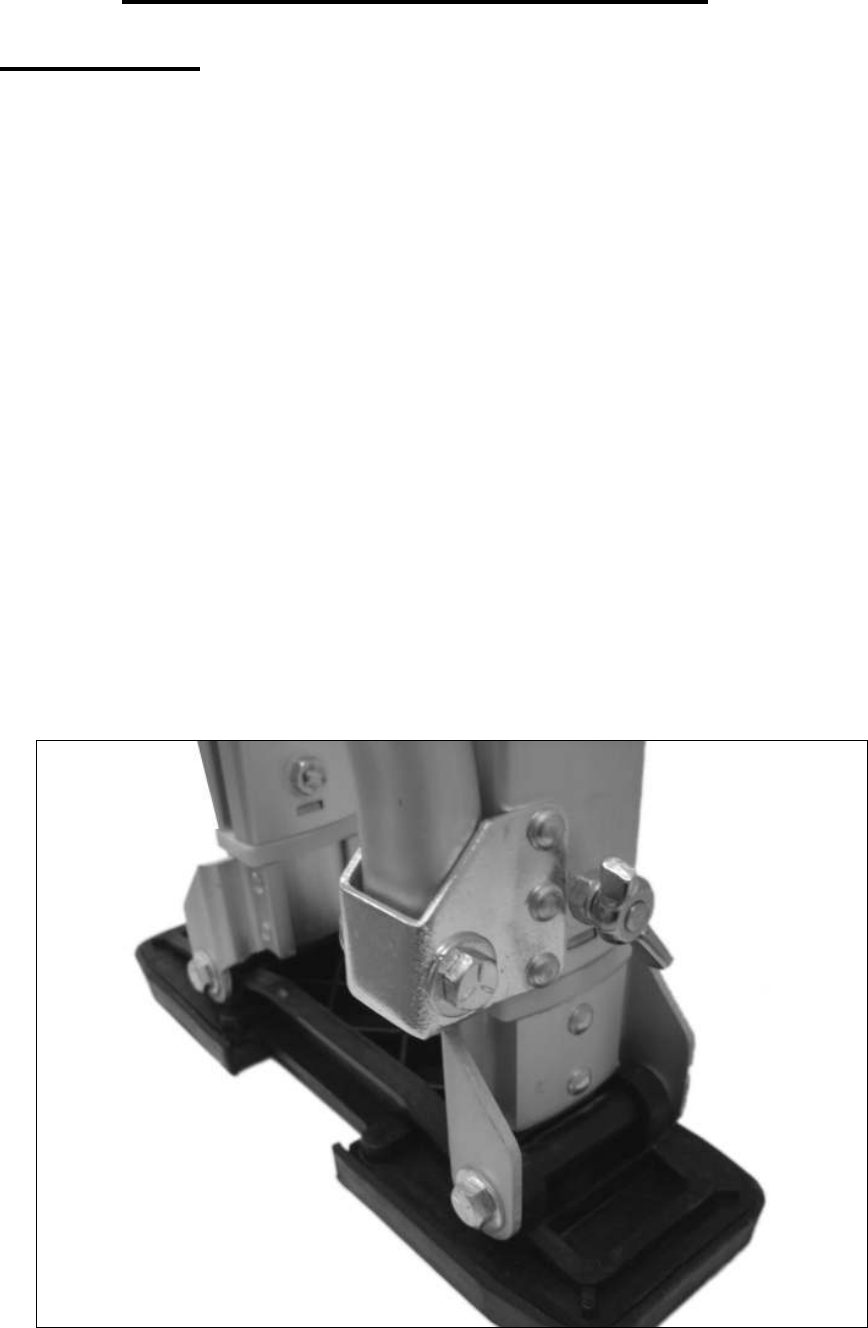

Attach the heel brackets to the footplates using the No. 10 x 1

/2 Phillips machine screws and nuts. Adjust the heel bracket so

your outside ankle bone is directly over the rear pivot bolt and

tighten well.
