CD Color Printer II User's Manual

Interfacing Information 47

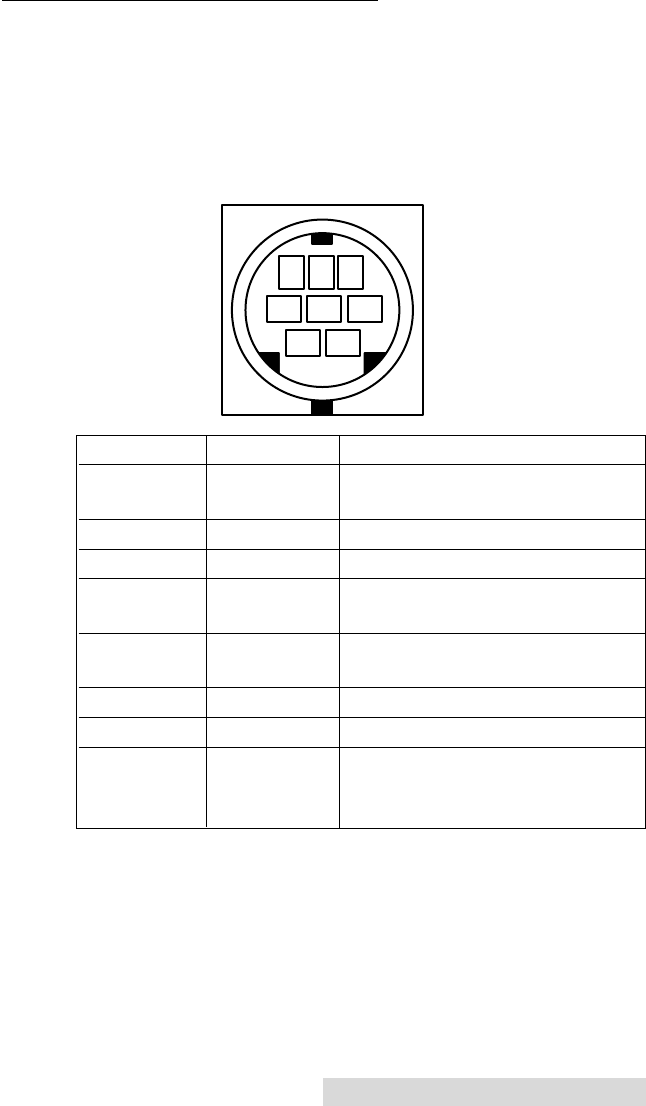

C. MINI 8-PIN SERIAL INTERFACE
The mini 8-pin serial interface connector is the standard
interface used by Macintosh. The printerÕs serial port mates
with a standard computer to printer serial cable. For best
results, always use a high-quality serial cable which is less than
6 feet in length.
Pin assignments are as follows:
Pin Number Signal Name Signal Description
1 HSKo External Clock Output
± 2V < Vout < ± 3.6V; Rout < 450½
2 HSKi Not Connected
3 TxD- Not Connected
4 GND Signal ground. Connected to
logic and chassis ground.
5 RxD- Receive data (inverted);Vih = 0.2V;
Vil = -0.2V; Rin > 12K½
6 TxD+ Not Connected
7 GPi Not Connected
8 RxD+
Receive data. Received uninverted
at SCCÕs RxD. Vih = 0.2V;
Vil = -0.2V; Rin > 12K½
TABLE A-2: Serial Interface Pin Assignments
8 7 6
5
4
3
21
