BEST BOY
®
WASH LUMINAIRE USER MANUAL 61
CAUTION: Allow lamp to cool before servicing.
Step 5. (Optional) Lamp alignment can be double-checked and/or adjusted by measuring the distance of the lamp
plate from the rear door.
a. First, open the lamp access door (refer to "Replacing Lamp" on page 58).
b. Then use a telescoping gauge tool to measure the distance at three places. These should all be 0.413"
as shown in Figure 4-4. Adjust the lamp plate as necessary using the three lamp adjustment screws.
c. When finished, close lamp access door.

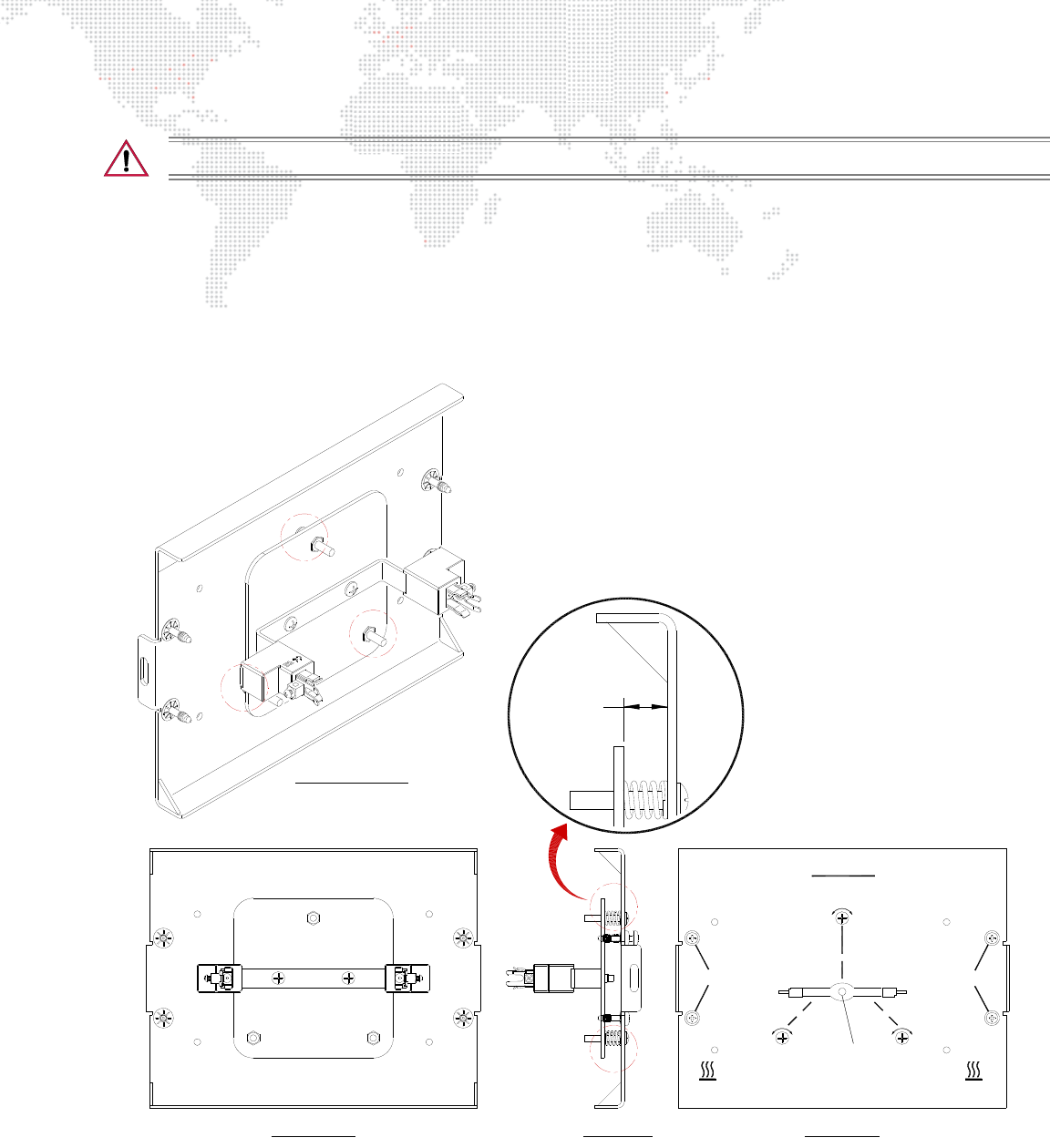

Figure 4-4: Measuring Lamp Alignment Position
FRONT VIEW REAR VIEWSIDE VIEW
ISOMETRIC VIEW
0.388" TYP
3 PLACES
DO NOT OPERATE WITHOUT
IN PLACE OR WHEN LENS IS
COMPLETE LAMP ENCLOSURE
DAMAGED.
RISK OF EXPOSURE TO EXCESSIVE
ULTRAVIOLET RADIATION
SOURCE DE RAYONNEMENT UV
FOR 5 MINUTES. DISCONNECT FIXTURE BEFORE RELAMPING OR SERVICING.
NE PAS ENLEVER L’ECRAN DE
PROTECTION
DANGER: INTENSE HEAT. AVOID CONTACT BY PERSONS AND MATERIALS
COUPER L’ALIMENTATION AVANT LE DEPANNAGE
INSTALL LAMP NIPPLE TOWARD REAR OF FIXTURE.
RISK OF FIRE: USE WITH MAX
1500 WATT LAMP. USE ONLY A
HIGH-PRESSURE LAMP OF DOUBLE-ENDED
TYPE HTI 1500W METAL HALIDE.
DANGER: CHALEUR INTENSE. EVITER TOUT CONTACT ET TENIR TOUTE
MATIERE A L’ECART
WARNING: RISK OF POSSIBLE LAMP EXPLOSION. ALLOW HOUSING TO COOL
ATTENTION: UTILISER UNE
LAMPE 1500 WATTS DOUBLE-CLOS
TYPE HTI METAL HALIDE.
LAMP ADJUST
LAMP ADJUST LAMP ADJUST
LOOSEN FOR
LAMP ACCESS
LOOSEN FOR
LAMP ACCESS
CAUTION
