TESTING
Test Screen
The Test menu provides options for using the luminaire’s self-test features.
+ Recalibrate - press to bring up Recalibration Screen. (During
recalibration, intensity goes out until all mechanism calibrations are
complete and back in position, then fades in.)
+ Recal All - press to bring up Recalibrate All Yes/No options.
+ Mech Test - press to bring up Mechanical Tests Screen. (See
"Mechanical Tests" on page 53 for more explanation.)
+ Group Test - press to bring up Group Tests screen, which allows
multiple luminaires to be run through a configurable test sequence
when chained together via DMX512 or Ethernet. (See "Group Tests"
on page 54 for more explanation.)
+ Disable - press to bring up Disable Screen, which allows specific mechanisms to be disabled during testing.
+ Clean Lenses - press to bring up Cleaning Lenses screen. This feature will position lenses so that all surfaces
may be cleaned with a cloth. (Note that pressing the buttons does not actually clean the lenses.)

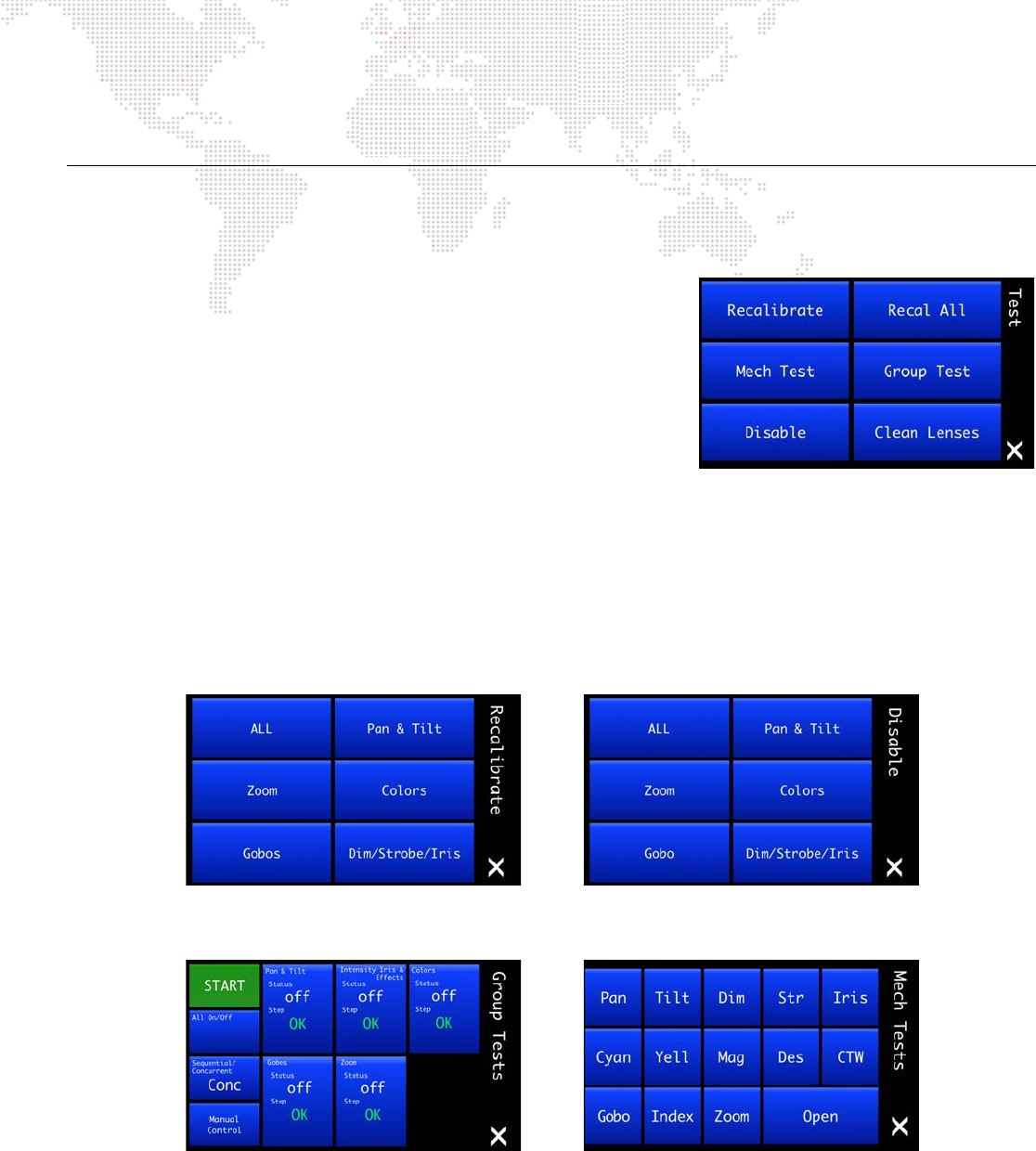

Test Sub-Menu Screens
Test Screen
Disable Screen - Specifies mechanisms
to be excluded from tests.
Mechanical Tests Screen - Specifies
mechanisms to be tested.
Recalibrate Screens - Specifies a
specific mechanism for recalibration.
Group Tests Screen - Allows multiple
luminaires to be tested when daisy-
chained together.
