BEST BOY
®
WASH LUMINAIRE USER MANUAL 19
Standing Position
The Best Boy Wash Luminaire can also be used in a standing position. Be sure that the floor or stage will
accommodate the load of this moving luminaire.
To install in a standing position:
Step 1. Unpack case as shown in Figure 2-2 on page 13, but do not remove hanging brackets. (These are not used
for standing installations.)
Step 2. Carefully remove luminaire from case and place in standing position.
Step 3. Connect power and data cables according to "Connecting Power and Data" on page 20.

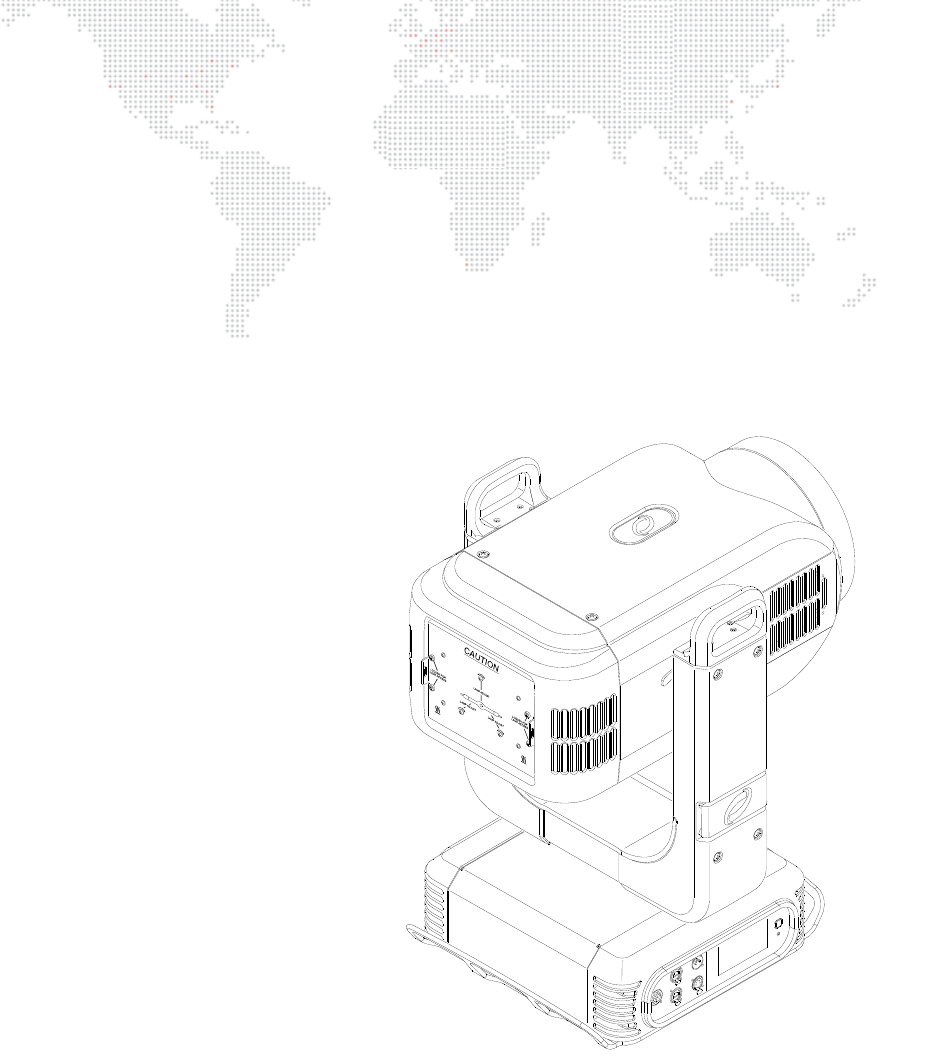

Figure 2-9: Standing Position
