Environmental:
Size: 57mm (L) x 17mm (W) x 105mm (H)
Operating temperature: -20°C to +75°C
Humidity: 90% non-condensing
Weight: 145gr. (5 ounces)
System test configuration
SAT
The unit tested was configured with all hardware options present. Since the unit, under its
normal operation, does not transmit data periodically, for emissions measurements, the SAT
was programmed with special test software to transmit packets continuously at 17dBm output
power, duty cycle (67.7%) with power amplifier enabled for FCC test requirement only.
Normal operation duty cycle, assuming worst case, one event per second is less than
0.5% (5mSec transmit time per 1 second).
Tag wearing

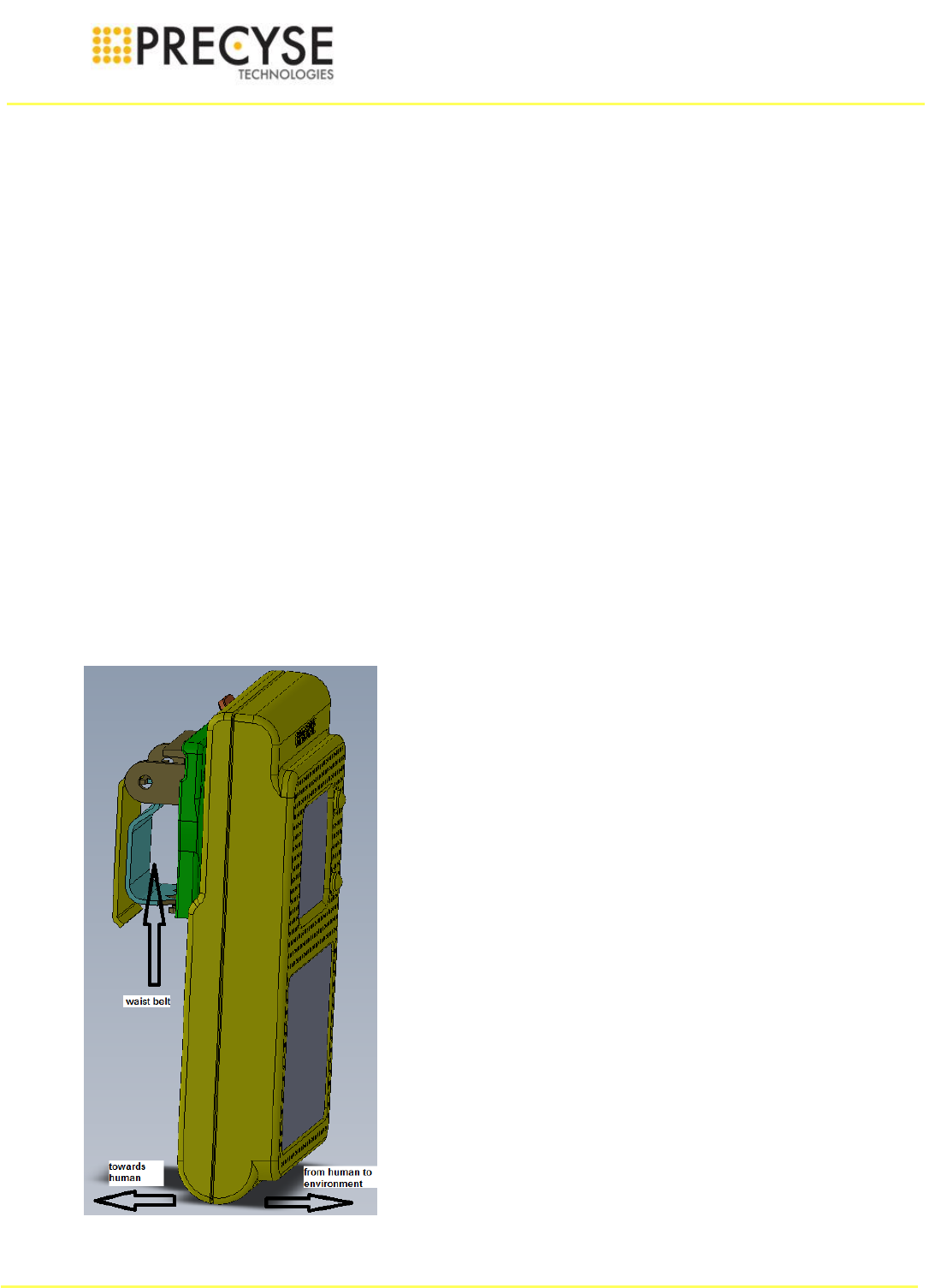

Badge Tag V2 should be worn on the waist belt with crocodile clip as shown in picture below.
