Manual

Model 4069 ProfileIR
TM
User Manual Maintenance
Research, Inc. 27

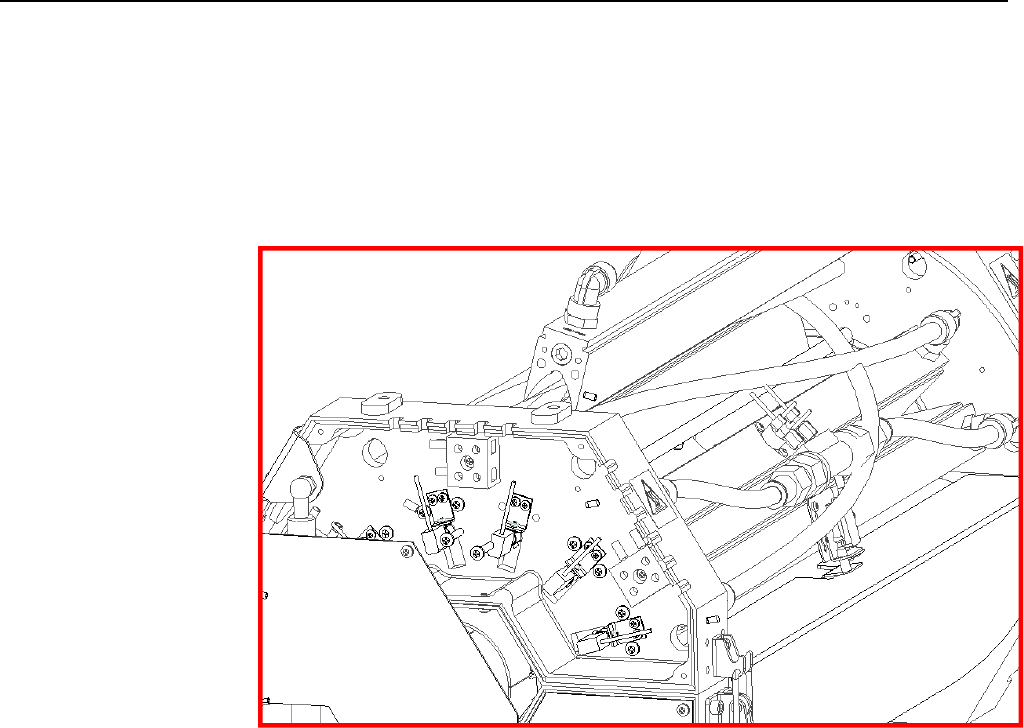

Figure 11
3. Disconnect the cooling line from the reflector to be maintained.
4. Loosen all screw from all reflectors on one side of the end casting of the
reflector to be maintained.
5. Remove the reflector mounting screws from the end casting of the reflector
to be maintained.
6. Remove the reflector.
