Use and Care Manual

– 7 –

Model PF54 Parts -Squeegee Assembly

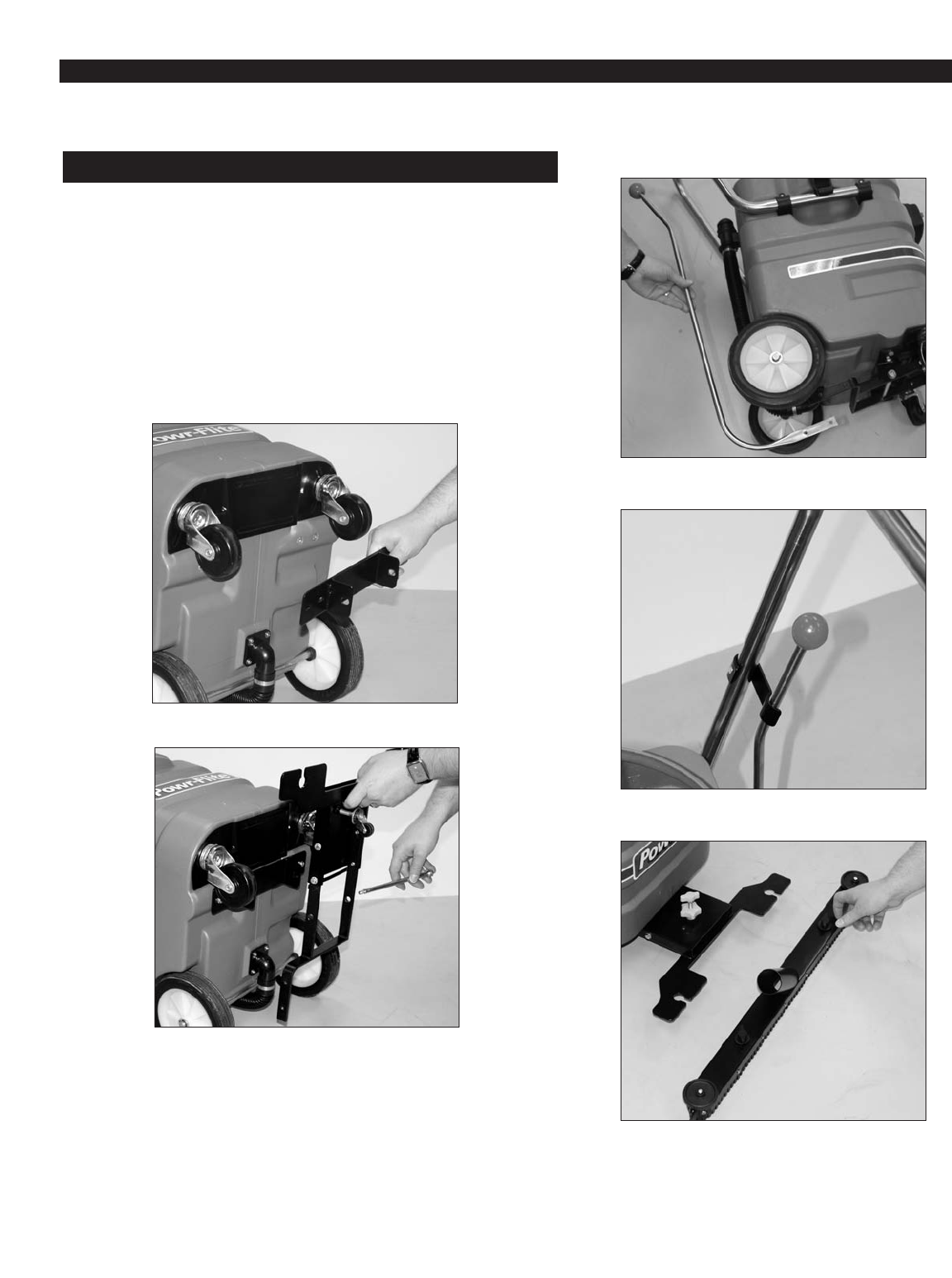

Installing Instructions - FM100H

. Remove vacuum head and filters from the vacuum.

. Install axle mounting plate to bottom of unit.

ee fig 1

3. Attach handle bracket to squeegee bracket.

4. Attach squeegee bracket to the axle bracket. See fig 2

5. Attach handle to handle bracket. See fig 3

6. Attach handle holder to machine handle. See fig 4

7. Attach squeegee to squeegee bracket. See fig 5

8. Adjust compensating wheel as necessary.

FRONT MOUNT SQUEEGEE INSTRUCTIONS

❶

❷

❸

❹

❺
