PCBA Connectors Wideband Radio Head
044-05251 Rev A 2-5
BA PCBA
Table 2-5 lists the connections for the BA PCBA.
Table 2-5 BA PCBA Connections
DIA PCBA
Figure 2-5 illustrates and Table 2-6 lists the connections on the DIA PCBA.

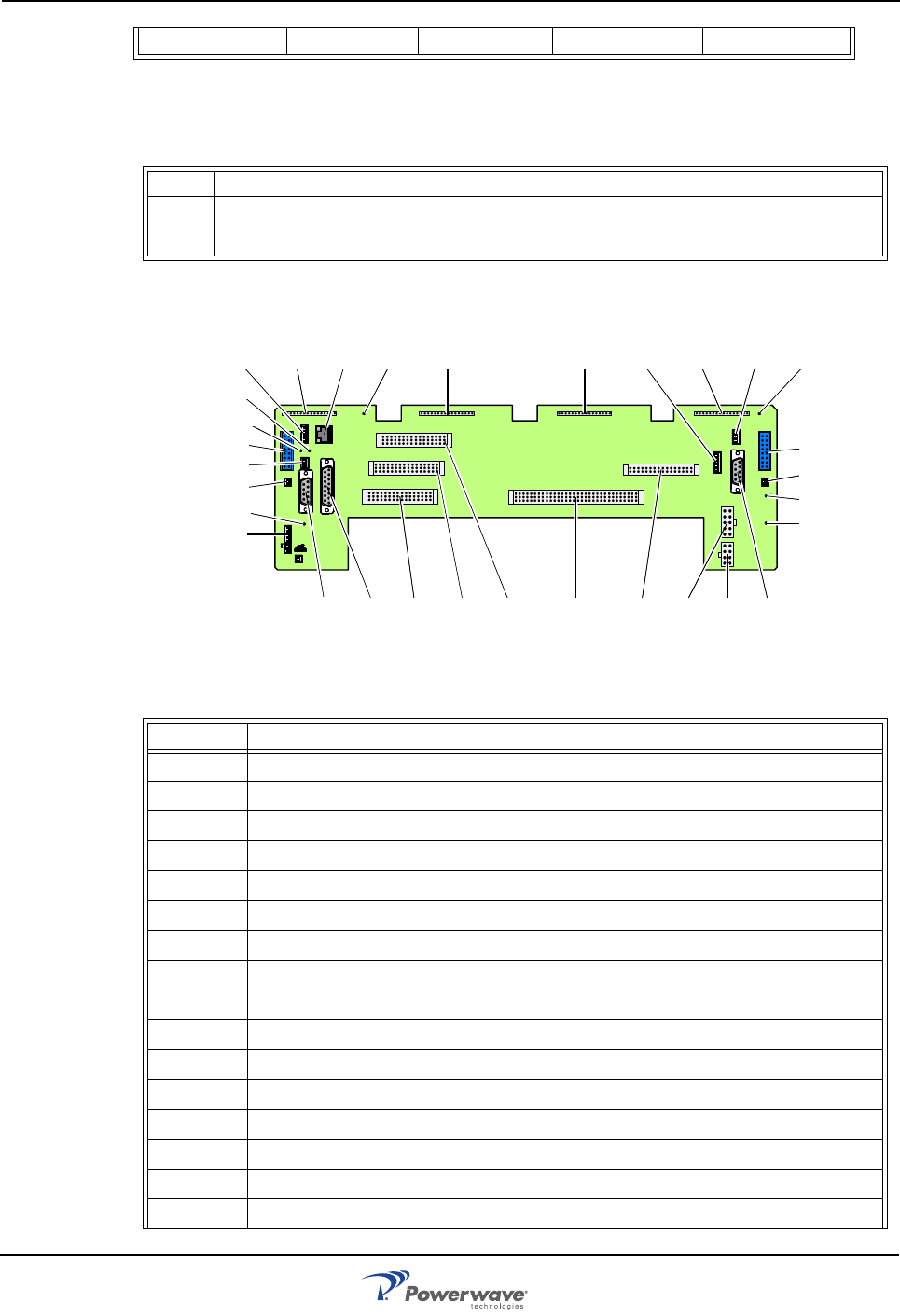

Figure 2-5 DIA PCBA Connectors and Testpoints
Table 2-6 DIA PCBA Connections
DX UL2 C (D) M FON P101 RG223 Not Used Used
Port Connected to
P3 P5 on the PA/DL PCBA
P4 HI on the service DPX
Port Connected to
P2 CU PCBA
P3, 5, 6 Not Used
P4 ALI or RCI PCBA
P11 - 14 Channel PCBA positions 1 through 4
P21 PSU, connector 1
P22 LED PCBA in cover
P23 LNA/UL
P24 LNA/DL
P25 Expansion output port to cover circuitry. Only in cabinets.
P26 Expansion input port to cover circuitry. Used in equipped high covers.
P27 AUX1
P28 Door switch
P29 Power to FON
P31 PC RS-232
P32 Modem RS-232
P33 External Alarm
