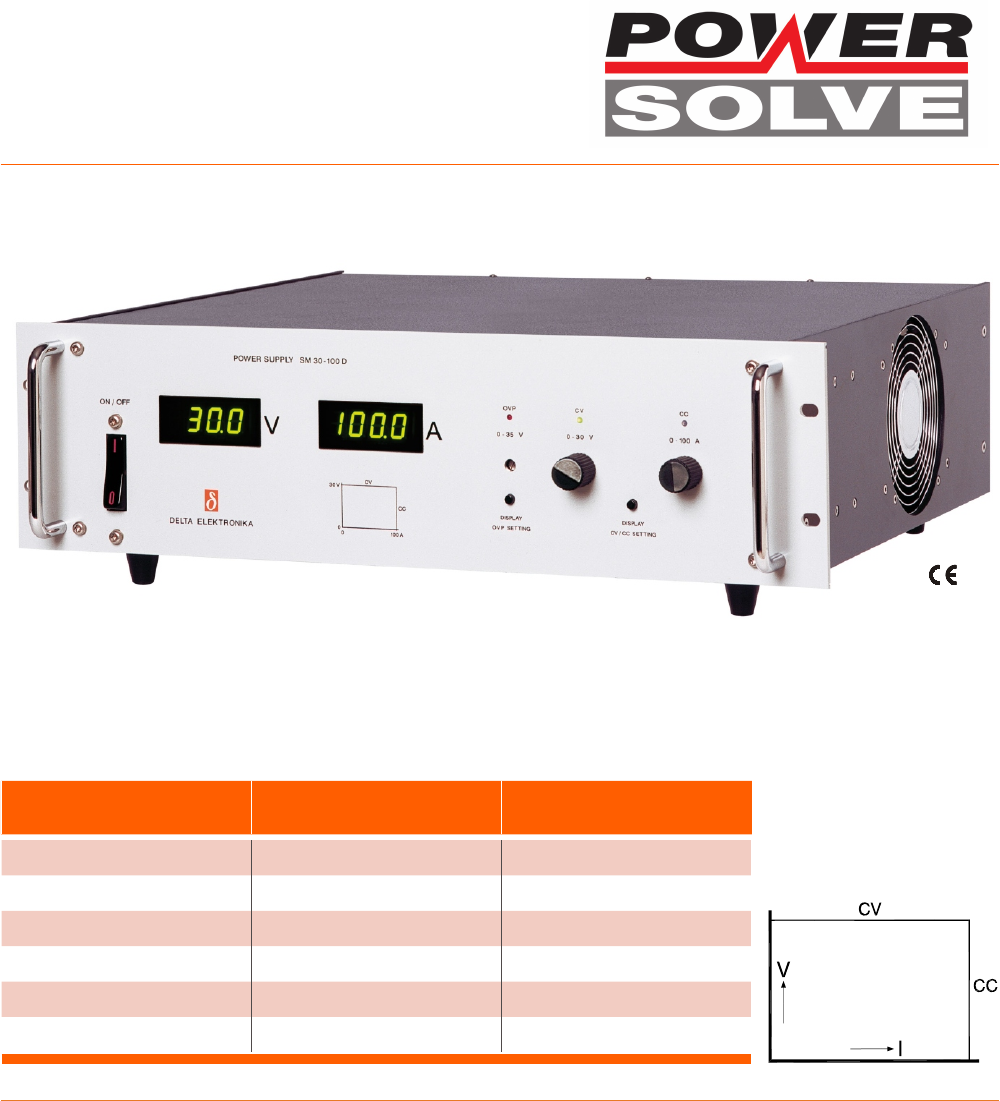

SM 3000 - Se ries 3000 W DC POWER SUP PLIES

nit 8A

Arnhem Road

Newbury. RG14 5RU

Tel: +44 (0) 1635 521858

Fax: +44 (0) 1635 523771

www.powersolve.co.uk

Features Functionalities

• De signed for long life at full power

• Ex cel lent dy namic re sponse to load changes

• Pro tected against all over load and short cir cuit con di tions

• EMC sur passes CE re quire ments:

low emis sion & high im mu nity

• Low au di ble noise: fans are tem per a ture con trolled

• Avail able op tions: High Speed Pro gram ming, In ter faces,

Ex tra Iso la tion, Se quencer, Power Sink etc.

• Mas ter/Slave par al lel and se ries op er a tion with

volt age and cur rent shar ing

• Stack ing is al lowed, space be tween units is not

re quired

• High power sys tem con fig u ra tion from mul ti ple units

• 19" rack mount ing or for lab o ra tory use

(feet in cluded)

• Re mote sens ing

• In ter lock

SM 15-200 D 0 - 15 V 0 - 200 A

SM 30-100 D 0 - 30 V 0 - 100 A

SM 45-70 D 0 - 45 V 0 - 70 A

SM 70-45 D 0 - 70 V 0 - 45 A

SM 120-25 D 0 - 120 V 0 - 25 A

SM 300-10 D 0 - 300 V 0 - 10 A

Three phase input

Mod els

Volt age range

Cur rent range

Summary of content (6 pages)

PAGE 1
Unit 8A Arnhem Road Newbury. RG14 5RU Tel: +44 (0) 1635 521858 Fax: +44 (0) 1635 523771 www.powersolve.co.
PAGE 2
SM3000 SM 15-200 D SM 30-100 D SM 45-70 D SM 70-45 D SM 120-25 D SM 300-10 D Output voltage current 0 - 15 V 0 - 200 A 0 - 30 V 0 - 100 A 0 - 45 V 0 - 70 A 0 - 70 V 0 - 45 A 0 - 120 V 0 - 25 A 0 - 300 V 0 - 10 A 342 - 457 V 342 - 457 V 342 - 457 V 342 - 457 V 342 - 457 V 342 - 457 V current (400 V AC / 3 phase ) 5.7 Arms 5.5 Arms 5.8 Arms 5.8 Arms 5.5 Arms 5.5 Arms power factor (380 V / 3 phase) 100% load 50% load 0.88 0.78 0.88 0.78 0.88 0.78 0.88 0.78 0.88 0.78 0.88 0.
PAGE 3
SM3000 Programming speed Standard Version SM 15-200 D SM 30-100 D SM 45-70 D SM 70-45 D SM 120-25 D SM 300-10 D (resistive load) Rise time (10 - 90%) output voltage step time, (100 % load) time, (10 % load) 0 → 15 V 7 ms 7 ms 0 → 30 V 7 ms 7 ms 0 → 45 V 7 ms 7 ms 0 → 70 V 7 ms 7 ms 0 → 120 V 7 ms 7 ms 0 → 300 V 7 ms 7 ms Fall time (90 - 10%) output voltage step time, (100 % load) time, (10 % load) 15 → 0 V 7 ms 32 ms 30 → 0 V 7 ms 58 ms 45 → 0 V 8 ms 29 ms 70 → 0 V 8 ms 82 ms 120 → 0 V 7
PAGE 4
SM3000 Hold-Up time 100% load 50% load 6 ms 15 ms Vin = 3x 380 V AC Vin = 3x 380 V AC Turn on delay after mains switch on 300 ms 5.8 A @ 400 V AC input Inrush current Phase loss The power supply will continue to operate on one phase but at 90% of Vout(max) (a SM30-100D adjusted at 27 V will continue to deliver 27 V after phase loss) SM 15-200 D SM 30-100 D SM 45-70 D SM 70-45 D 600 V yes 600 V yes 600 V yes 600 V yes 600 V yes no limit max. 4 units no limit max. 4 units no limit max.
PAGE 5
SM3000 Typical Applications • • • • Solar inverter testing, PV-Simulation Plasma chambers Hybrid Car test systems ATE in industrial production lines • Automotive battery simulations • Controlled battery (dis)charging • Lasers • Driving PWM-controlled DC-motors • Accurate current sources • Aerospace and military equipment Available Options Increased Output Power High speed programming Two-Quadrant Output: Power sink The conservatively rated unit allows to deliver extra output with the same reliabilit
PAGE 6
SM3000 CV= Constant Voltage CC=Constant Current OVP=Over Voltage Protector OVL=Over Voltage Limit (Protection) Specifications measured at tamb = 25 ± 5 °C and Vin = 3x 380 V AC, 50 Hz unless otherwise noted. Connections programming connector Analog Programming (standard ) or Ethernet or RS232 or IEEE488 or CANBUS or PROFIBUS or isolated analog (all optional) No Line Cord supplied Output Terminals Input Connector L1 L2 L3 Progr.
