Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom

Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771

www.powersolve.co.uk sales@powersolve.co.uk

p.1/5 03.12B

(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

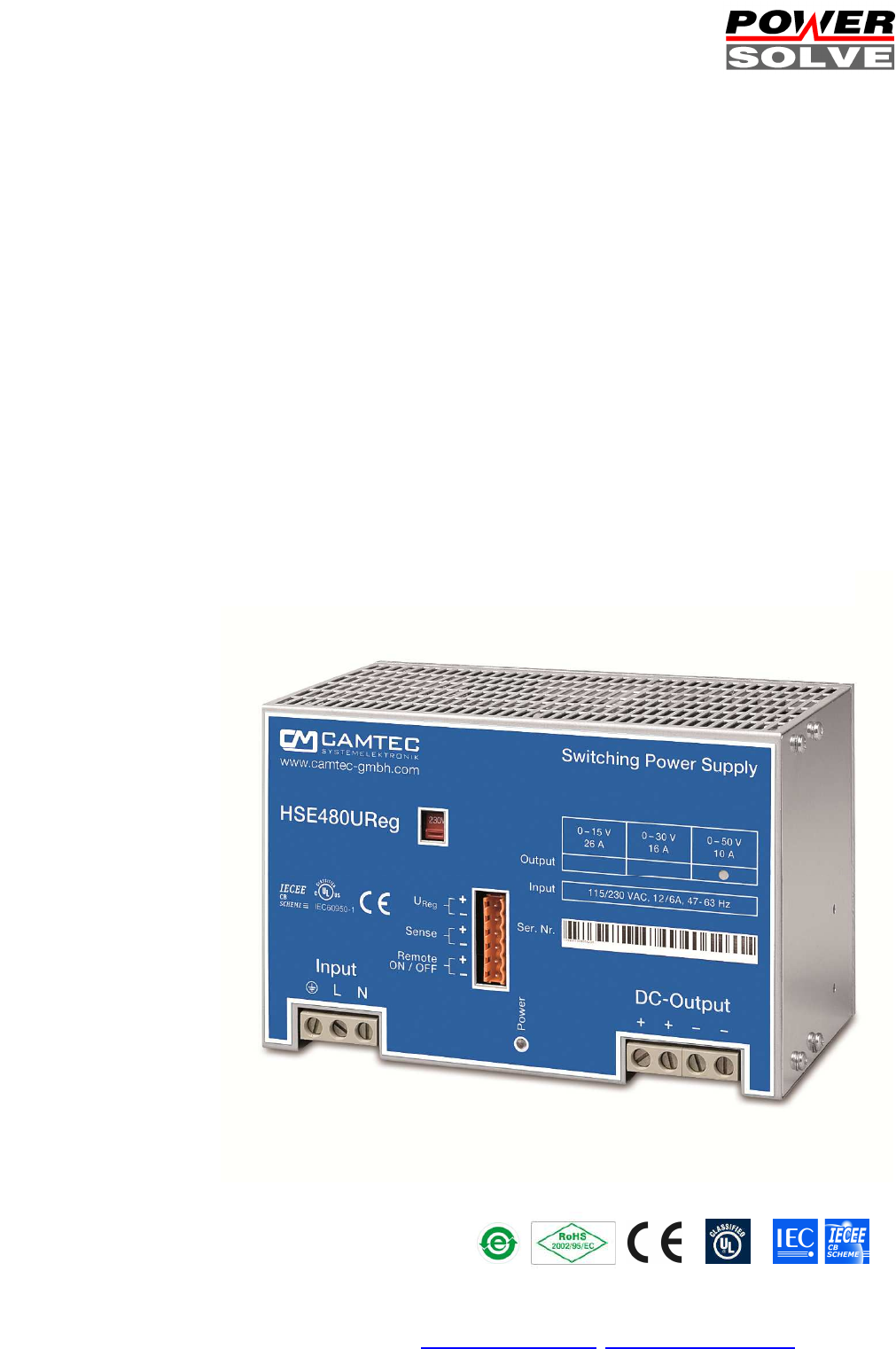

HSEUreg04801 DIN Rail

Made in Germany

480W Programmable DC Power Supply

Short Specification:

• Metal housing

• 90% efficiency

• -25°C...+60°C full output power

• Natural convection

• Galvanic insulated

• Continuous short circuit protected

• Overload (OVP) & low voltage protected

• Soft start & auto-recovery

• Hold up time >50ms

• No base load required

• Analogue interface 0-10Vdc/0-20mA/4-20mA(option)

• External shutdown

• Sense control

• Series & parallel operation

• DIN Rail 35mm & wall mount

• Screw terminals AWG20...AWG6

• High reliability, shock & vibration proof

• 24 hours burn in test

• EMI/EMS EN61000-6-2,3, EN55022 class B

• IEC(EN)60950-1 in accordance to cUL60950/16950

Available o

utputs:

0…18V, 0…30V, 0…50V, 0...90V, 0...130V, 0...180V, 0...240V

In accordance with IEC60950-1

Summary of content (5 pages)

PAGE 1
HSEUreg04801 DIN Rail Made in Germany 480W Programmable DC Power Supply Short Specification: • • • • • • • • • • Metal housing 90% efficiency -25°C...
PAGE 2
AC Input AC Input Rating Rated DC Voltage 90..132Vac / 184..265Vac , 47…63Hz , 250…375Vdc 115Vac<8.8A 230Vac<4.3A 250Vdc<2.4A 375Vdc<1.6A 0...15V 0...30V 0...50V 0...90V 0...130V 0...180V 0..240V Overvoltage Protection 18Vdc 35Vdc 59Vdc 105Vdc 150Vdc 210Vdc 280Vdc Rated DC Current 26A 16A 10A 5.3A 3.7A 2.7A 2.0A Power Boost -25...+60°C <1min. 28.6A 17.6A 11A 5.8A 4.1A 3.0A 2.2A Max. DC Current +70°C 19.5A 12A 7.5A 4A 2.8A 2A 1.
PAGE 3
P I D C O N T R O L C O N V E R T E R C T F I L T E R 1 = transient filter 2 = rectifier 3 = inrush limiter NTC 4 = load capacitor 5 = transformer 6 = storage throttle 1) Active Transient Filter 2) Rectifier 3) Inrush Current Limiter 4) Load Capacitor 5) Power Transformer 6) Storage Choke Technical Description The HSEUreg-Series is a programmable switch mode power supply.
PAGE 4
Coating Option We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.
PAGE 5
Safety Instructions: Please read all warnings and advices carefully before installing or operating the HSEUreg. Retain this operation manual always ready to hand.The HSEUreg must be installed by specialist staff only. Installation: 1.) 2.) 3.) 4.
