AC-DC Converters
Note:
1. Add a 0.1F ceramic capacitor and a 10F E.L. capacitor to output for Ripple & Noise Measuring @ 20MHz BW.
2. Line Regulation is Measured from High Line to Low Line with Full Load.
3. Load Regulation is Measured from Full to 10% Load.
4. Input Connector Mates with Molex Housing 09-50-3031 and Molex 2878 Series Crimp Terminal.
5. Output Connector Mates with Molex Housing 09-50-3041 and Molex 2878 Series Crimp Terminal.
6. Model "CFM200XS-P": Connectors with PCB Mountable Type.

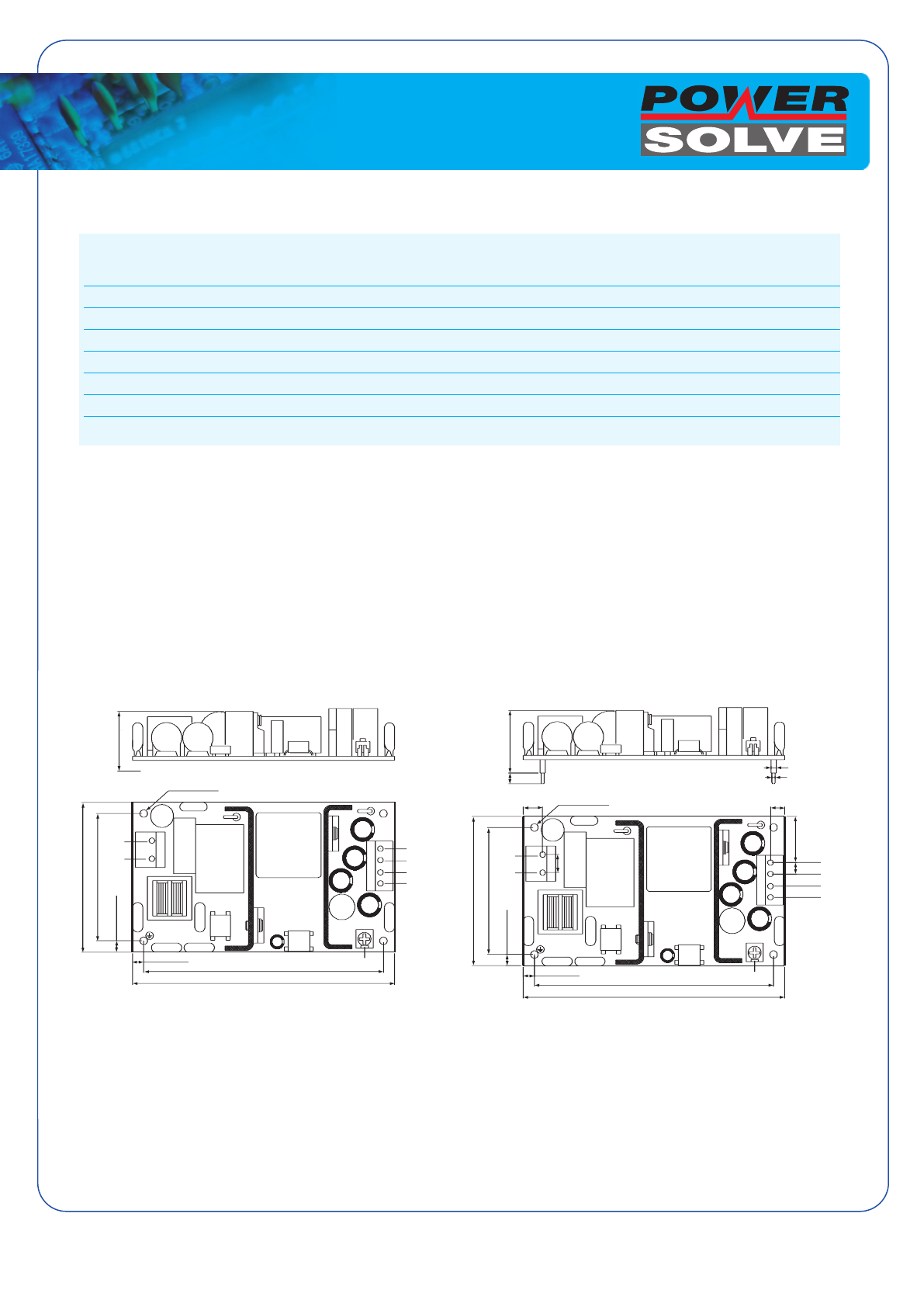

1.0(25.4)
0.15(3.8)
0.23(6.05)
0.13(3.30)(4PL)
0.31(7.9)
2.00(50.8)
1.70(43.18)
0.150(3.81)
0.150(3.81)
3.2(81.28)
3.50(88.9)
0.070(1.78)
0.040(1.02)
0.24(6.12)
0.62(15.75)
0.15(3.96)
ACN
ACL
+Vout
-Vout
VR
0.80(20.32)
2.00(50.8)
1.70(43.18)
0.150(3.81)
0.150(3.81)
3.2(81.28)
3.50(88.9)
0.13(3.30)(4PL)
ACN
ACL
-Vout
+Vout
VR
CFM20 Watt SeriesCFM200XS-P Watt Series
MODEL OUTPUT MAX MIN RIPPLE & VOLTAGE LINE LOAD EFF
VOLTAGE LOAD LOAD NOISE ACCURACY REGULATION REGULATION %
CFM2001S 5V 4400mA 0A 1% ±1% ±0.5% ±1% 73
CFM2002S 12V 1800mA 0A 1% ±1% ±0.5% ±1% 80
CFM2003S 15V 1400mA 0A 1% ±1% ±0.5% ±1% 80
CFM2005S 24V 920mA 0A 1% ±1% ±0.5% ±1% 82
CFM2007S 3.3V 4400mA 0A 50mV ±1% ±0.5% ±1% 70
CFM2009S 9V 2450mA 0A 1% ±1% ±0.5% ±1% 77
