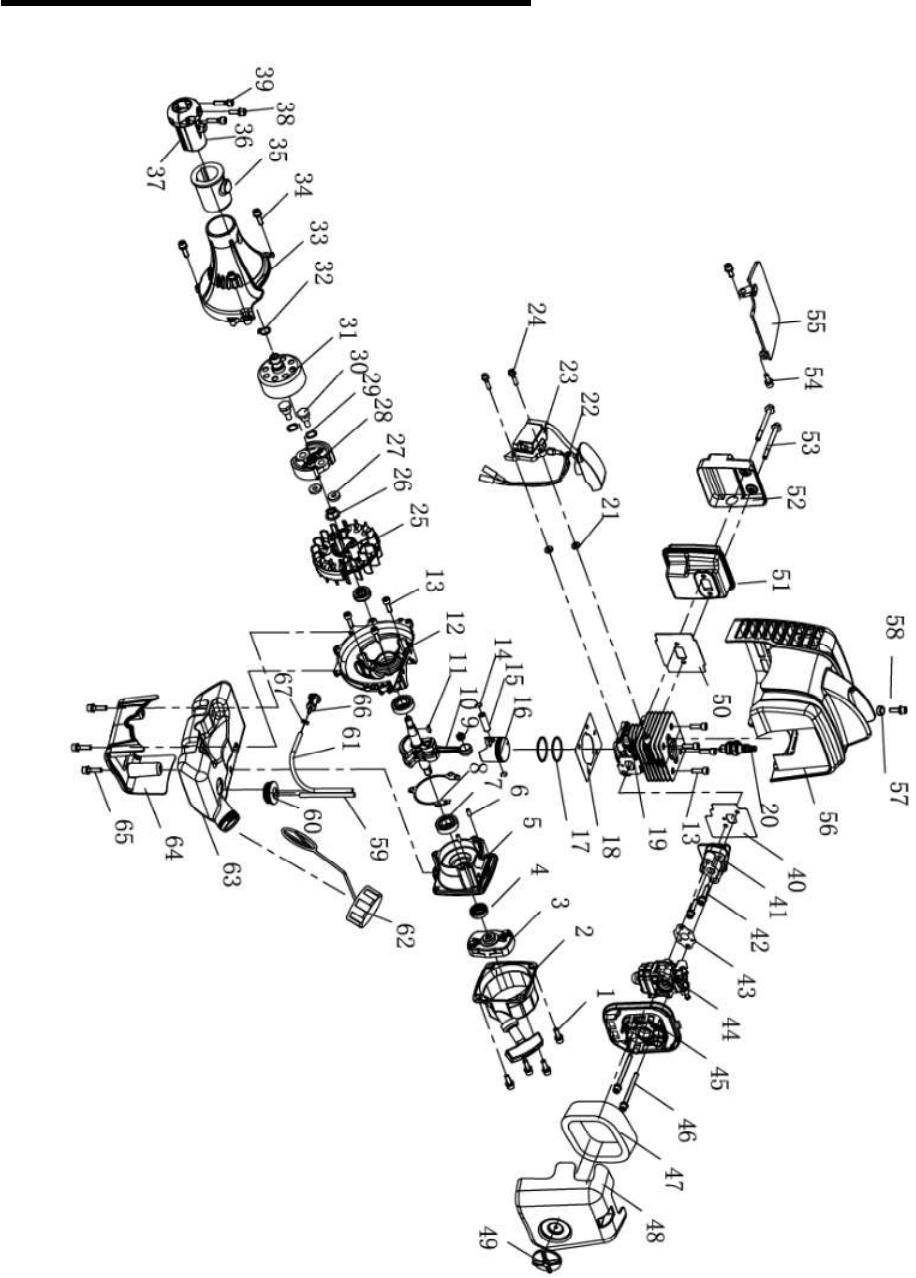

EXPLODED VIEW AND PARTS LIST Engine exploded view 22
Engine parts list Item 1 Stock # GB70.1+GB93+GB97 Description Screw M5×16 Qty 4 Item Stock # Description Qty 35 CG305F-HS.1-3 Rubber 1 2 P23.10A Starter 1 36 CG305F-HS.1-1 Holder A 1 3 P23.9A Guide Cover assy 1 37 CG305F-HS.1-2 Holder B 1 4 1E36F.2 Oil seal 2 38 GB70.1+GB93+GB97 Screw M5×16 1 5 P23.11-2 Crank case R 1 39 GB70.1+GB93+GB97 Screw M5×25 2 6 GB/T119.1 Pin 4×h8×8 2 40 P23-7 7 GB/T276 41 P23.3 Insulator 1 8 P23.
Brush cutter &String trimmer exploded view Item Stock # Description Qty A PS4532-A Gear Case Ass’y 1 1 PS4532-A-001 Stop Ring 26 1 2 PS4532-A-002 Stop Ring 10 1 3 PS4532-A-003 Bearing 6000-2RS/P6 1 4 PS4532-A-004 Bearing 6000/P6 2 5 PS4532-A-005 Pinion 1 6 PS4532-A-006 Screw M5×20 1 7 PS4532-A-007 Screw M5×12 4 8 PS4532-A-008 Bolt 1 9 PS4532-A-009 Gear Case 1 10 PS4532-A-010 Safety Guard 1 11 PS4532-A-011 Gear 1 12 PS4532-A-012 Gear Shaft 1 13 PS4532
Item Item Stock # F PS4532-F 1 Description Stock # Description Qty D PS4532-D Fore-Pipe Comp. 1 1 PS4532-D-001 Hose Sleeve 1 2 PS4532-D-002 Rubber Cover 3 3 PS4532-D-003 Oil-bearing 3 4 PS4532-D-004 Drive Shaft 1 5 PS4532-D-005 Pipe 1 Item Stock # Description Qty E PS4532-E Rear-Pipe Comp.
Item Stock # Description Qty G PS4532-G Level Ass’y 1 1 PS4532-G-001 Clamp 1 2 PS4532-G-002 Screw M5×16 1 3 PS4532-G-003 Tine 1 4 PS4532-G-004 Spring 1 5 PS4532-G-005 Spring 1 6 PS4532-G-006 Spring 1 7 PS4532-G-007 Safety Lever 1 8 PS4532-G-008 Throttle Lever 1 9 PS4532-G-009 Cable Comp. 1 10 PS4532-G-010 Screw M5×25 2 11 PS4532-G-011 Nut M5 3 12 PS4532-G-012 Box, left 1 13 PS4532-G-013 Stop Switch 1 14 PS4532-G-014 Tube (12.
Item Stock # Description Qty I PS4532-I Guard Ass’y 1 1 PS4532-I-001 Bracket 1 2 PS4532-I-002 Screw M5×30 2 3 PS4532-I-003 Screw M5×12 1 4 PS4532-I-004 Screw ST4.2×16 1 5 PS4532-I-005 Safety Guard 1 6 PS4532-I-006 Screw M5×16 4 7 PS4532-I-007 Guard Ass’y 1 8 PS4532-I-008 Guard 1 9 PS4532-I-009 Screw ST4.
