User guide

TI450-M Page 4
ORDERING
6
9
10
11
12
8
7
37
38
39
36
3
6
4
5
35
36
5
13
# Part # Description Qty Material
3 N/A Shroud M 1 St Steel
4 450 268 Soap Dish 1 St Steel
5 4504011 End Cap Kit 1 Chrm Plt ABS
6 450 273 Screw 10-32 x 3/8 (shrouding) 9 St Steel
x 141 318 Handshower with 24” Glidebar 1 -
7 450 276 Set Screw 10-32 x 7/8 1 St Steel
8 141 816 Fixed Showerhead 1 Chrm Plt Brass
9 141 815 Adjustable Swivel Showerhead 1 Chrm Plt Brass
10 450 277 Gasket, Showerhead Base 1 Garlock 3000
11 450267G Showerhead Base 1 Chrm Plt Brass
12 047 013 Quad Ring 3/8 x 1/2 x 1/16 1 Buna N
13 450 274 Screw 10-32 x 1/4 (showerhead) 3 Brass
35 N/A Screw 10-32 x 1 (valve/shroud) 2 St Steel
36 N/A Metering Valve/Piping Assembly 1 -
37 450 307 U-Bolt w/Nuts 1 St Steel
38 450 306 Wall Mounting Bracket 1 St Steel
39 594 118 Washer (U-Bolt) 2 St Steel
NS 089 003 3/32” Service Wrench 1 Steel
NS 089 004 1/8” Service Wrench 1 Steel
NS = Not shown in diagram NA = Not available as commercial part

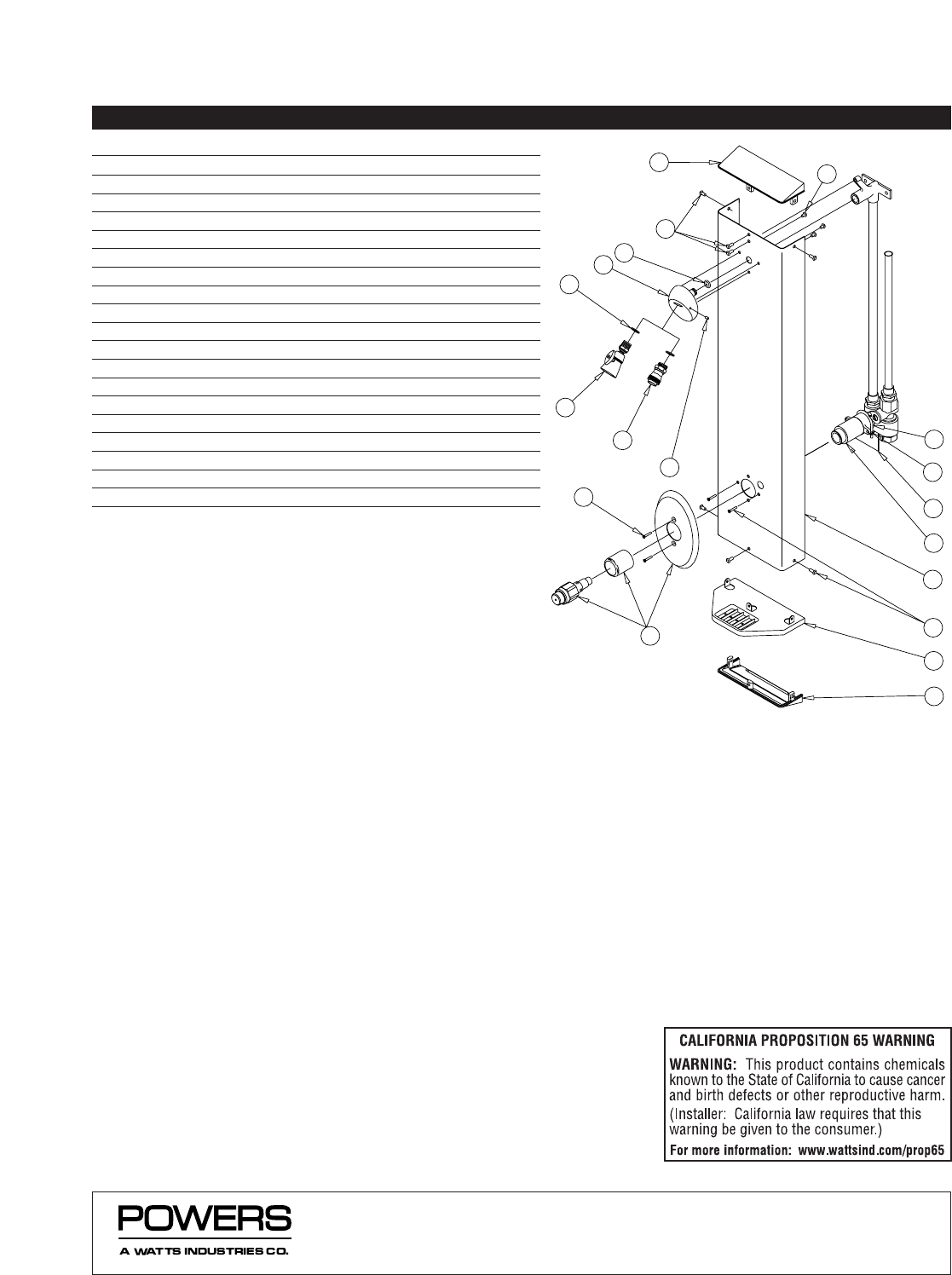

Figure 6. Exploded View Diagram of Hydropanel II
Series 450-4000M Shower Unit..
