Owner's manual

Warranty n
The Seller warrants that the equipment manufactured by it and covered by this order or contract is free from defects in material and workmanship and, without
charge, equipment found to be defective in material or workmanship will be repaired, or at Seller’s option replaced F.O.B. original point of shipment, if written
notice of failure is received by Seller within one (1) year after date of shipment (unless specifically noted elsewhere), provided said equipment has been properly
installed, operated in accordance with the Seller’s instructions, and provided such defects are not due to abuse or decomposition by chemical or galvanic action.
THIS EXPRESS WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES, GUARANTEES, OR REPRESENTATIONS, EXPRESS OF
IMPLIED. THERE ARE
NO IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
The Seller assumes no responsibility for repairs made on the
Seller’s equipment unless done by the Seller’s authorized personnel, or by written authority from the Seller. The Seller makes no guarantee with respect to material
not manufactured by it.

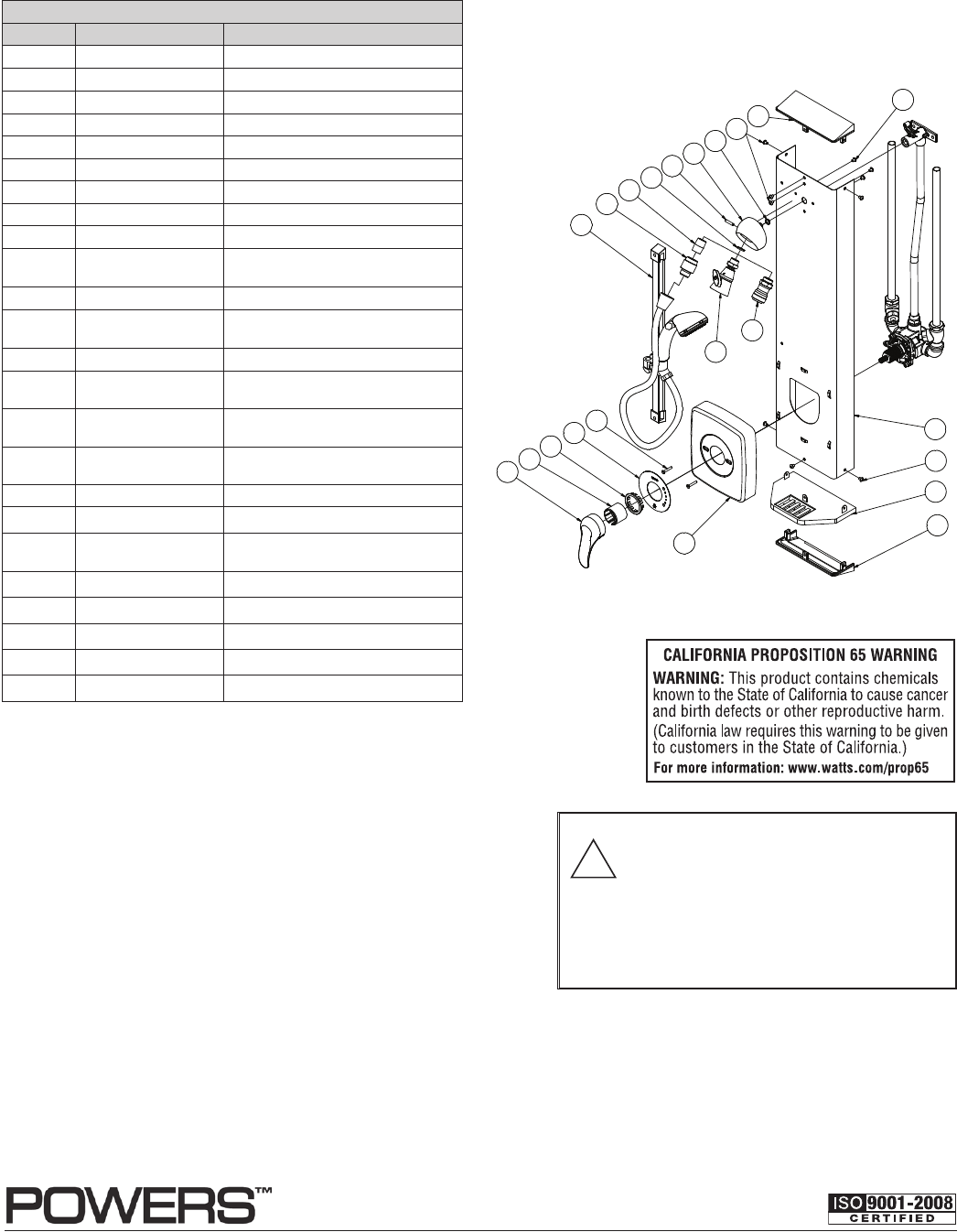

Parts List n
1
2
3
4
2
4
2
19
17
16
15
14
13
12
11
10
8
7
6
5
18
9
Parts List
Item Part Number Description
1 N/A SHROUD (showerhead)
1 N/A SHROUD (handshower)
2 450273A SCREW 10-32 UNF x 1/4
3 450 268 SOAP DISH
4 450269G CAP, END CHROME PLATE
5 450 356 COVER PLATE
6 420 049 HANDLE KIT
7 420 017 SLEEVE
8 227 167 RETAINER - DIAL INSERT
9 420 063
NAME P LATE & BASE P LATE
ASSEMBLY
10 080 009 SCREW 8-32 X 1-1/4
11 141 379
SHOWERHEAD - ADJUSTABLE
SWIVEL
12 141 816 SHOWERHEAD - FIXED
13 141 837
PUSHBUTTON SHOWER HAND
SPRAY
14 141 319
IN-LIN E VACUUM BREA KER
(handshower)
15 042672G NIPPLE - 12" 'NPT X 1-1/8" LG
(handshower)
16 450 277 GASKET - SHOWERHEAD BASE
17 450 276 SET SCREW 10-32 UNF X 7/8
18 450267G
BASE, SHOWERHEAD CHROME
PLATE
19 047 013 QUAD RING 3/8" ID X 1/2" OD
20* 420 452 KIT, CARTRIDGE
21* 420 024 WAX ELEMENT
22* 420 457 KIT, BONNET
23* 141 000 KIT, CHECKSTOP
* Not Shown
NOTE: AFTER COMPLETING REPAIRS,
CHECK DISCHARGE TEMPERATURE.
RESET IF NECESSARY.
WARNING: FAILURE TO PERFORM THIS
OPERATION COULD RESULT IN UNSAFE
DISCHARGE TEMPERATURE, WHICH MAY
CAUSE INJURY OR DEATH.
!
