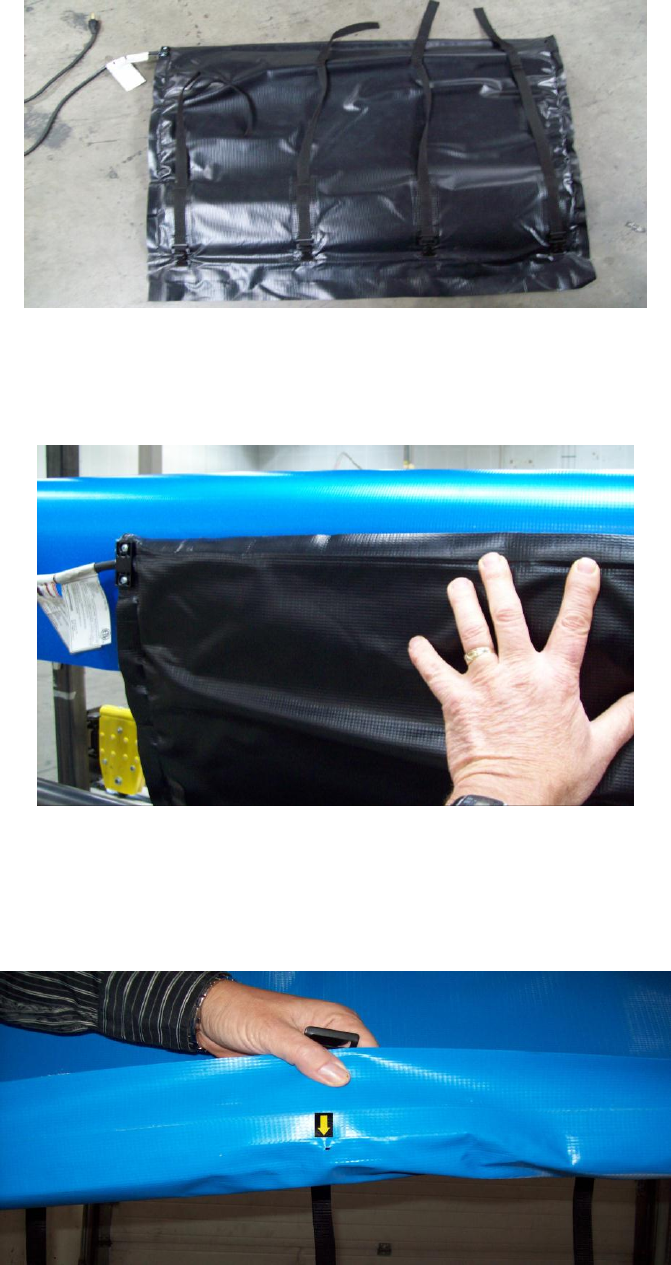

Begin by laying out the Pipe Wrap heater. Identify the cord edge of the blanket (top in this
picture) and the buckle edge of the blanket (bottom edge). Position the cord edge of the
blanket along the axis of the pipe as shown below.
Ensure that the Pipe Wrap edge is aligned with the axis of the pipe. This will help ensure that
the Pipe Wrap is even when the installation is complete. Next locate the positions of the arrows
on the Pipe Wrap. These arrows indicate the locations of small holes that allow air to bleed from
the blanket to ensure a tight fit and superior heat transfer to the pipe.
