Powerblanket® Pipe Wrap Heater Installation Instructions
The design is such that two people can easily install most of the Powerblanket® Pipe Wrap
Heaters.

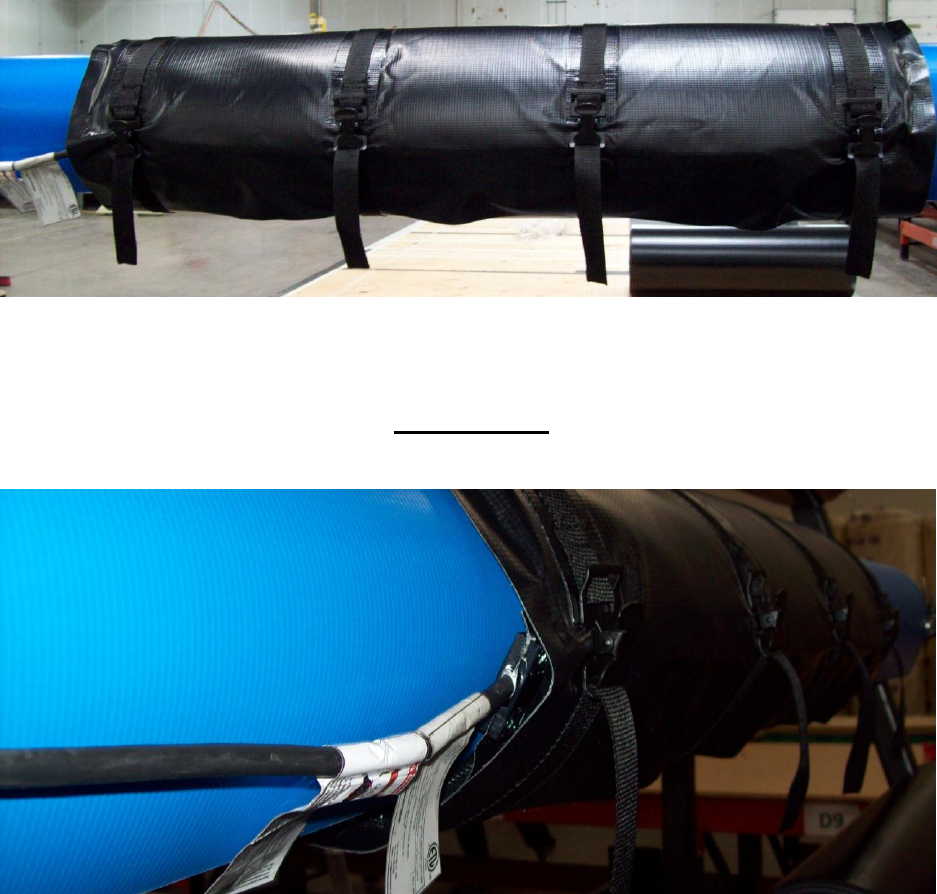

Photo of PH040603 installed on a 6-3/4" OD (blue) cylinder.
Note the external 1" wide webbing straps with integral metal buckles are used to secure the Pipe
Wrap heater to the pipe. Note also that the electrical cord comes out of the left end of the Pipe
Wrap heater. As shown below, the cord end of the blanket is completely overlapped and covered
by the buckle end of the blanket. This is very important for the functionality of your Pipe Wrap
heater.
