Assembly Instruction

Page 7/8
6. To fasten Upper Bunk to Storage End, remove the top Drawer (H) from the Storage Unit. Slide a Spring Washer (S) and
Pressure Plate (Q) into a Short Bolt (R). Insert the Short Bolt (R) into the pre-drilled holes on top of the Storage End, and
into Side Rail, as shown in Figure 7. Repeat process to secure Upper Bunk to Desk End.
7. Insert (4) Shelf Support Pegs (T) into the corresponding holes inside the desk door, at the desired height for the shelf.
Place the Removable Shelf (I) on the Shelf Support Pegs (Figure 7).

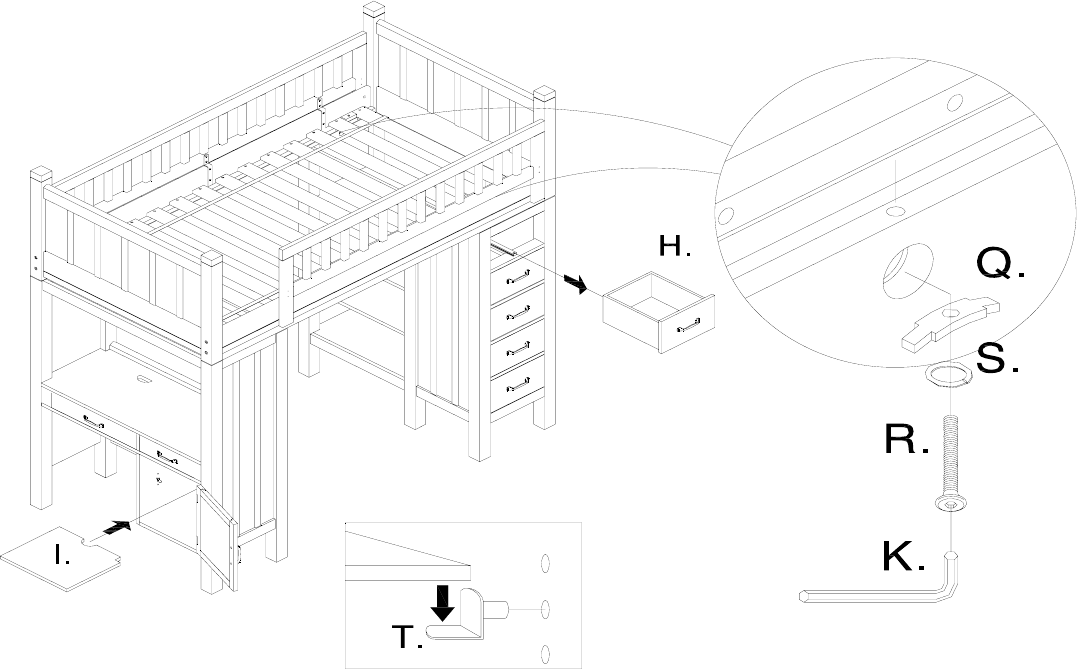

Figure 7
