Assembly Instruction

Page 5/8

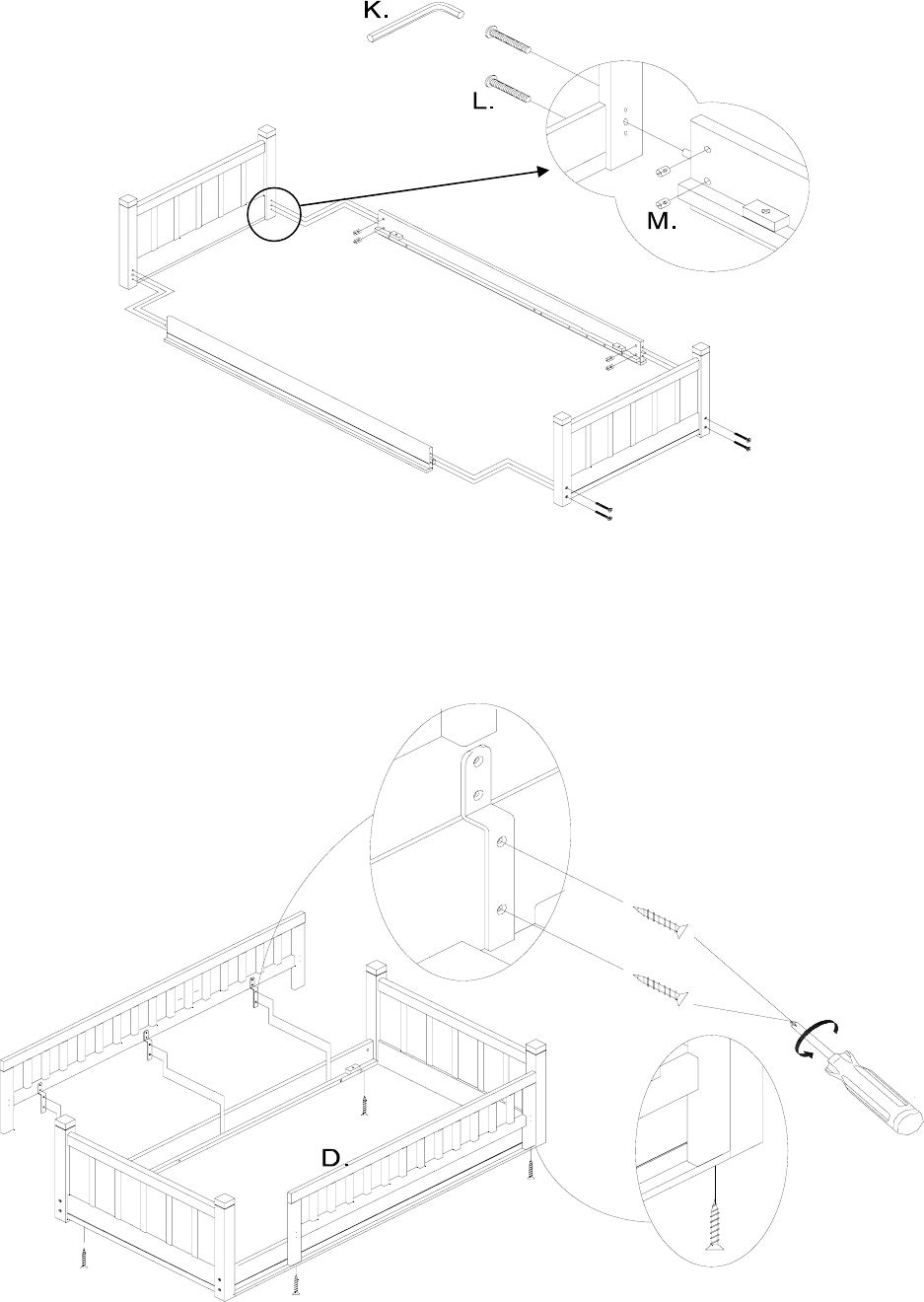

2. Assemble upper bunk, by inserting (4) Long Bolts (L) into the pre-drilled holes on each End Board (A), as shown below.
Place (2) Barrel Nut (M) in the corresponding openings on the Side Rail (B) and use Allen Key (K) to connect. Repeat on
the remaining 3 corners. Do not fully tighten until all bolts are in place. (Figure 1).
3. Install Long/Short** Guardrails (C&D) onto the Side Rails (B) by aligning the brackets attached to the Guardrails with the
cut-outs on the Side Rails (B, as shown in Figure 2. Secure using (10) Short Wood Screws (N). Then, insert the (4) Long
Wood Screws (O) through the pre-drilled holes on bottom of Side Rails and into the posts of Long/Short Guardrails
(C&D).
**Note the desired location of the Ladder (J). The Ladder should be placed over the Desk Unit (F), to ensure that it will not block
access to dresser drawers. If the System will be assembled with the Desk Unit (F) on the Left side (Figure 1 in Step 1), please
assemble Short Guard Rail (D) as shown below. If Desk Unit (F) will be on Right side (Figure 2 in Step 1), assemble guardrail with
opening on the right side of the bed.
C.
N.
O.
A.
B.
A
.
Figure 3
Figure 4
