Configuring the V2IU 4350
3 - 57

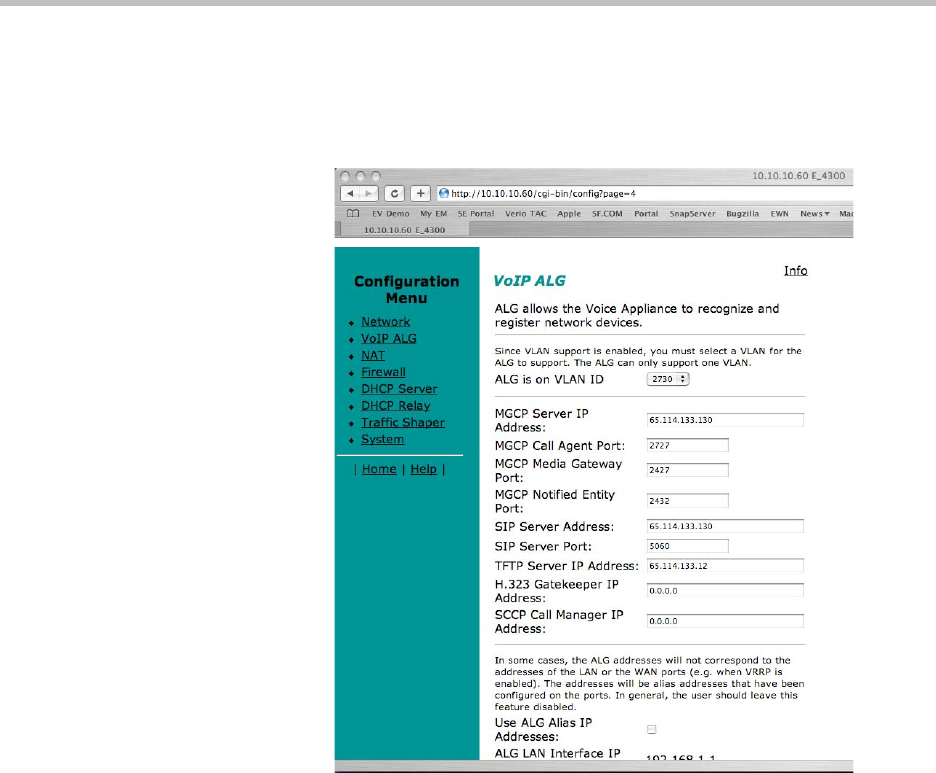

Configure the VoIP ALG
In order to configure the VoIP ALG the 4350 must be told where to reach the
signaling servers and TFTP server on behalf of the voice devices.
1. Select VoIP ALG.
2. If using VLANs assign the ALG to a specific VLAN id using the drop
down menu.
3. If you are using MGCP enter the MGCP Server IP Address, MGCP Media
Gateway Port and MGCP Notified Entity Port.
4. If you are using SIP enter the SIP Server IP Address and SIP server port.
The SIP server port is the port used by the SIP registrar. The default value
is port 5060.
5. If you are using H.323 enter the H.323 Gatekeeper IP Address.
6. Enter the TFTP Server Address. This address is used to identify the TFTP
server that contains the images used by IP phones at boot up. The 4350
performs a TFTP server relay function.
