Audio Cable

This cable connects a Polycom HDX system to an external audio system. It is

used with the Audio Adapter cable on page Audio Cable on page 2-50 . It has

dual RCA connectors (red/white) on both ends. The maximum approved

length for this cable is 100 ft (30 m).

Length Part Number RoHS Compliant

25 ft (7.6 m) 2457-09212-002 Yes

9 ft 10 in (3 m) 2457-09212-010 Yes

Drawings and part numbers are provided for reference only. Polycom claims no

responsibility or liability for the quality, performance, or reliability of cables based on

these reference drawings, other than cables provided by Polycom. Contact your

Polycom distributor or Polycom Custom/Vertical Products to order cables that meet

the appropriate manufacturing tolerances, quality, and performance parameters for

your application.

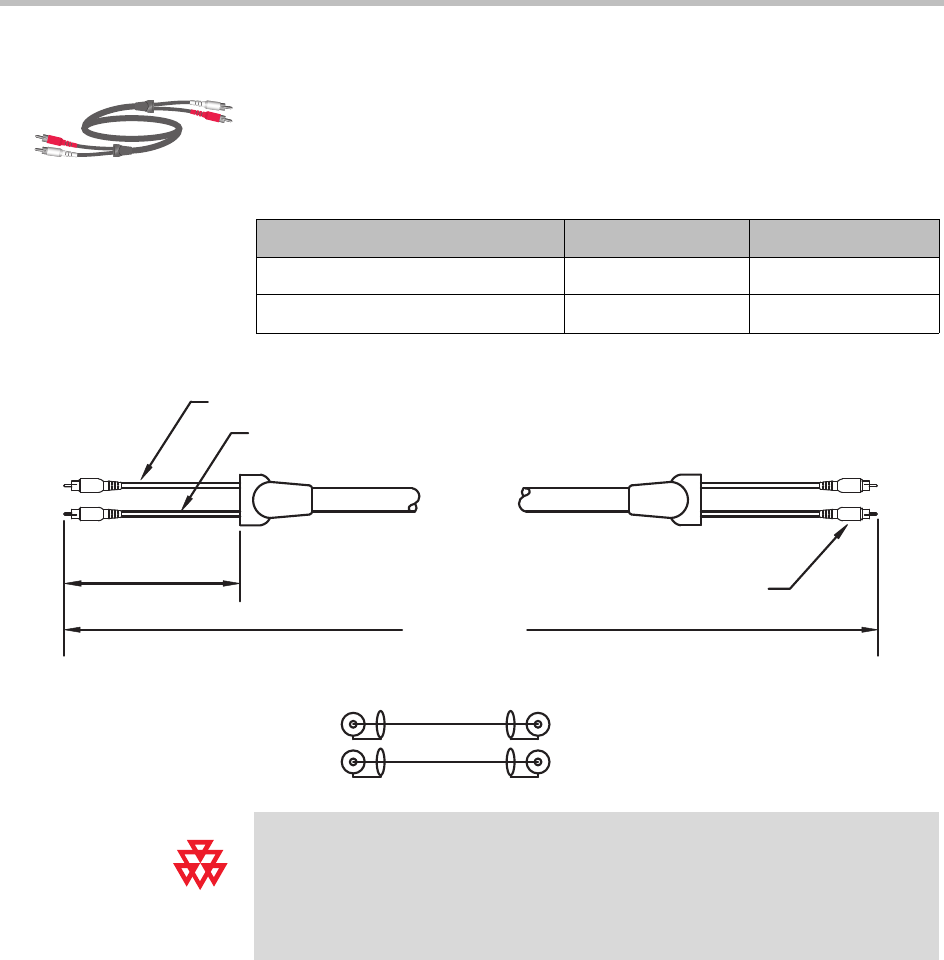

OVER MOLD "RCA" CONNECTORS

RED

WHT

RED

25 FEET +/- 3"

WHITE INSULATION (2X)

RED INSULATION (2X)

6 IN. ± 0.5 IN.

(2X)

RED

WHT
