Cables
Polycom, Inc. 2–43

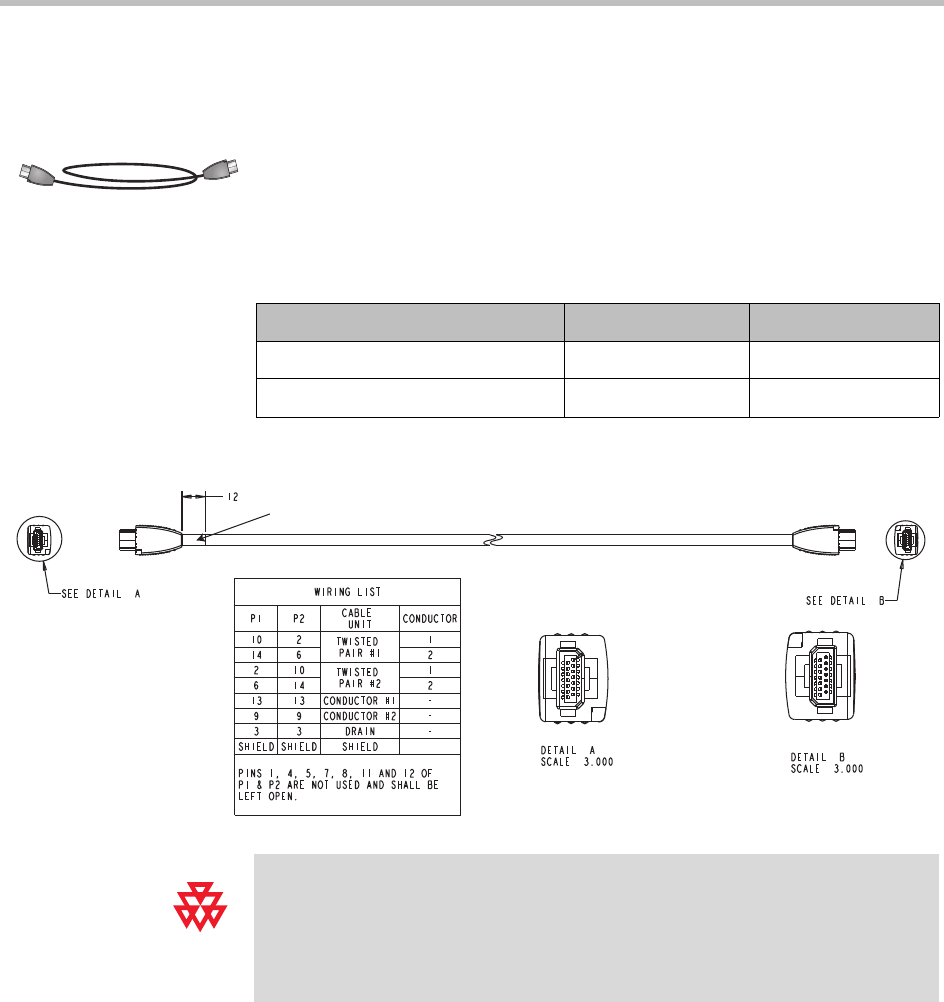

Polycom HDX Microphone Array Cable
For more information about supported microphone configurations, refer to
the Administrator’s Guide for Polycom HDX Systems.
This cable connects two Polycom HDX microphones together. This cable can
also be used with the Polycom HDX Microphone Array Cable Adapter on
page 2-44 to connect a Polycom HDX system to a Polycom HDX microphone
array or to a SoundStation IP 7000 phone. It has male Walta connectors on both
ends.
Length Part Number RoHS Compliant
15 ft (4.6 m) 2457-23215-001 Yes
25 ft (7.6 m) 2457-23216-001 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
BROWN HEAT-SHRINK TUBINGBROWN HEAT-SHRINK TUBING
P1P1
P2P2
