Cables
Polycom, Inc. 2–41
Audio Cables

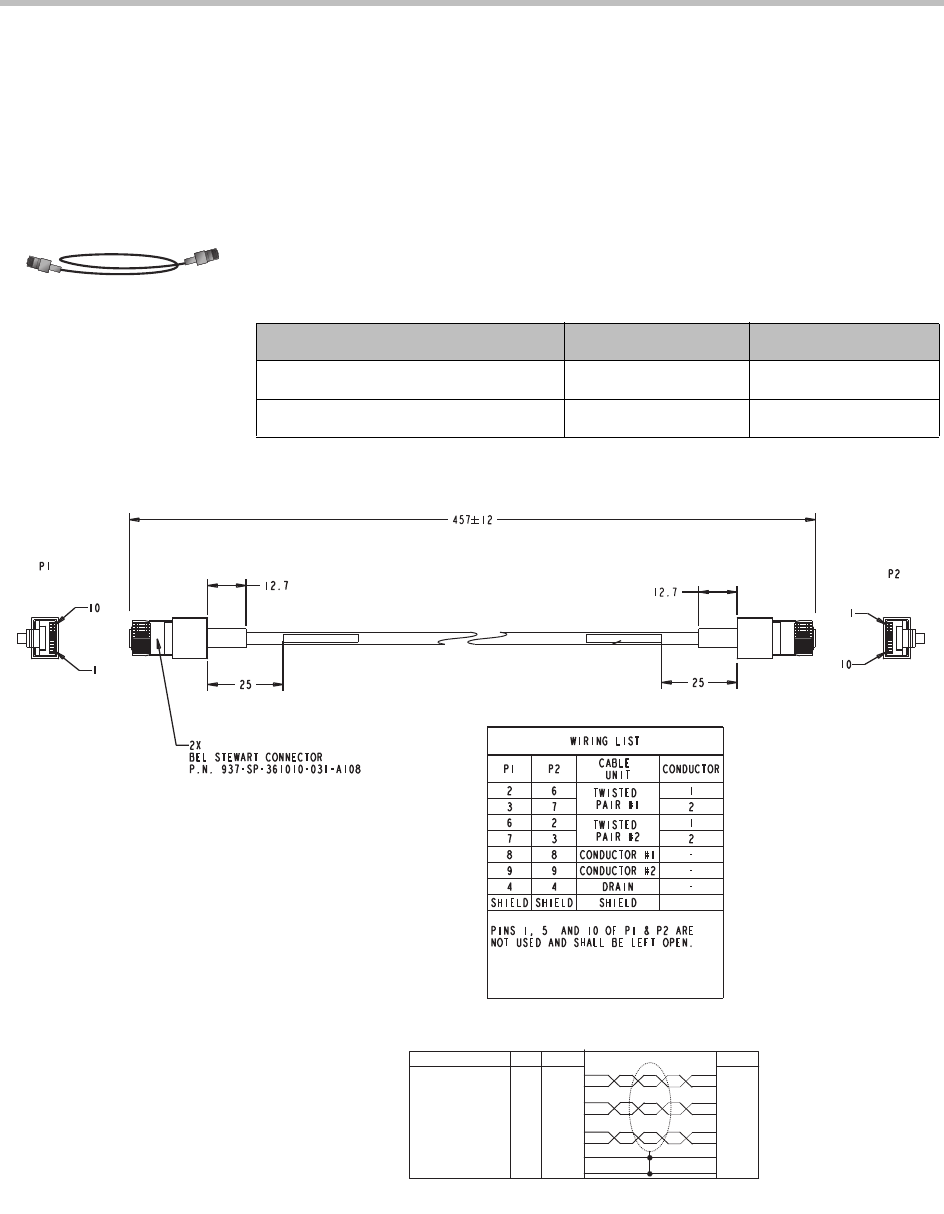

Polycom HDX Microphone Host Cable
For more information about supported microphone configurations, refer to
the Administrator’s Guide for Polycom HDX Systems.
This cable connects a Polycom HDX system to the Polycom SoundStructure
C-Series mixer. It is unkeyed male RJ-45 on both ends.
Length Part Number RoHS Compliant
18 in (0.5 m) 2457-23574-001 Yes
25 ft (7.5 m) 2457-23217-001 Yes
8
7
6
5
2
1
P1
3
SHELL
8
7
2
1
6
5
P2
3
SHELL
BROWN
WHITE/BROWN
ORANGE
WHITE/ORANGE
GREEN
WHITE/GREEN
COLOR
DRAIN WIRE
SHIELD
P1 - RJ-45 shielded plug, Tyco 5-569552 or equivalent
P2 - RJ-45 shielded plug, Tyco 5-569552 or equivalent
24
24
24
24
24
24
AWG
