Integrator’s Reference Manual for Polycom HDX Systems
2–40 Polycom, Inc.

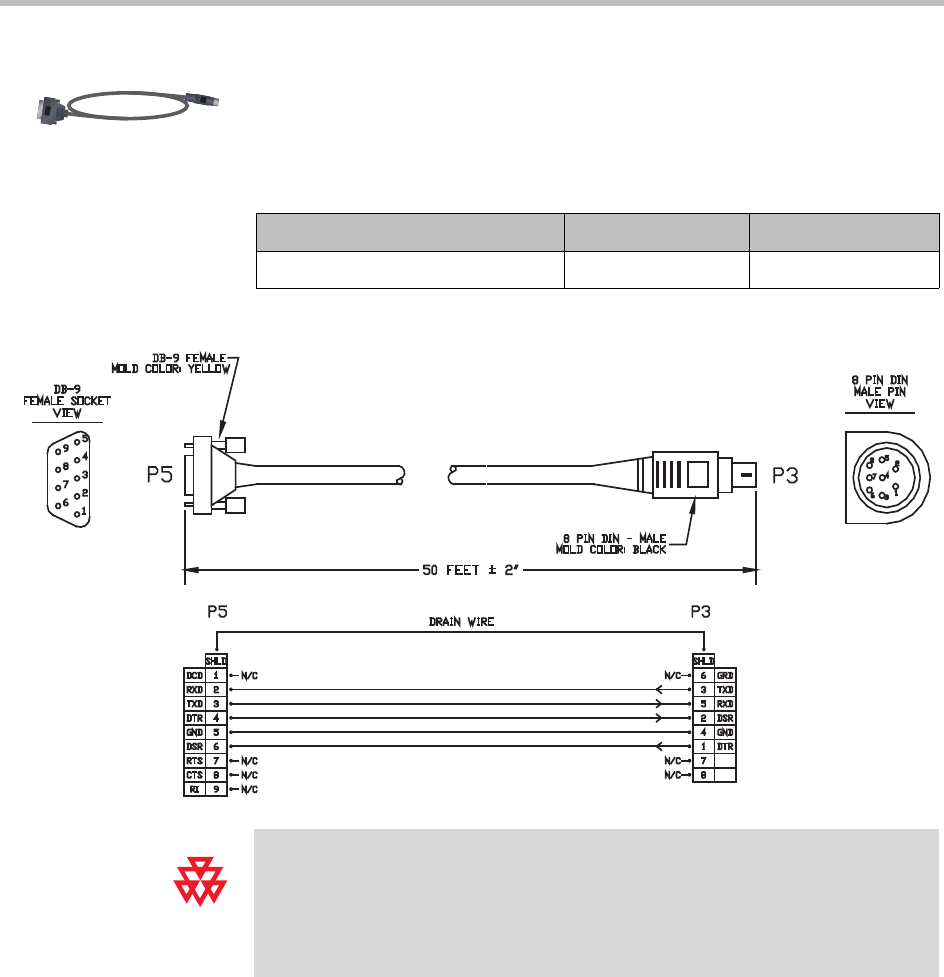

8-pin mini-DIN to DB-9
This cable connects Polycom HDX system serial port inputs to a non-Polycom
camera using a VISCA 8-pin DIN connector, or to a Polycom PowerCam
break-out cable with a PowerCam camera. It is 8-pin mini-DIN to DB-9.
RTS/CTS and IR are not supported on this cable.
Length Part Number RoHS Compliant
50 ft (15 m) 2457-10029-200 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
