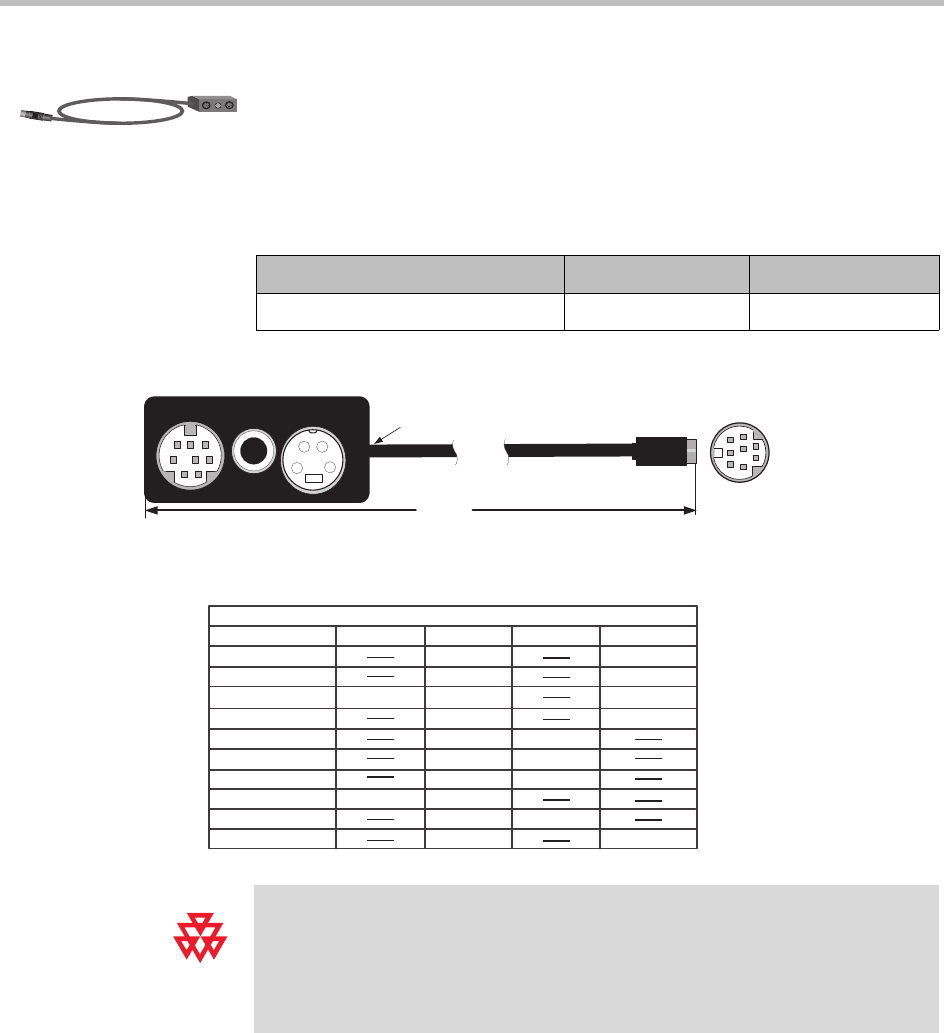

PowerCam Break-Out Cable
This cable connects S-Video and control cables and a power supply to a
Polycom PowerCam camera. This combination is required when using the
PowerCam as the primary camera more than 10 ft away from the system, or as
the secondary camera. It is 8-pin mini-DIN to 3-way breakout block.
A separate power supply is required (part number 1465-52621-036).
Length Part Number RoHS Compliant
6 ft (1.8 m) 2457-50526-200 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
6' ± 2.0"
4 Pin
Mini Din
Female
8 Pin
Mini Din
Female
DC
Jack
Molded PVC strain relief
P2
1
2
5
4
3
6
7 8
1
34
2
J1
P1
J2
8 Pin Mini Din
Male
Mini
Mini
CONNECTION TABLE
CONNECTION TABLE
Signal Name
Signal Name
TXD
TXD
RXD
RXD
DGND
DGND
IR-SIGNAL
IR-SIGNAL
CHROMAR
CHROMAR
LUMAR
LUMAR
LUMA (Y)
LUMA (Y)
+12V
+12V
CHROMA (C)
CHROMA (C)
SHIELD
SHIELD
P1
P1
1
2
P2
P2
1
2
3
4
5
5
6
7
8
Shield
Shield
J1
J1
1
2
3
4
J2
J2
5
3
6 & 4
6 & 4
7
Shield
Shield
