Integrator’s Reference Manual for Polycom HDX Systems
2–32 Polycom, Inc.

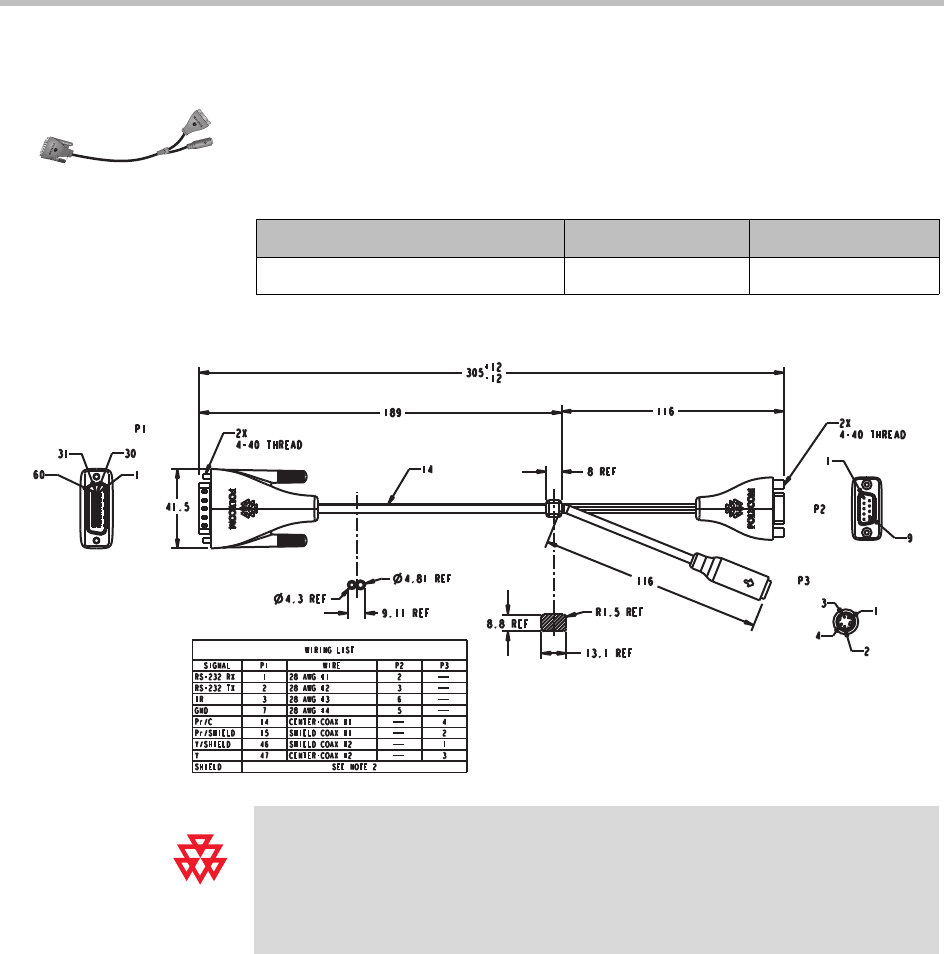

HDCI VISCA Adapter Cable
This cable connects a Polycom HDX system HDCI video input to SD cameras
with VISCA control that use a DB-9 serial connector. It is HDCI to 4-pin
mini-DIN and DB-9. Standard S-Video and DB-9 serial cables are required to
connect this cable to the camera.
Length Part Number RoHS Compliant
1 ft (0.3 m) 2457-23486-001 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
