Specifications

Cables
Polycom, Inc. 2–29

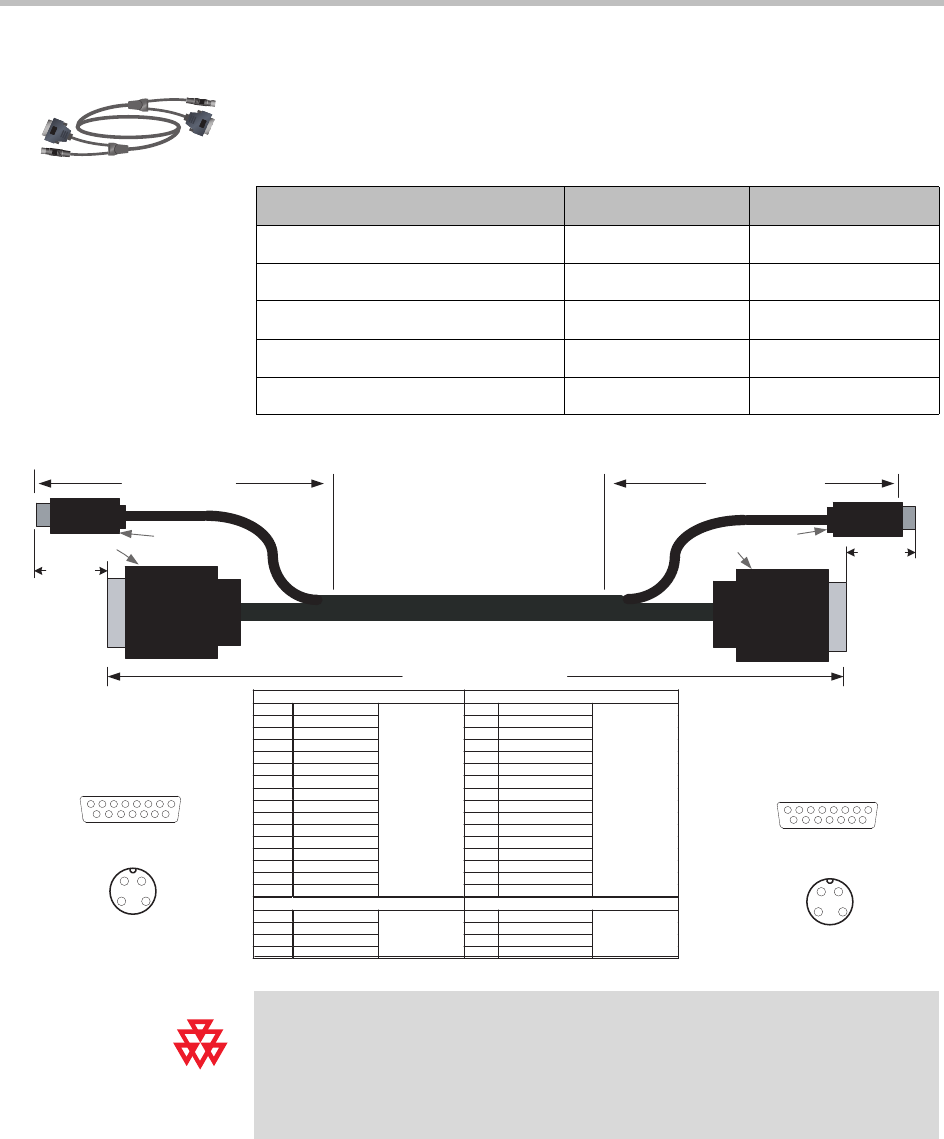

PowerCam Plus Primary Cable
This cable connects a Polycom HDX system to a Polycom PowerCam Plus
camera using the HDCI PowerCam Plus Adapter Cable on page 2-31 . It has
4-pin mini-DIN and DB-15 connectors on both ends.
Length Part Number RoHS Compliant
9 ft 10 in (3 m) 1457-50105-002 Yes
30 ft (9 m) 1457-50105-230 Yes
50 ft (15 m) 1457-50105-250 Yes
100 ft (30 m) 1457-50105-300 Yes
150 ft (45 m) 1457-50105-350 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
1576423
8
1514
12
10911
13
1
34
2
Front View
of Connector
1
3
4
2
1576423
8
15
14
12
10911
13
P1
P2
P3
P4
Front View
of Connector
200mm / 7.87"
200mm / 7.87"
3 Meters / 9' 10"
P1 Connector P2 Connector
Pin # Signal Name Pin # Signal Name
1 Arm Mic 1 Arm Mic
2 Left Mic 2 Left Mic
3 A GND 3 A GND
4 Cam ID Bit 4 Cam ID Bit
5 P GND 5 P GND
6 +12V 6 +12V
7 SW-RX/SN-TX 7 SW-RX/SN-TX
8 IR signal 8 IR signal
9 Center Mic 9 Center Mic
10 Right Mic 10 Right Mic
11 A GND 11 A GND
12 P GND 12 P GND
13 +12V 13 +12V
14 SW-TX/SN-RX 14 SW-TX/SN-RX
15 IR return 15 IR return
P3 4 Pin mini Din P4 4 Pin mini Din
1 A GND 1 A GND
2 A GND 2 A GND
3 Luma 3 Luma
4 Chroma 4 Chroma
40mm / 1.57"
40mm / 1.57"
