Integrator’s Reference Manual for Polycom HDX Systems
2–28 Polycom, Inc.

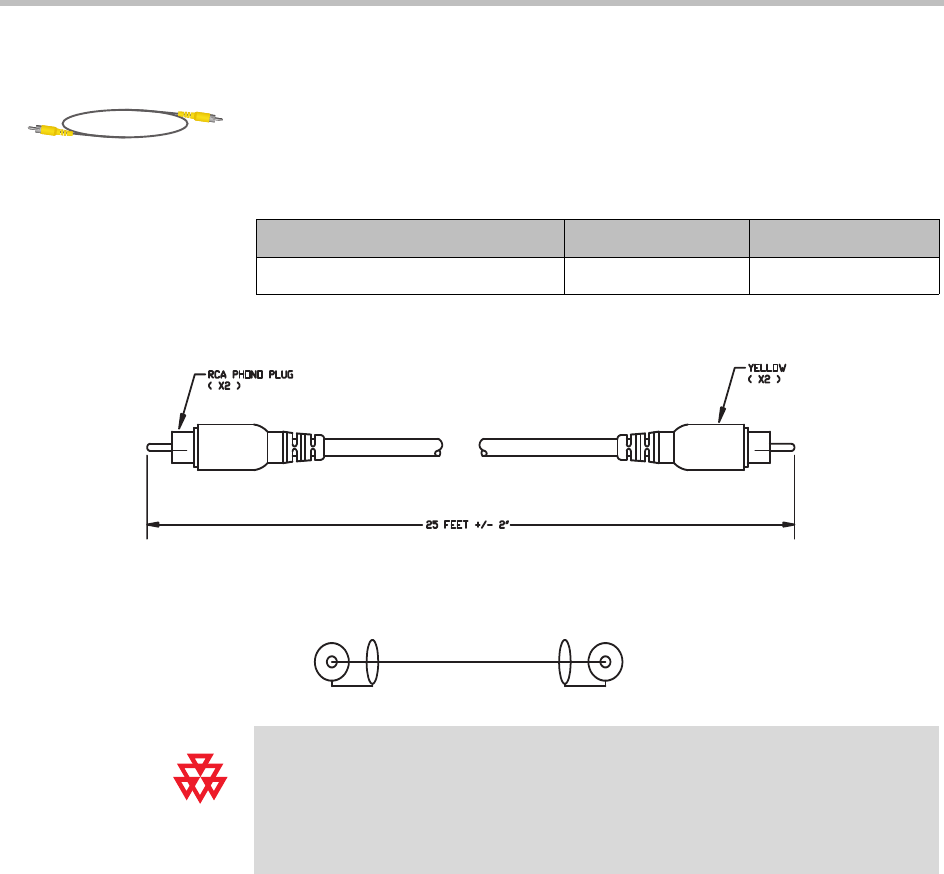

Composite Video Cable
This cable connects a Polycom HDX system to a monitor or camera. It has
single yellow RCA connectors on both ends. The Polycom HDX system
requires a female RCA to male BNC adapter in order to connect to composite
input or output. The maximum approved length for this cable is 100 ft (30 m).
Length Part Number RoHS Compliant
25 ft (7.6 m) 2457-09207-001 —
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
