Cables
Polycom, Inc. 2–23

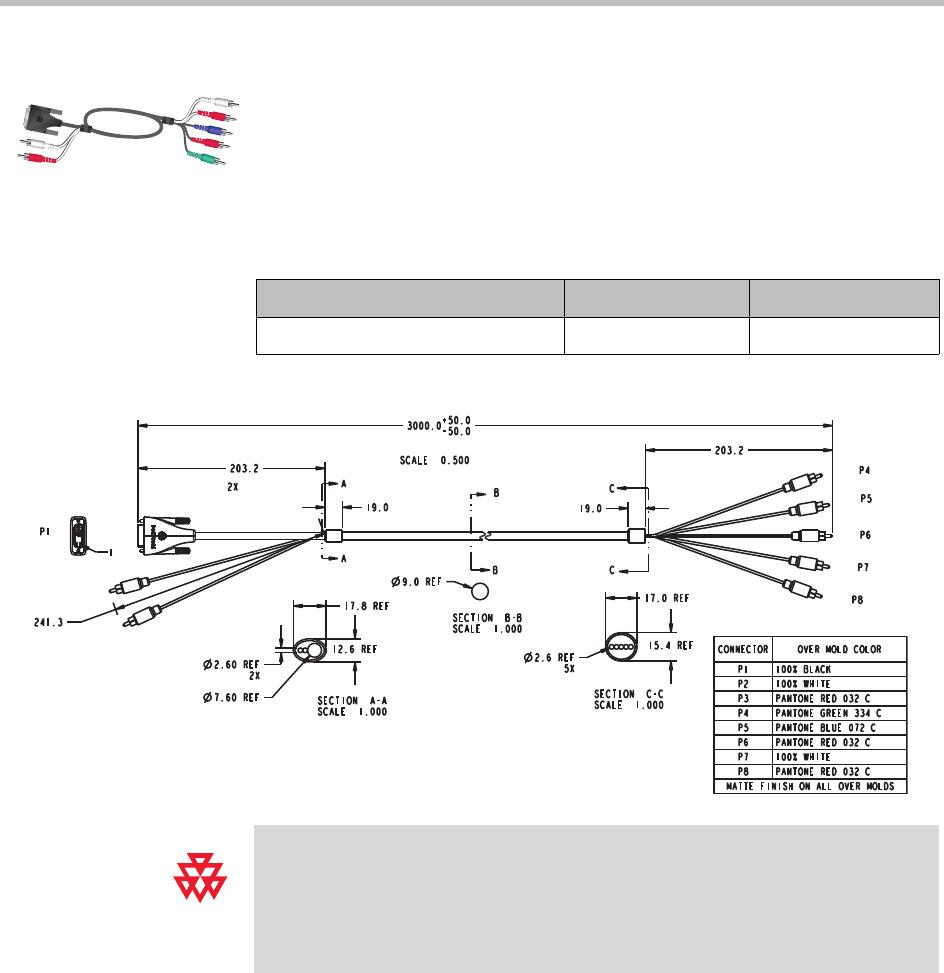

Component A/V Monitor Cable
This cable connects a Polycom HDX system DVI-I video output and stereo
audio output to a monitor with component video and stereo audio
connections. It is male DVI-A and dual male RCA to five RCA.
You must use the audio adapter cable on page Audio Adapter Cable on
page 2-49 to connect the dual RCA connectors on this component A/V
monitor cable to the dual Phoenix connectors on the Polycom HDX system.
Length Part Number RoHS Compliant
9 ft 10 in (3 m) 2457-24772-001 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
