Integrator’s Reference Manual for Polycom HDX Systems
2–8 Polycom, Inc.

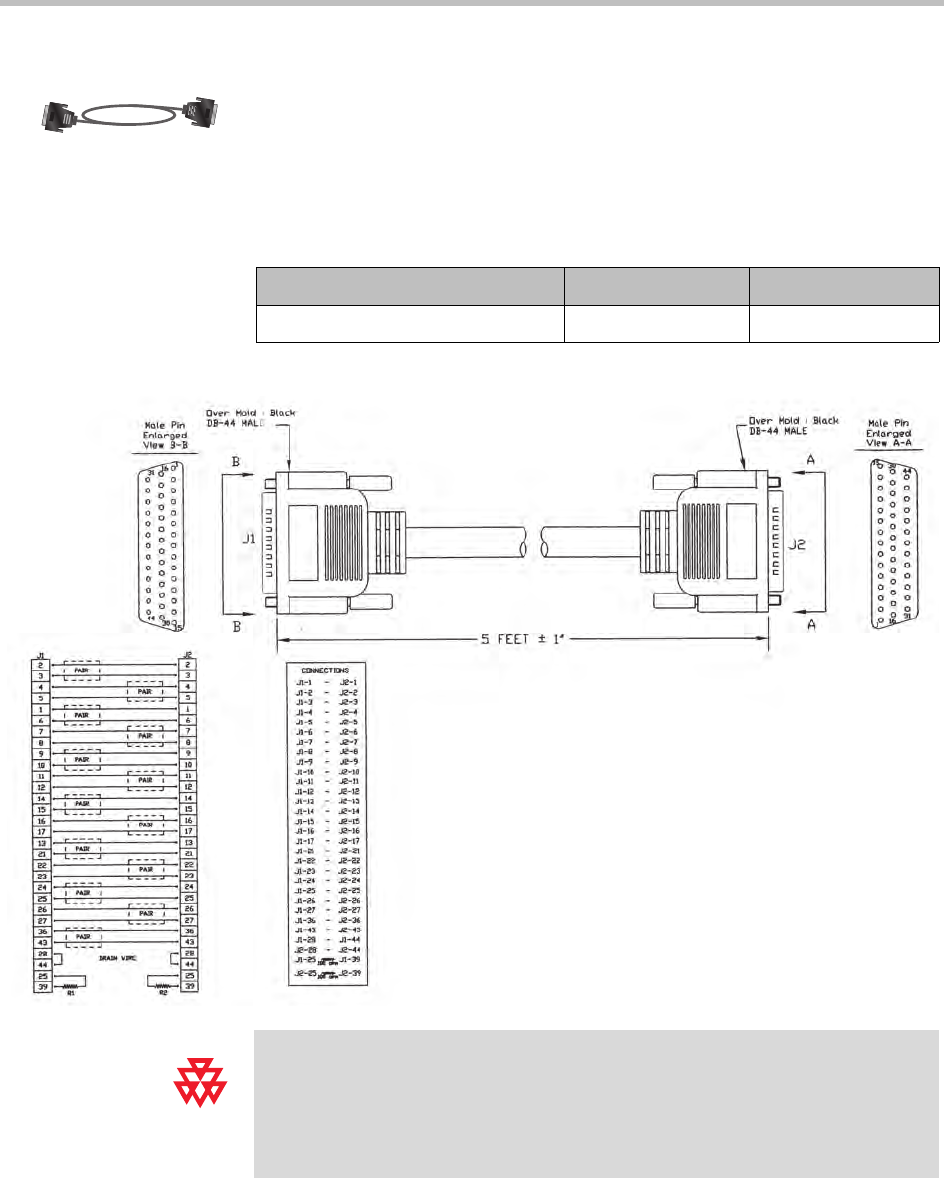

V.35 NIC Cable
This cable connects a Polycom HDX system to Ascend network equipment. It
is used with the V.35/RS-449/RS-530 serial adapter on page
V.35/RS-449/RS-530 Serial Adapter on page 2-7 to connect to network
equipment that has the HD-44 pin interface. It has HD-44 M connectors on
both ends and is used with Polycom HDX systems that have a serial network
interface card (NIC) installed.
Length Part Number RoHS Compliant
5 ft (1.65 m) 2457-10608-200 Yes
Drawings and part numbers are provided for reference only. Polycom claims no
responsibility or liability for the quality, performance, or reliability of cables based on
these reference drawings, other than cables provided by Polycom. Contact your
Polycom distributor or Polycom Custom/Vertical Products to order cables that meet
the appropriate manufacturing tolerances, quality, and performance parameters for
your application.
