Polycom, Inc. 2–1
2
Cables
This chapter includes information about cables that can be used with a
Polycom HDX system. Please note that drawings and part numbers are
provided for reference only. Compliance information is provided for the
Restriction of certain Hazardous Substances Directive (RoHS).
Network Cables

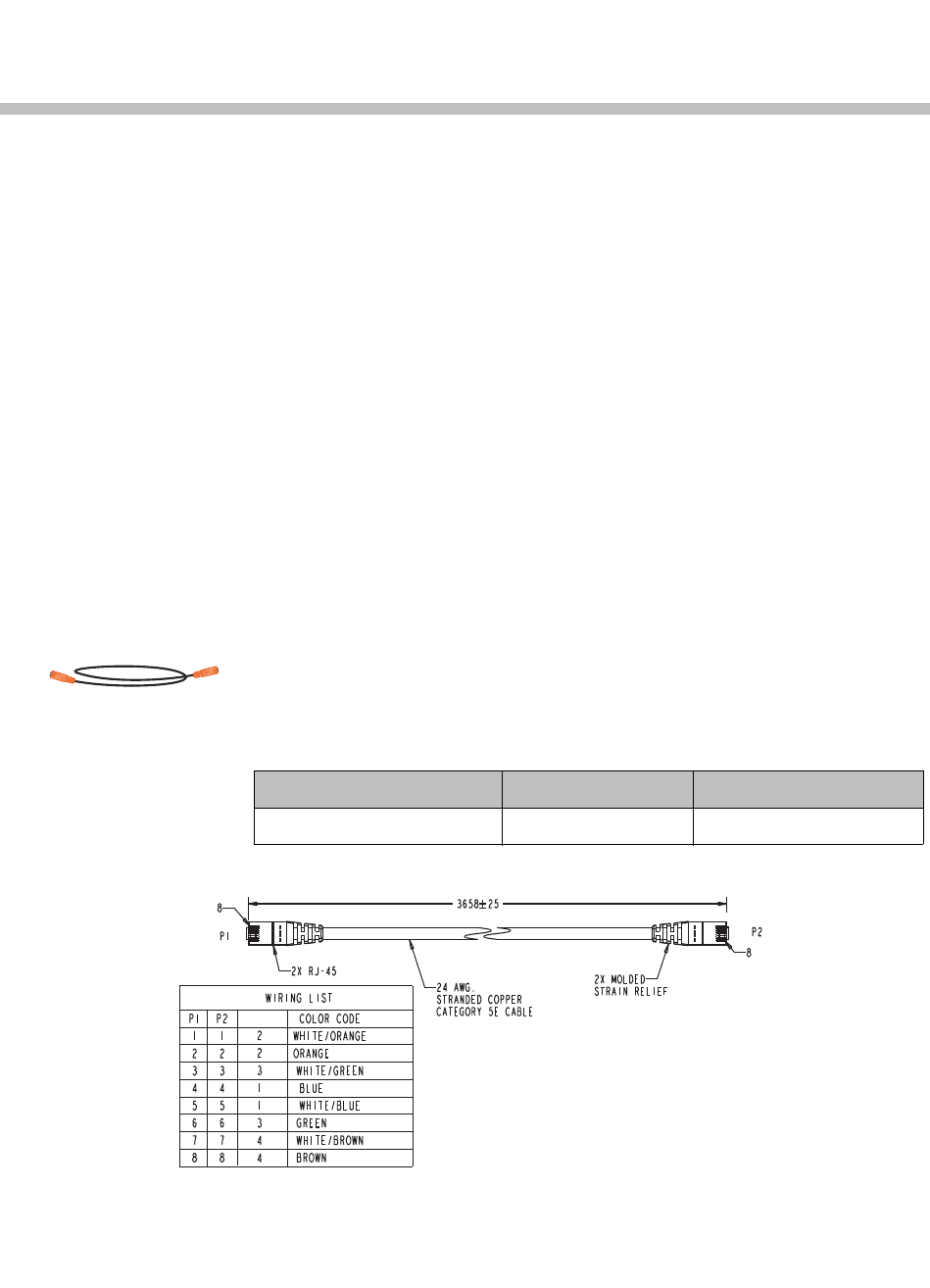

CAT 5e LAN Cable
This cable connects a Polycom HDX system to the LAN. It has orange RJ-45
connectors on both ends. It meets category 5e requirements and is wired
according to EIA/TIA-568B. The maximum approved length for this cable is
100 ft (30 m) on an 802 network.
Length Part Number RoHS Compliant
12 ft (3.6 m) 2457-23537-001 Yes
T568B Pair
T568B Pair
