Room Integration
Polycom, Inc. 1–25

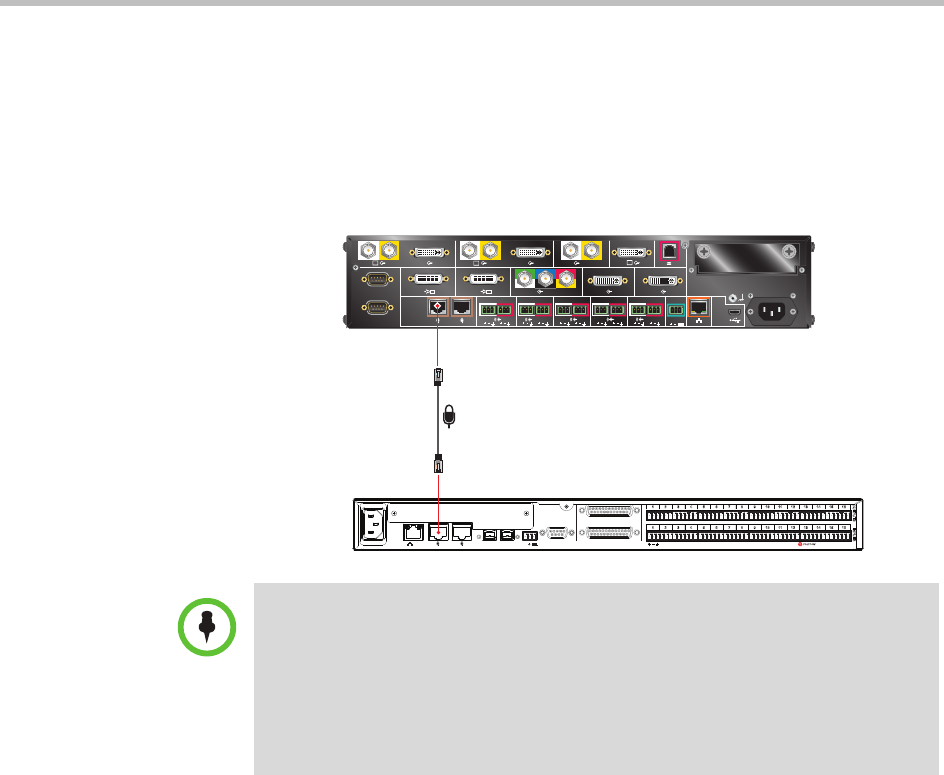

Connecting a Polycom SoundStructure C-Series Mixer to a Polycom HDX 9000
Series System
Connect a Polycom HDX system to the Polycom SoundStructure C-Series
mixer using:
• Polycom HDX Microphone Host Cable on page 2-41
2
1
100-240VAC 50/60Hz 4A
LAN
IR
5
4
3
VCR/DVD
1
4
Y
C
3
VCR/DVD
Y
C
VCR/DVD
3
4
3
VCR/DVD
1
2
Y
C
1
2
1
IOIOIO
YC
CAV 052-09
zH 06/05
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
REMOTE CONTROL 2
REMOTE CONTROL 1
IN OUT
1 2345678910111213141516
12345678910111213141516
S
TUPTUO
ST
UP
N
I
SoundStructure C16
TM
12V
The microphone input of the Polycom HDX 9000 Series system can support one
SoundStructure C-Series mixer that has up to four Polycom HDX microphones
connected to it. For more information about using the SoundStructure C-Series
mixer with a Polycom HDX system, refer to the SoundStructure C-Series
documentation on the Polycom web site.
You cannot connect both a SoundStructure C-Series mixer and a SoundStation IP
7000 phone to the Polycom HDX 9000 Series system at the same time.
