Specifications

Integrator’s Reference Manual for Polycom HDX Systems
1–24 Polycom, Inc.

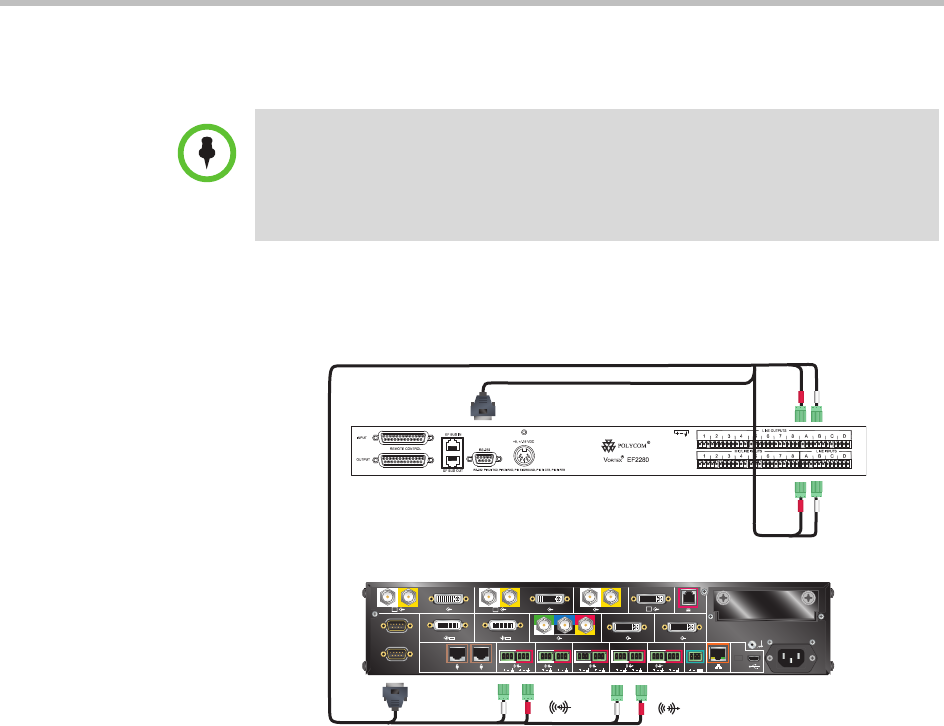

Connecting a Vortex® Mixer to a Polycom HDX 9000 Series System
Connect a Polycom HDX system to the Vortex mixer using:
• Vortex cable shown on page Vortex Cable on page 2-51
Polycom strongly recommends using Polycom InstantDesigner™ to get started with
your Vortex® mixer integration. InstantDesigner resolves many common issues
with connections and configuration settings.
To use a Polycom HDX system with audio input from a Vortex mixer, set the Input
Type to Line Input and disable Echo Canceller.
IOIOIO
A
B
A
B
2
1
100-240VAC 50/60Hz 4A
LAN
IR
5
4
3
VCR/DVD
1
4
Y
C
3
VCR/DVD
Y
C
VCR/DVD
3
4
3
VCR/DVD
1
2
Y
C
1
2
1
IOIOIO
YC
1
1
