Installation Instructions

Table Of Contents

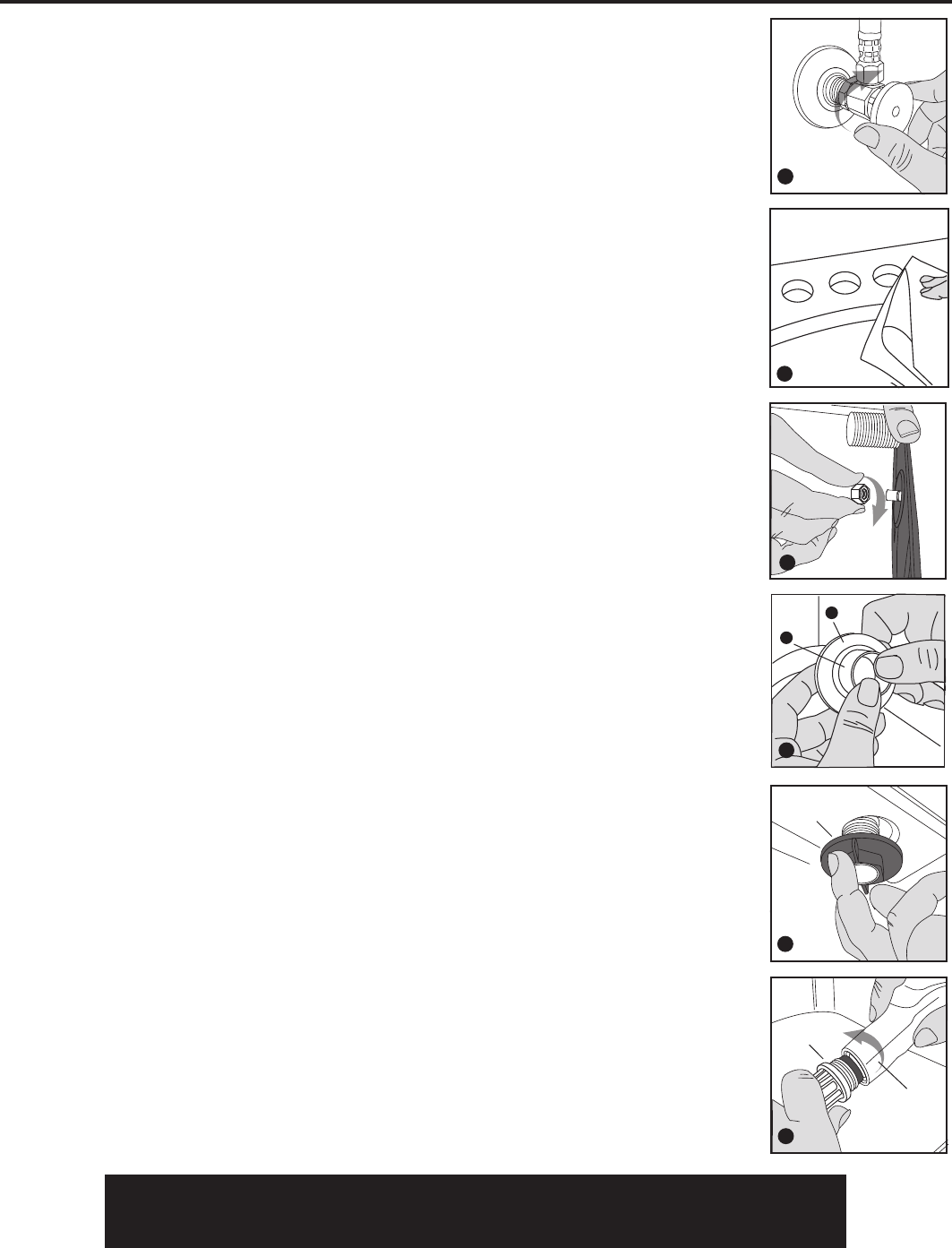

1. Shut off the water supply from the stop valves by turning the

handle clockwise and remove the existing faucet from the sink.

Preparation/Assembly (Steps 1-6)

Have an installation question? DO NOT RETURN THIS PRODUCT TO THE

STORE. Call toll free: 1-800-545-5230 Monday thru Friday 8:00am - 5:00pm CST

2. Remove any dirt or plumber’s putty from around the faucet

holes on the sink.

4 . Snap the grooved edges on the hose guide (22) for the side

spray into the guide flange (21). Place the unit into the fourth hole

in the sink, located on the right side of the faucet.

6. Thread the spray head (23) clockwise onto the spray hose (16)

and hand tighten.

5. From underneath the sink thread the plastic mounting nut (20)

onto the shank and hand tighten. NOTE: It is helpful to have a

second person hold the plastic shank in place while tightening the

mounting nut.

3. If you choose not to install the side spray, thread the sprayer outlet

cap (24) onto the sprayer outlet connection (25). Thread the sprayer

outlet cap (24) clockwise on the sprayer outlet connection (25) and

hand tighten. With a wrench tighten the cap an additional quarter

turn. Proceed to step 10.
