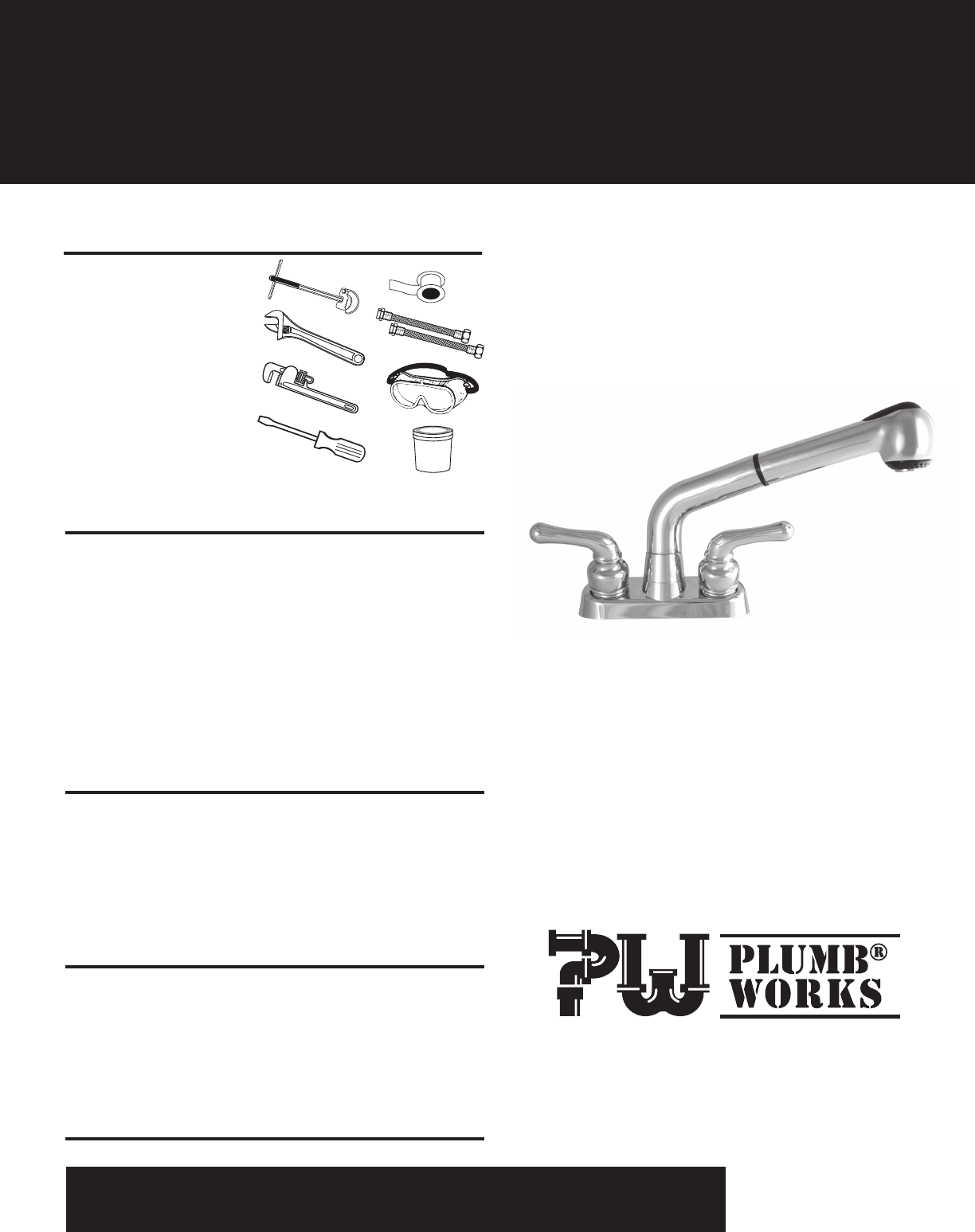

Installation Instructions

ManualsBrandsPlumb Works ManualsPlumbing2-Handle Laundry Pull-Out Faucet

Installation

For Models: 673-1395

- Basin Wrench

- Adjustable Wrench

- Pipe Wrench

- Screwdriver

- Thread Seal Tape

- Supply Lines

- Protective Goggles

- Plumbers Putty

Tools

Double Handle Laundry

Faucet With Pull-Out Spout

Plumbworks

faucets are crafted with the skill and

quality to last a lifetime. By following the instructions in

this booklet you will enjoy this quality item for years to

come. To clean, wipe gently with a soft damp cloth,

then wipe dry. Plumbworks

finishes are very durable.

However, to assure a long lasting luster, harsh abrasives

or polishes should be avoided.

Maintenance

Turn off the water before loosening any connections

or disassembling the faucet. When working underneath

a sink, protect your eyes from any dust or dirt by wearing

safety glasses.

Safety Tips

Most faucet problems can be fixed by tightening a nut or

connection or replacing a washer. Check supply line

connections for any leaks and tighten if necessary. Don’t

overtighten any supply line connections.

Important Points

Need Help?

Have an installation question? DO NOT RETURN THIS PRODUCT TO THE

STORE. Call toll free: 1-800-545-5230 Monday thru Friday 8:00am - 5:00pm CST

Summary of content (7 pages)

PAGE 1
Installation Tools - Basin Wrench Adjustable Wrench Pipe Wrench Screwdriver Thread Seal Tape Supply Lines Protective Goggles Plumbers Putty For Models: 673-1395 Double Handle Laundry Faucet With Pull-Out Spout Maintenance Plumbworks® faucets are crafted with the skill and quality to last a lifetime. By following the instructions in this booklet you will enjoy this quality item for years to come. To clean, wipe gently with a soft damp cloth, then wipe dry. Plumbworks® finishes are very durable.
PAGE 2
Parts List 2 1 1 Faucet Body 2 Spray Head 3 3 Plastic Mounting Nuts 4 Spray Hose 5 Balance Weight 4 5 Have an installation question? DO NOT RETURN THIS PRODUCT TO THE STORE. Call toll free: 1-800-545-5230 Monday thru Friday 8:00am - 5:00pm CST 2.
PAGE 3
Assembly (Steps 1-4) 1. Shut off the water supply from the stop valves by turning the handle clockwise and remove the existing faucet from the laundry sink. 1 2. Set the faucet body (1) into the mounting holes of the laundry sink. 1 2 3. Thread the plastic mounting nuts (3) onto the shanks and hand tighten. NOTE: It is helpful to have a second person hold the faucet body in place while tightening the mounting nuts.
PAGE 4
Assembly (Steps 5-8) 5. Insert the spray hose (4) through the spout channel on the faucet body until the spray head (2) sets into the spout end (see insert A). A 4 5 6. Loosen the top of the balance weight (5) by turning it counter-clockwise. 6 5 7. Slide the balance weight (5) onto the spray hose 7 8. A black washer should be attached to the nut on the spray hose shank. If not, first insert the washer into the nut, hollow end of washer first.
PAGE 5
Assembly (Steps 9-12) 9. Slide the balance weight (5) to the desired position on the spray hose. Turn the top of the balance weight clockwise to lock into position. 9 10. The balance weight (5) should be positioned just above the hose bend on the spray head side. Pull the spray hose (4) back and forth to check for smooth operation. SPRAY HEAD SIDE 4 5 10 11. Attach one end of the water supply lines onto the faucet shanks, hot water on the left and cold water on the right.
PAGE 6
Assembly (Step 13) 2 13. Remove the spray head (2) from the spray hose (4). Point the spray hose at the drain and then turn on the faucet, both hot and cold. Run fully open for at least a minute; this will flush out any sediment that may have been dislodged during installation. While the water is still running, check for leaks at the spray hose connection underneath the faucet deck and at all drainage connections. If leaks are found, tighten slightly until the leak stops.
PAGE 7
Troubleshooting If a faucet installation doesn’t deliver water properly or leaks, finding the cause and fixing it can be easy. Problem: Cause: Uneven or low water flow. Aerator assembly is dirty or improperly installed. Action: Locate the notches on the side of the aerator. The notches will allow you to remove the aerator without damaging it. Problem: Water leaks from underneath the handle body. Cause: Place an adjustable Remove any loose dirt or debris from wrench over the notches.
