WGS3 Layer 3 Switch User’s Manual
- 89 -

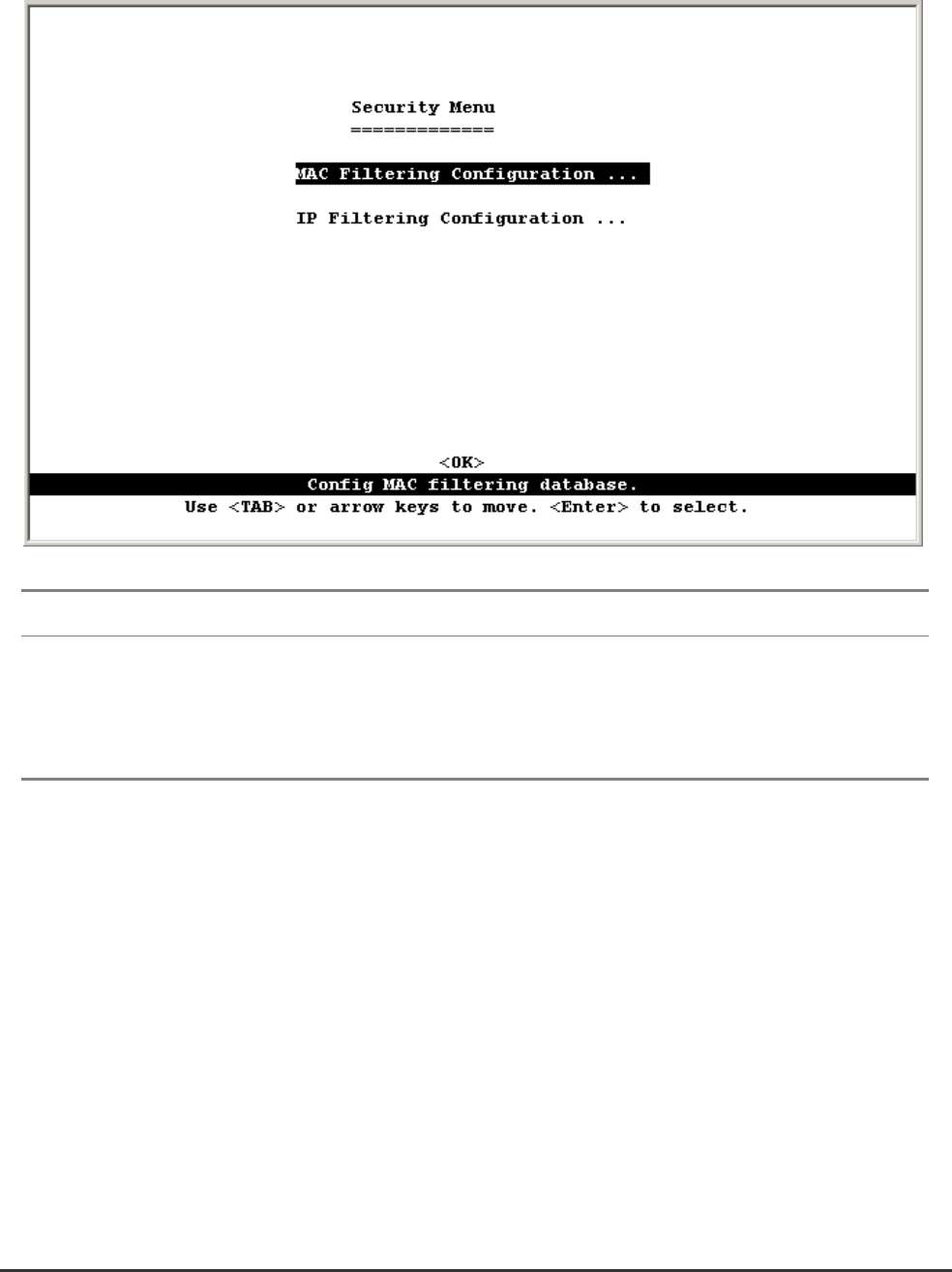

4.5.7 Security Menu
The Security menu contains options to filter specified MAC or IP addresses. These menu options are
described in the following sections.
Menu Description
MAC Filtering
Configuration
Specifies the source or destination MAC address for any traffic to be filtered from
the switch for security reasons.
IP Filtering
Configuration *
Specifies the source or destination IP address for any traffic to be filtered from the
switch for security reasons.
* This menu item is only displayed for multilayer mode.
