WGS3 Layer 3 Switch User’s Manual
- 75 -
4.5.6.2.1 Setting the ARP Timeout

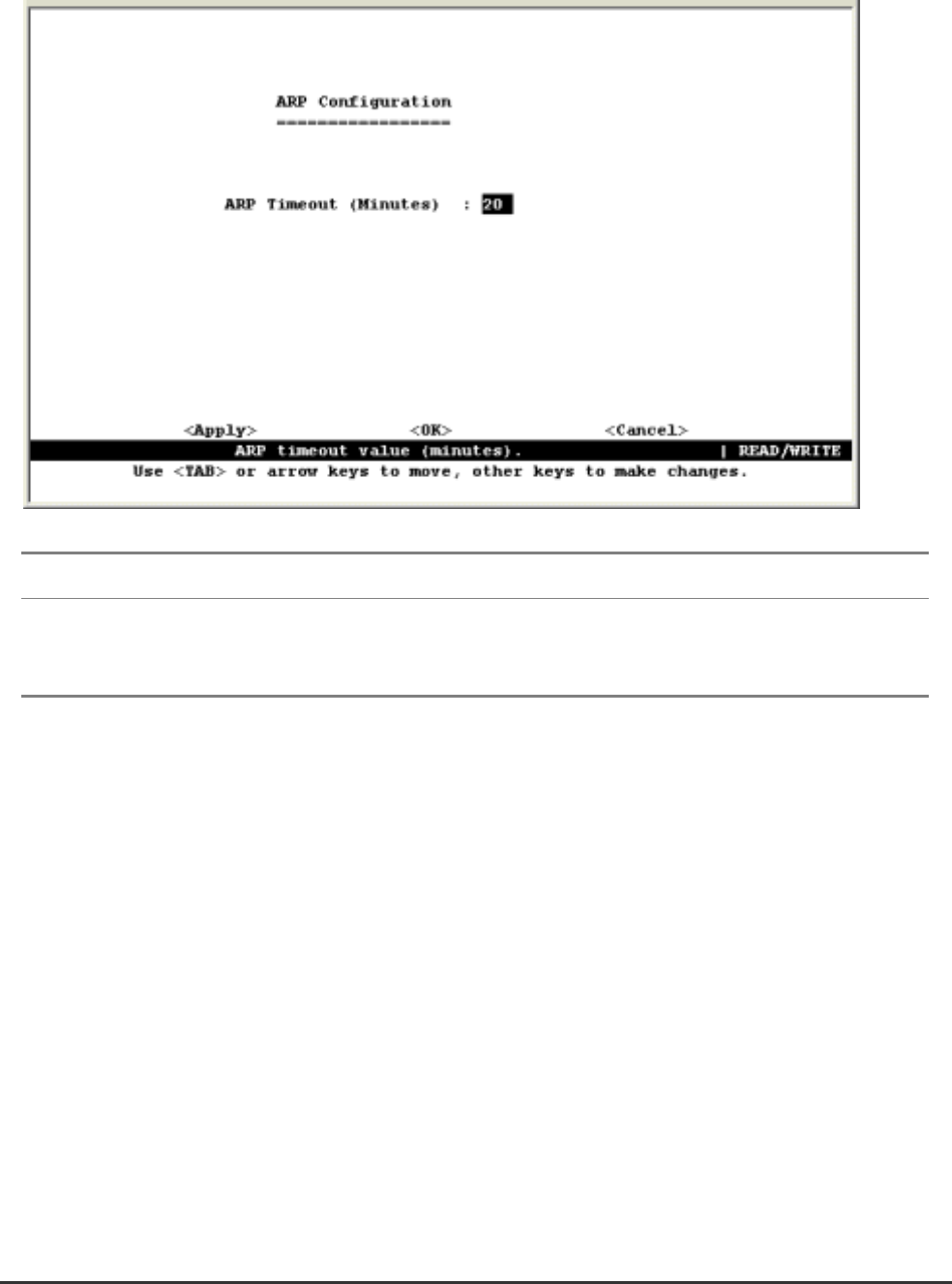

You can use the following configuration screen to modify the aging time for dynamically learned entries in
the ARP cache.
Parameter Default Description
ARP Timeout 20 minutes The time that dynamically learned entries are retained in the ARP cache.
Range: 0-999 minutes, where 0 disables aging
