WGS3 Layer 3 Switch User’s Manual
- 63 -
4.5.6.1.1 Adding an IP Interface

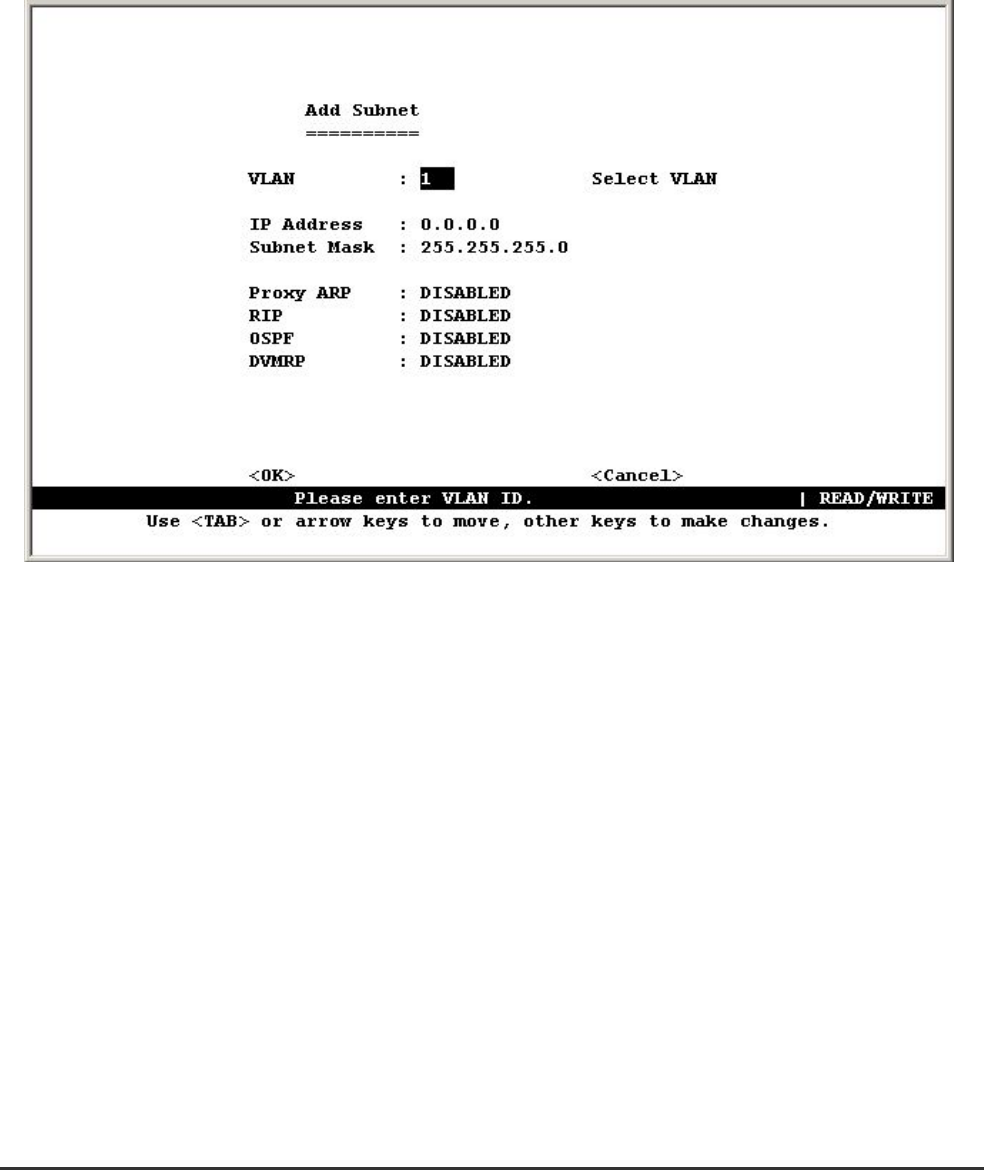

Select <Add> on the Subnet Configuration menu to add an IP interface. When the Add Subnet screen
opens as shown below, assign a VLAN group to this interface, configure the IP address, and then enable
the required routing protocols. You can specify a VLAN that has already been configured on this switch
or press “Select” to open the Port Group Configuration screen and create or modify a VLAN group.
To configure the unicast or multicast routing protocols, select the IP address for a specific interface from
the Subnet Configuration menu, and then select “Advanced” configuration from the Modify Subnet
screen.
