WGS3 Layer 3 Switch User’s Manual
- 61 -

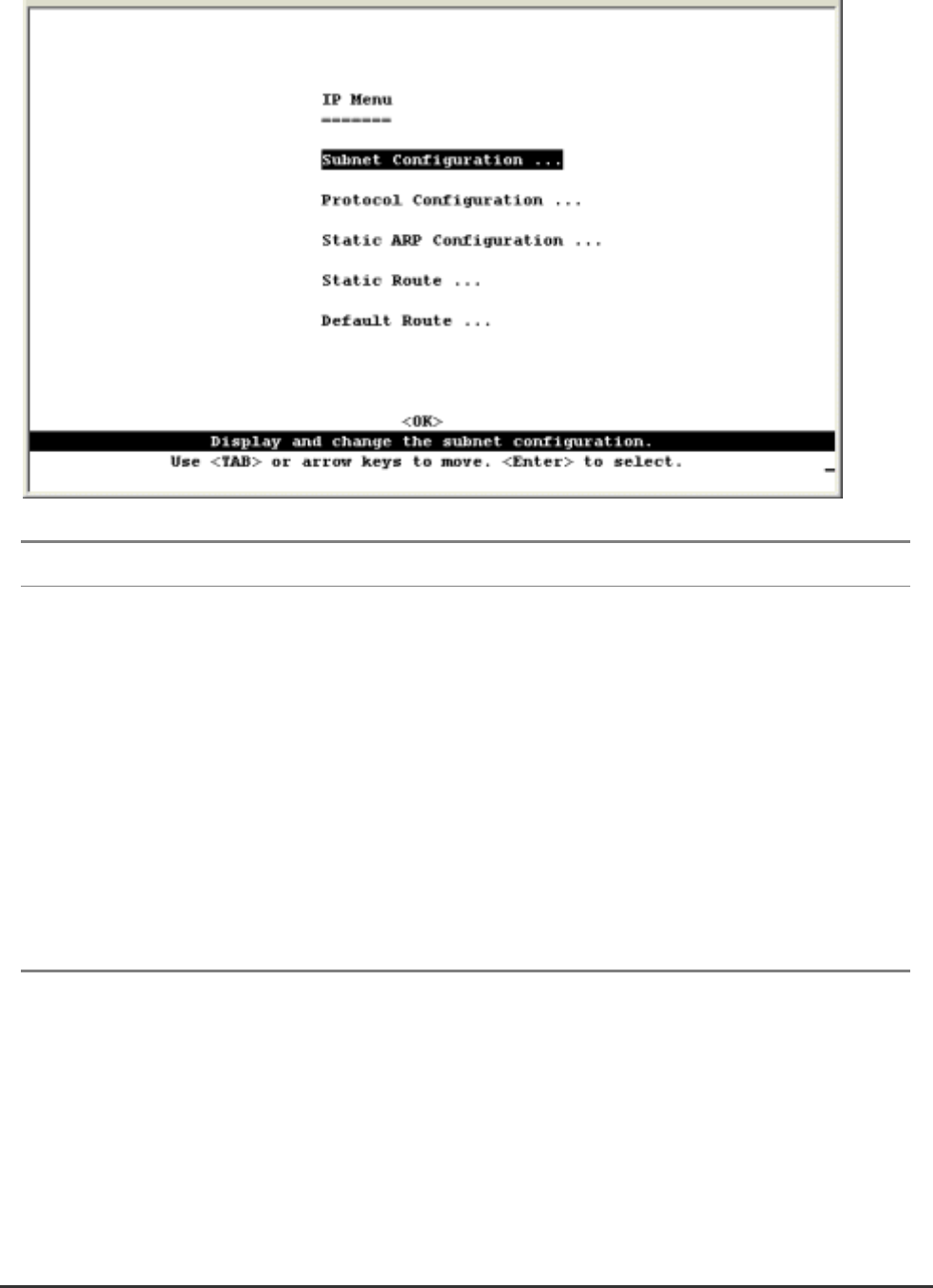

4.5.1 Setting the System Operation Mode), the IP Menu will be displayed. Use this menu to configure the
IP subnets for each VLAN on your switch, the unicast and multicast routing protocols, static ARP entries,
static IP routes, and the default IP Route.
Parameter Description
Subnet Configuration Specifies the IP interface for VLANs configured on this switch, including the
subnet address and routing
Protocols
Protocol Configuration Configures ARP timeout, enables Proxy ARP, sets the preferred servers for
BOOTP/DHCP Relay, as well as enabling/configuring unicast and multicast
protocols globally for this switch.
Static ARP Configuration Used to map an IP address to a specific physical MAC address
Static Route Used to configure static routes to other IP networks, subnetworks, or hosts.
Default Route Defines the router to which this switch will forward all traffic for unknown
networks.
