WGS3 Layer 3 Switch User’s Manual
- 52 -
4.5.4 Configuring Virtual LANs
You can use the VLAN configuration menu to assign any port on the switch to any of up to 256 Virtual
LAN groups. In conventional networks with routers, broadcast traffic is split up into separate domains.
Switches do not inherently support broadcast domains. This can lead to broadcast storms in large
networks that handle traffic such as IPX or NetBEUI. By using IEEE 802.1Q compliant VLANs, you can
organize any group of network nodes into separate broadcast domains, confining broadcast traffic to the
originating group. This also provides a more secure and cleaner network environment. For more
information on how to use VLANs, see “6.3 Virtual LANs”. The VLAN configuration screens are described
in the following sections.

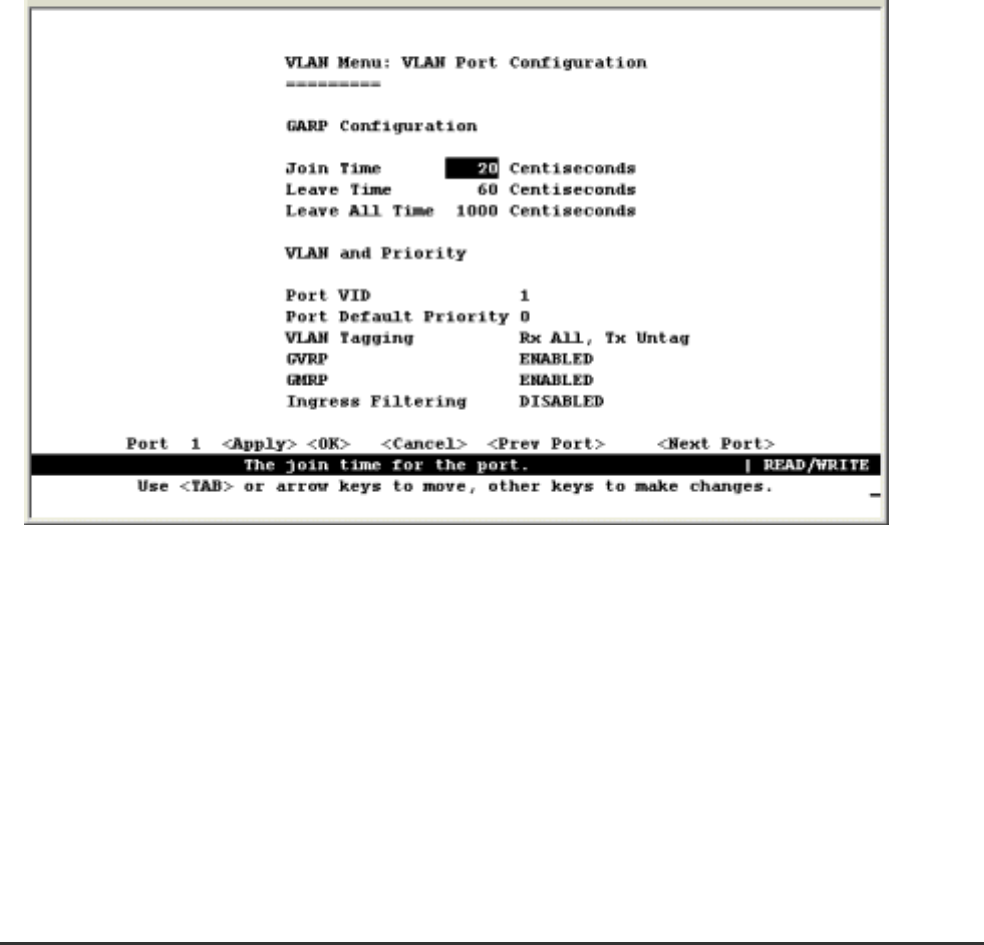

4.5.4.1 VLAN Port Configuration
You can use the VLAN Port Configuration screen to configure GARP, the default VLAN identifier, default
port priority, VLAN tagging on the attached link, GVRP and GMRP status, and filtering of incoming
frames for VLAN groups to which this port does not belong.
