WGS3 Layer 3 Switch User’s Manual
- 47 -
4.5.3.1 Configuring Global Bridge Settings

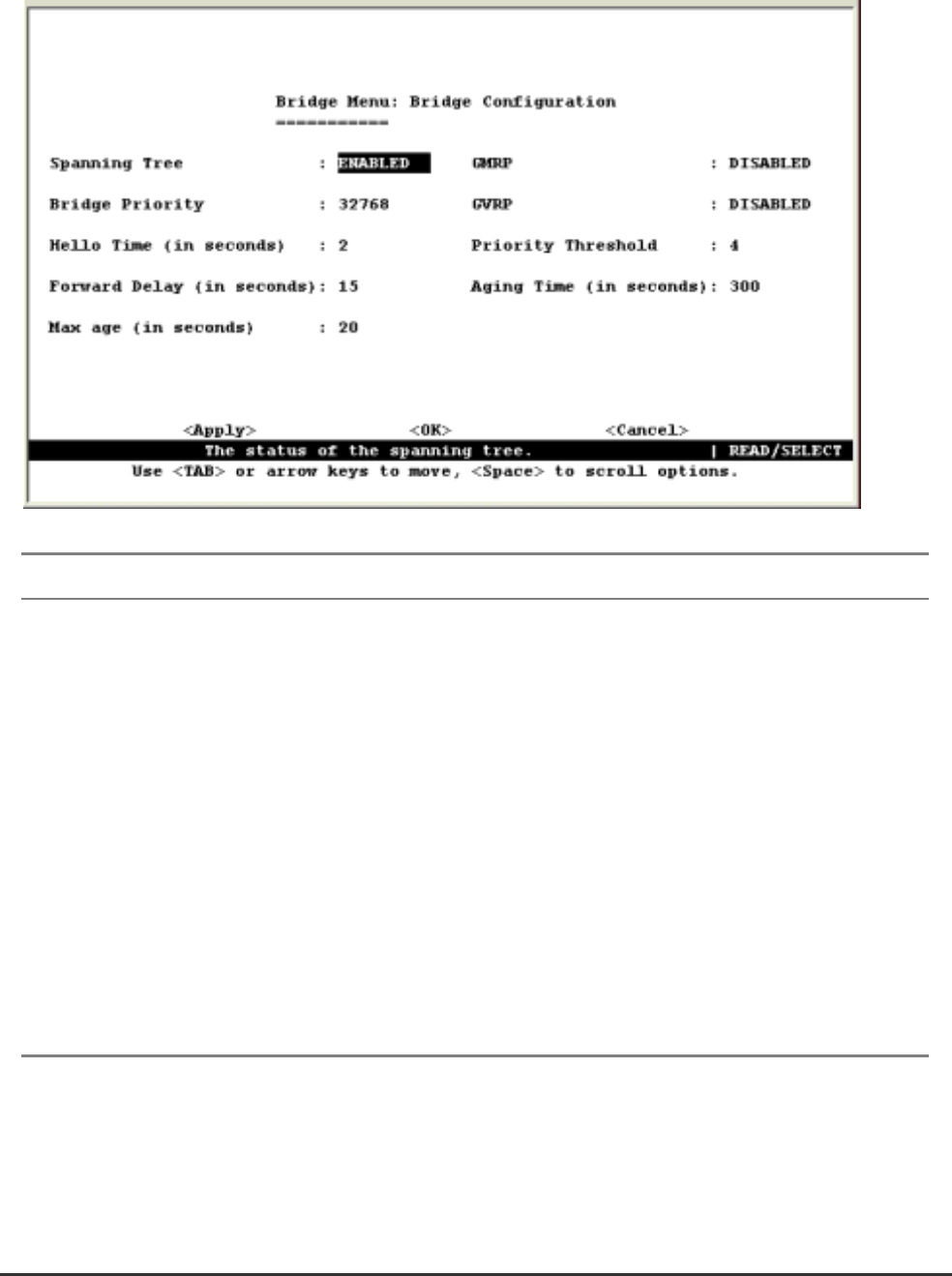

The following figure and table describe bridge configuration for STA, GMRP, GVRP, priority threshold,
and address aging time.
Parameter Default Description
Spanning Tree Enabled Enable this parameter to participate in a STA compliant network.
Bridge Priority 32,768 Bridge priority is used in selecting the root device, root port, and
designated port. The device with the highest priority becomes the STA
root device. However, if all devices have the same priority, the device
with the lowest MAC address will then become the root device.
Enter a value from 0 - 65535.
Remember that the lower the numeric value, the higher the priority.
Hello Time
2 Time interval (in seconds) at which the root device transmits a
configuration message.
The minimum value is 1.
The maximum value is the lower of 10 or
[(Max. Message Age / 2) -1].
