WGS3 Layer 3 Switch User’s Manual
- 45 -

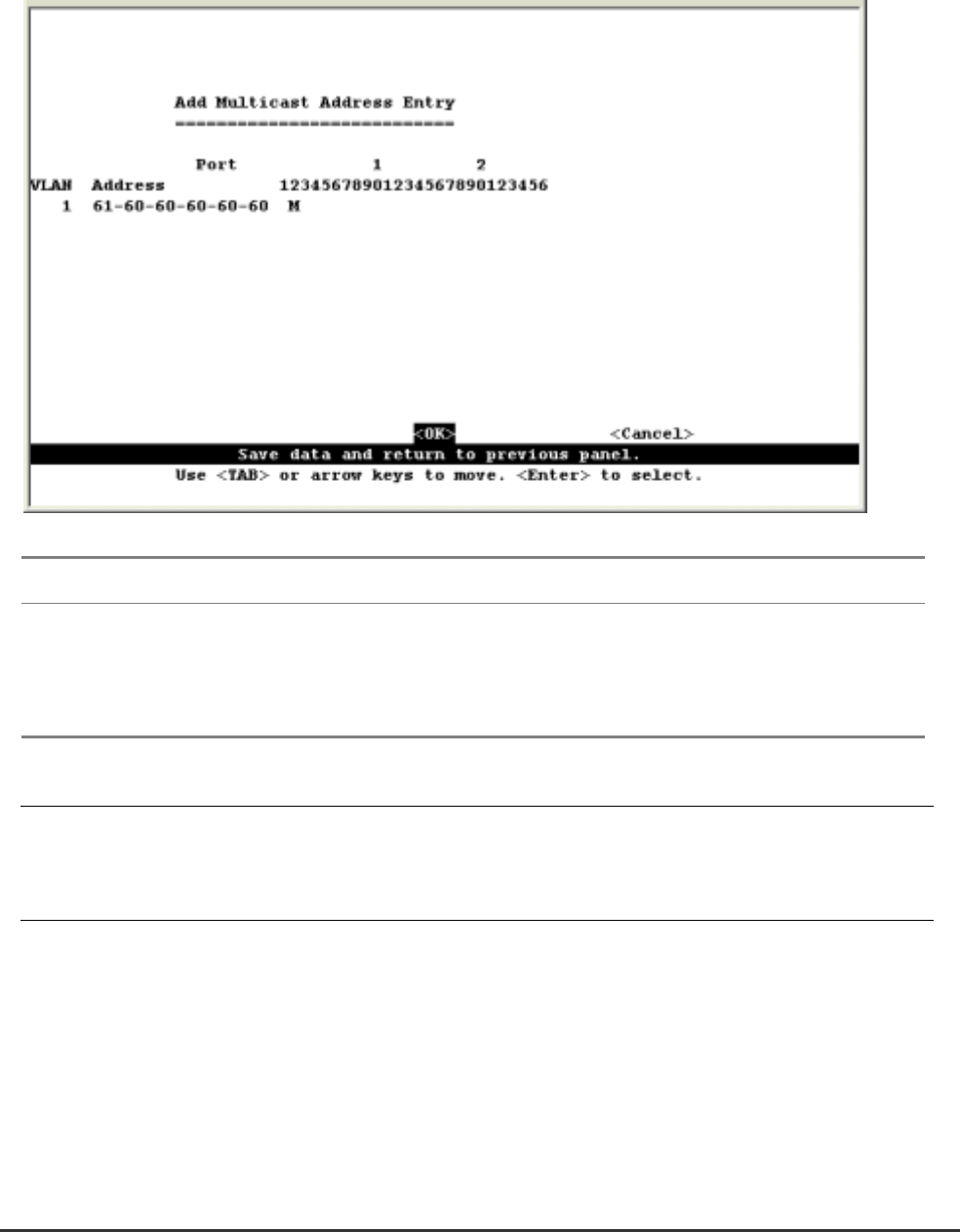

4.5.2.5 Configuring the Static Multicast Address Table
The Static Multicast Address Table can be used to assign a destination MAC address (and the
corresponding ports) to the VLAN group used for a specific multicast service. Static multicast addresses
are never aged out, and traffic with these addresses can only be forwarded to ports specified in this
table.
Parameter Description
VLAN The VLAN corresponding to this multicast service.
Address The destination MAC address for a multicast service.
Port The ports to which this multicast traffic can be forwarded.
NOTE: To assign a destination MAC address to one or more ports, use <Add>. To delete or modify an
address, highlight it with the cursor and press Enter. To scroll through the address table, use
the <Next Page> and <Prev Page> buttons. To display a specific page, set the page number in
the Page field and then press <Apply>.
