WGS3 Layer 3 Switch User’s Manual
- 44 -
4.5.2.4 Configuring the Static Unicast Address Table
The Static Unicast Address Table can be used to assign the MAC address for a host device to a specific
port on this switch. Static unicast addresses are never aged out, and cannot be learned on another port.
If any packets with a source address specified in this table enter another port, they will be dropped. The

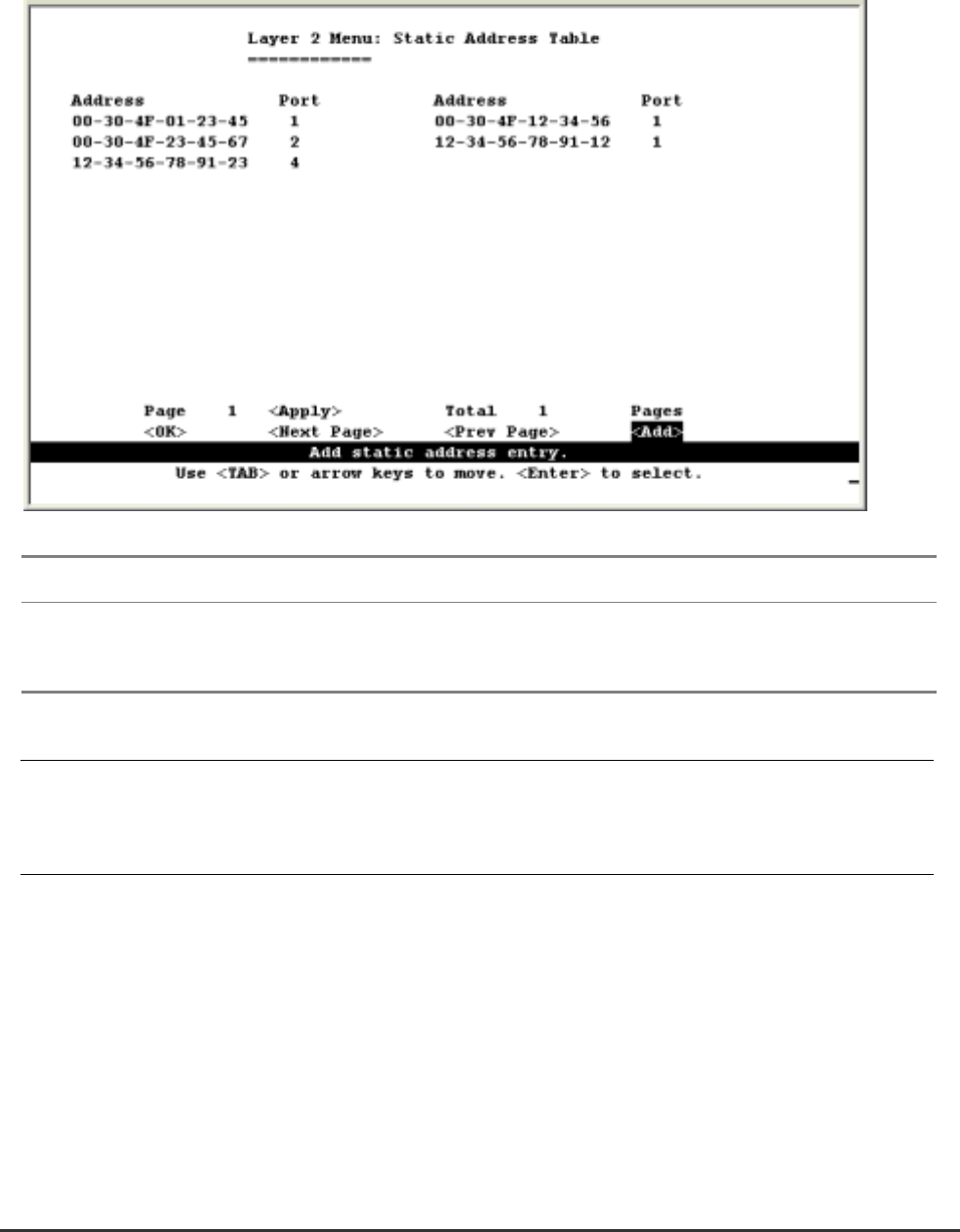

Static Unicast Address Table is described in the following figure and table.
Parameter Description
Address The MAC address of a host device attached to this switch.
Port The switch port the host device is attached to.
NOTE: To assign a MAC address to a specific port, use <Add>. To delete or modify an address,
highlight it with the cursor and press Enter. To scroll through the address table, use the <Next
Page> and <Prev Page> buttons. To display a specific page, set the page number in the Page
field and then press <Apply>.
