WGS3 Layer 3 Switch User’s Manual
- 39 -

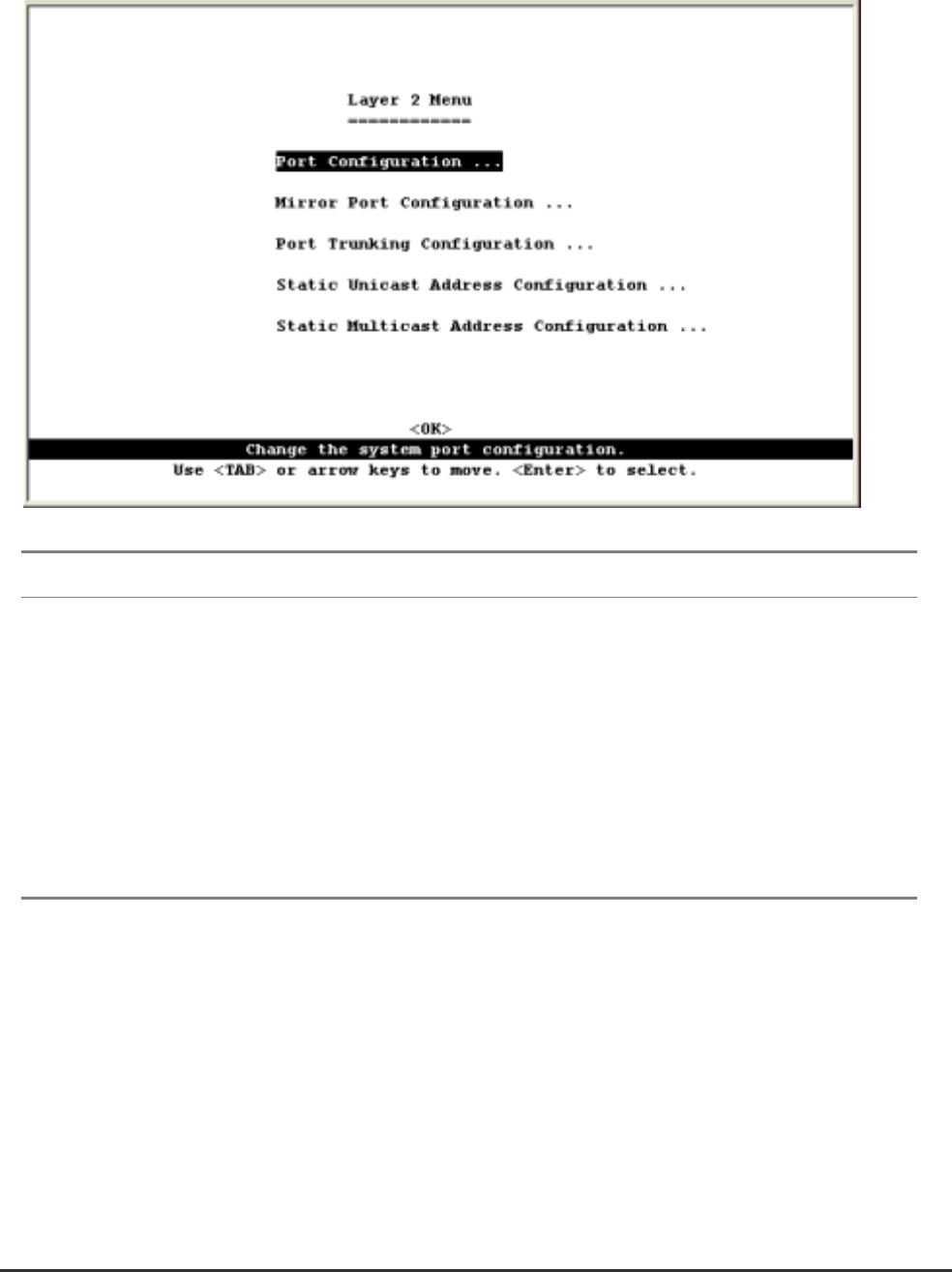

4.5.2 Layer 2 Menu
The Layer 2 menu contains options for port configuration, port mirroring, port trunking and static
unicast/multicast address configuration. These menu options are described in the following sections.
Menu Description
Port Configuration Enables any port, enables/disables flow control, and sets
communication mode to auto-negotiation, full duplex or half duplex.
Mirror Port Configuration Sets the source and target ports for mirroring.
Port Trunking Configuration Specifies ports to group into aggregate trunks.
Static Unicast Address
Configuration
Used to manually configure host MAC addresses in the unicast table.
Static Multicast Address
Configuration
Used to manually configure host MAC addresses in the multicast
table.
